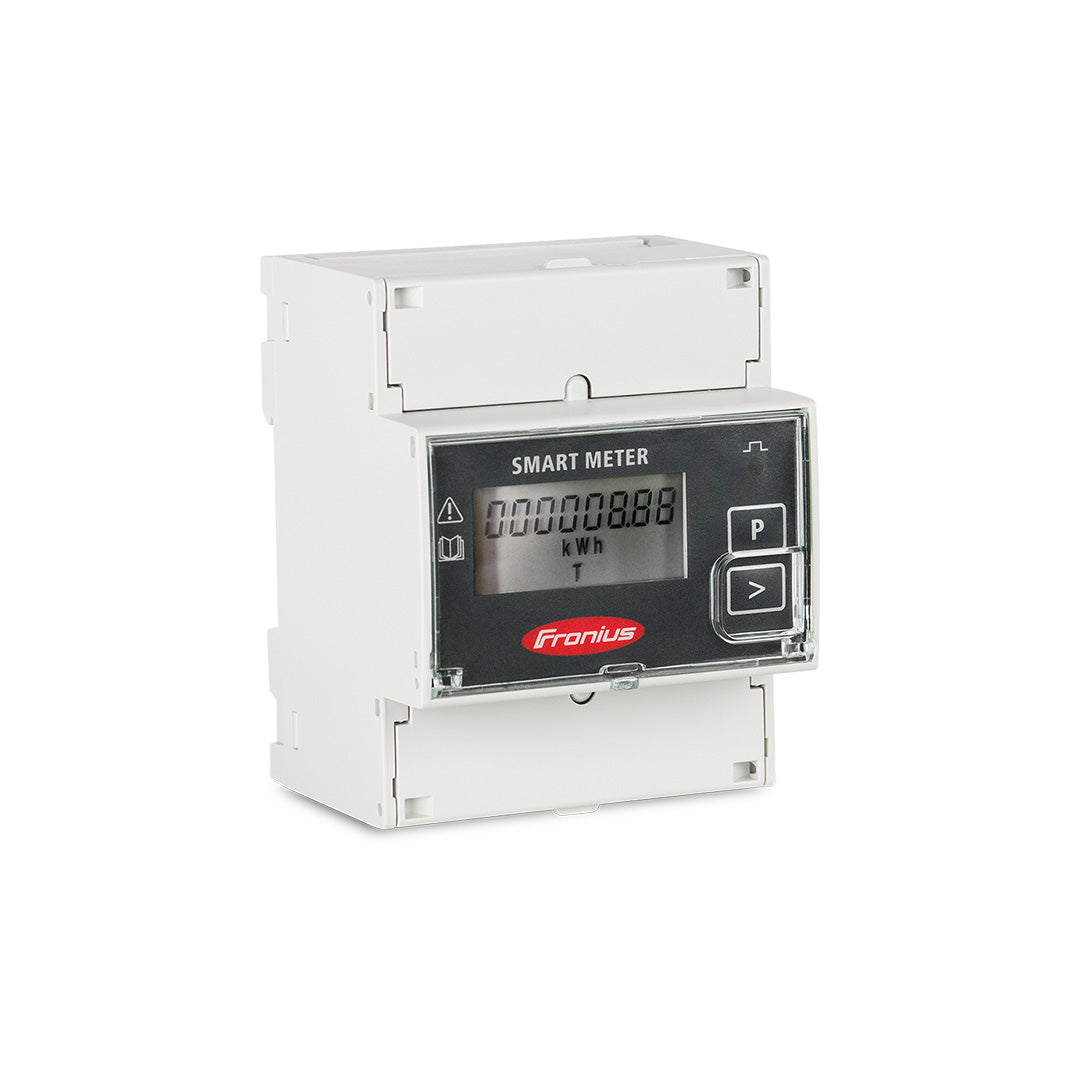

Fronius Smart Meter 63A Three Phase - SMARTM63A-3

Overview

The Fronius 63 Amp 3 Phase Smart Meter is a bidirectional energy meter designed to optimise self-consumption and accurately record a site’s electrical load profile across all three phases. When combined with Fronius Solar.web, it provides a clear and detailed overview of power generation, consumption, and grid interaction.

As part of the Fronius Energy Package storage solution, the Smart Meter enables perfectly coordinated energy flow management, supporting intelligent control of PV generation, battery storage, and household or site loads.

Key Features

Bidirectional Energy Measurement

• Measures both grid import and export across three phases
• Provides accurate data for self-consumption optimisation

Energy Management & Monitoring

• Records detailed load curves for comprehensive energy analysis
• Visualises consumption and generation data via Fronius Solar.web

Wide Inverter Compatibility

• Ideal for use with Fronius Symo, Symo Hybrid, Galvo, Primo, Eco, and Datamanager 2.0
• Compatible with all inverters featuring an RS485 (Modbus RTU) interface
• Works with Fronius Datamanager 2.0 for IG Plus inverters
• Supports Fronius Datamanager Box 2.0 for Agilo inverters

Flexible Installation

• Three-phase, 63 Amp configuration
• Can be retrofitted to existing Fronius systems
• Designed for straightforward integration into new or existing installations
