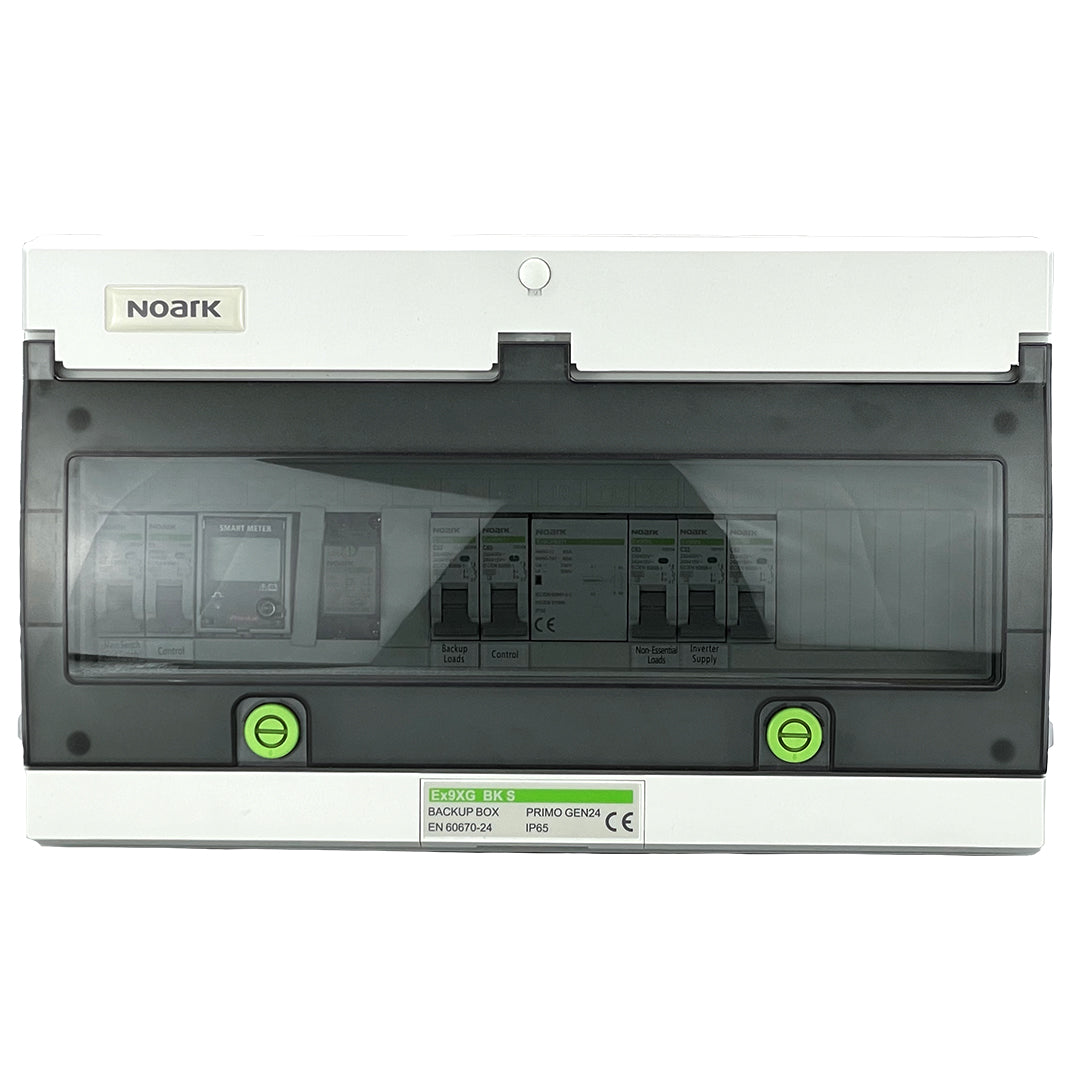

Noark Ex9BK-S Single Phase IP65 Backup Box For Fronius Primo GEN24 - 981001

Overview

Special Order – Lead Time Approx. 1 Week

The Noark Backup Box for Fronius GEN24 Plus Hybrid Inverters is a robust, fully integrated backup power solution designed to maintain electricity supply during grid outages. Engineered specifically for use with Fronius Primo GEN24 Plus hybrid inverters, this backup box enables automatic isolation and seamless operation of essential loads when mains power is unavailable.

With a durable IP65-rated enclosure, high current capability, and factory-assembled internal components, the Noark Backup Box offers a reliable and installer-friendly solution for residential and light commercial backup power systems.

Key Features

Complete Backup Power Solution

• Provides full backup functionality for compatible Fronius GEN24 Plus inverters
• Automatically manages essential and non-essential circuits during outages
• Ensures continuity of power for critical loads

Fully Assembled & Pre-Wired

• Supplied fully assembled and factory wired
• Includes Fronius Smart Meter 63A (single phase)
• Integrated 63A main switch, contactor, relay, and MCBs
• Dedicated MCBs for essential and non-essential circuits
• 32A inverter output MCB pre-installed

Inverter Compatibility

• Designed for Fronius Primo GEN24 Plus models:
• 3.0 / 3.6 / 4.0 / 4.6 / 5.0 / 6.0 / 8.0 / 10.0
• For Primo GEN24 8.0 or 10.0 Plus, a single pole 63A MCB is required to replace the factory-installed 32A inverter output MCB
• Additional 63A MCB supplied for higher power models

Electrical & Mechanical Specifications

• Rated voltage: 230V single phase
• Operating frequency: 50 / 60 Hz
• Maximum current: 63A
• Ingress protection: IP65
• Installation: Wall mounted
• Weight: 6.5 kg
• Dimensions (L × W × H): 380 × 230 × 125 mm

Installation Benefits

• Quick and simple installation
• Reduced on-site wiring and commissioning time
• Designed to integrate cleanly with Fronius GEN24 Plus systems
