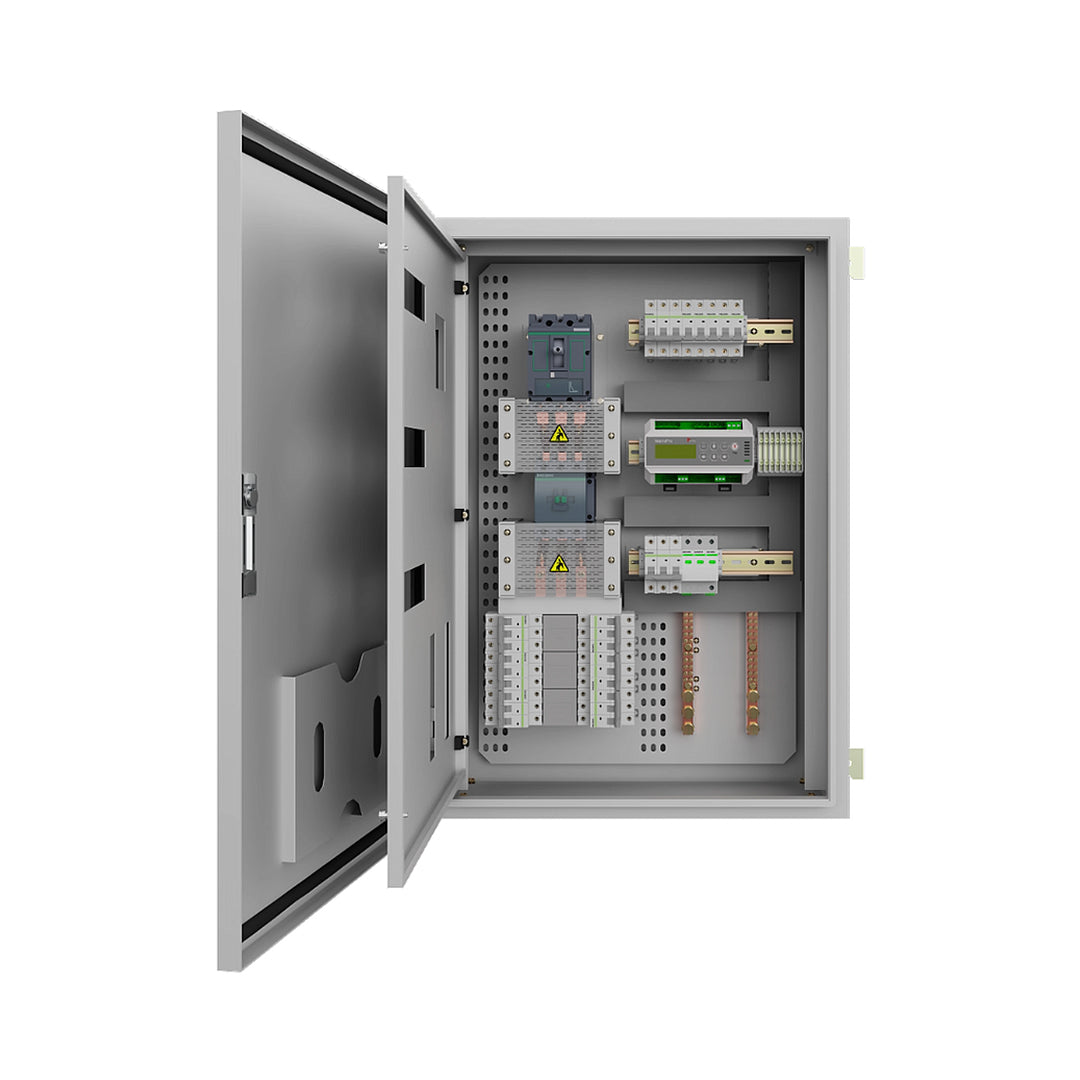

Noark Ex9PVDB-100 Grid Protection Board 100A / 30-65 kVA - 991001

Overview

The Noark 100 Amp Network Protection Board (30–65kVA) is a compact, fully engineered grid protection solution designed for small commercial solar PV installations. It provides compliant network interface protection while simplifying DNSP approvals and reducing on-site commissioning time.

Designed, engineered and assembled in Australia, this board is delivered pre-programmed with DNSP configuration settings and integrates trusted protection components within a robust IP65 enclosure. It is ideally suited for small commercial solar systems where space, compliance and reliability are critical.

Key Features

Commercial Solar System Protection

• Designed for PV systems under 60kVA
• Provides compliant grid interface and protection
• Streamlines DNSP approval processes

Pre-Configured & Engineered Solution

• Pre-programmed with DNSP-specific protection settings
• Designed and assembled in Australia
• Minimises installation and commissioning time

Switching & Protection Components

• 100A main circuit breaker
• 125A (AC-1 rated) contactor for reliable grid disconnection
• MCB chassis supports up to 4 inverter outputs
• Maximum inverter output of 63A per MCB

Advanced Protection Relay

• Integrated ComAp MainsPro protection relay
• Accurate monitoring of grid parameters
• Fast and reliable disconnection during grid events

Compact & Robust Enclosure

• IP65 rated enclosure for indoor or outdoor use
• 1.5mm powder-coated mild steel construction
• Dimensions: 850mm H x 600mm W x 250mm D

Order Configuration Requirement

• Inverter make and model(s) must be specified at time of order
• DNSP details required for correct breaker selection and programming
• Ensures the board is delivered fully site-ready
