Noark Ex9PVDB-200 Grid Protection Board 200A / 60-125 kVA - 991002

Noark Ex9PVDB-200 Grid Protection Board 200A / 60-125 kVA - 991002

Noark Ex9Pvdb 200 Grid Protection Board 200A 60 125 Kva 991002

Noark 200 Amp Network Protection Board 60-125kVA

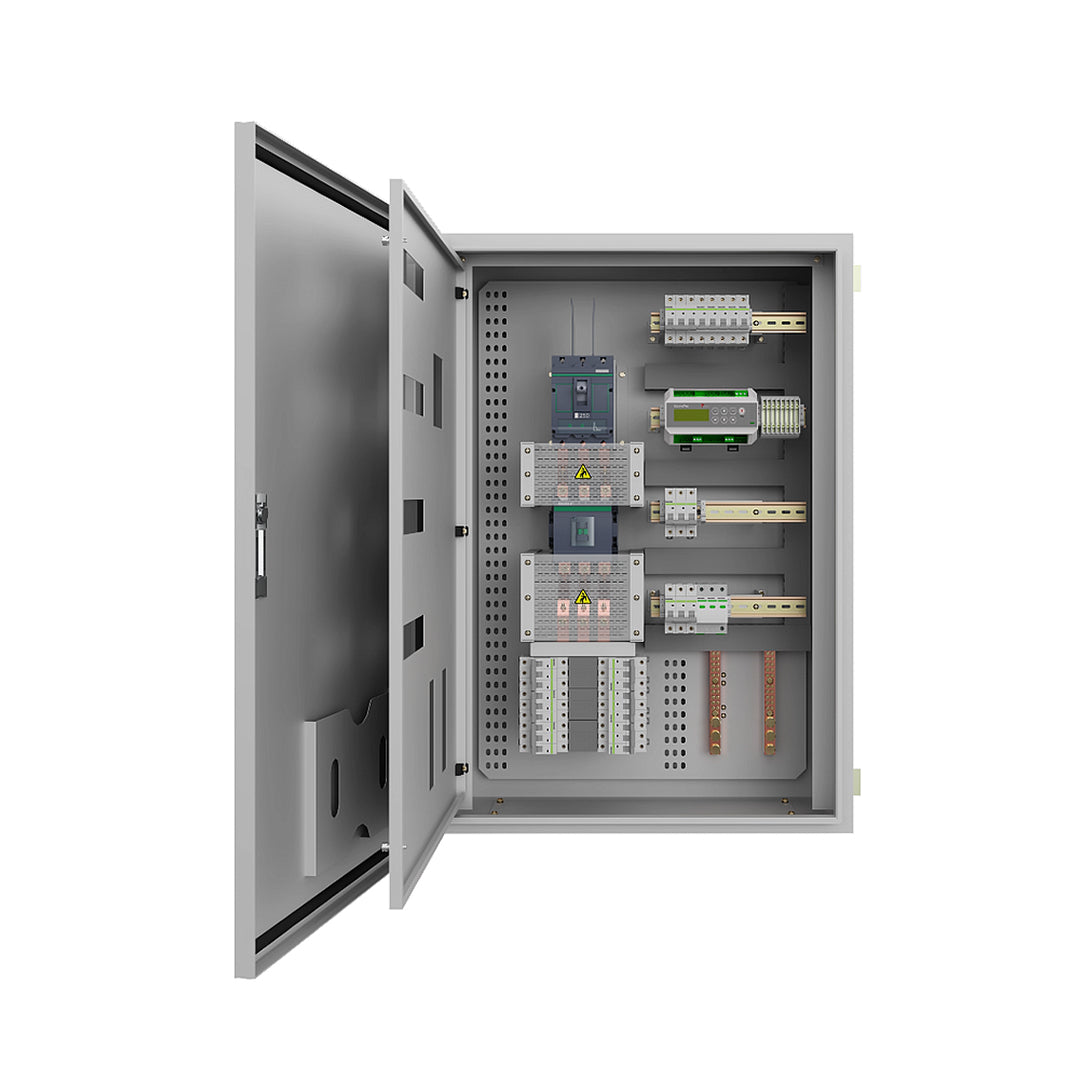

Board Layout:

Schematic:

Please Note: Must specify the inverter make/model(s) along with the DNSP details at the time of order so the appropriate breakers and programming can be pre-configured.

Key Features

• Simple Engineered Solution For Commercial Solar System
• Pre-programmed With DNSP Configuration Settings
• Designed, Engineered And Assembled In Australia
• Comply with IEC 61439
• Suits PV Systems MCB Chassis suits up to 6 units (Max inverter output 63A when using multiple inverters)
• 200A Main Circuit Breaker
• 215A (AC-1) contactor
• ComAp MainsPro protection relay
• IP65 1.5mm powder coated mild steel enclosure
• 1000mm H x 600mm W x 250mm D
