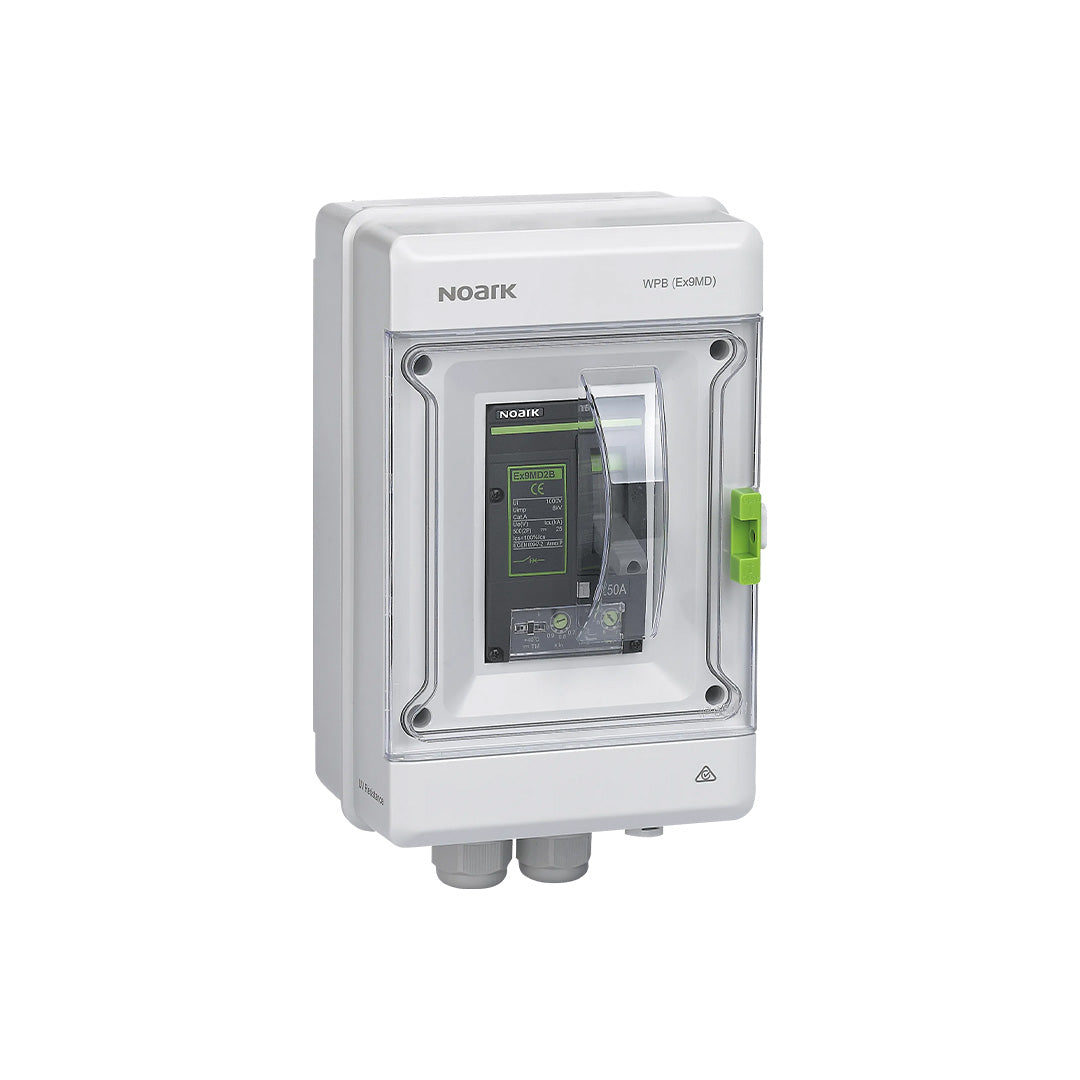

Noark IP65 Waterproof Enclosure for Ex9MD Size 1-2 MCCB 80A-250A - 850771

Overview

The Noark 2P MCCB Waterproof Enclosure – IP65NW (WPB) is designed specifically to house Noark EX9MD DC moulded case circuit breakers in demanding environments. The “NW” (No Wire) design ensures there is no electrical connection between the enclosure and the outside, enhancing installation safety.

With an IP65 ingress protection rating, the enclosure provides excellent resistance against dust and water, making it ideal for outdoor battery systems and harsh electrical installations. The enclosure is supplied as a complete kit to simplify installation.

Key Features

Environmental Protection

• IP65-rated protection against dust and water ingress
• UV resistant enclosure material for outdoor durability
• Ventilation plug included to manage internal condensation

MCCB Compatibility

• Designed for Noark EX9MD MCCBs, frame size 1–2
• Supports 2-pole MCCBs from 80A to 250A

Included Installation Accessories

• 4 × M25 cable glands
• Mounting brackets and fixing screws
• Supplied ready for fast and straightforward installation

Compatible MCCB Models (Sold Separately)

• 80A 500VDC 2P – 852894 (Ex9MD1B)
• 100A 500VDC 2P – 852895 (Ex9MD1B)
• 125A 500VDC 2P – 852896 (Ex9MD1B)
• 160A 500VDC 2P – 852899 (Ex9MD2B)
• 180A 500VDC 2P – 852900 (Ex9MD2B)
• 200A 500VDC 2P – 852901 (Ex9MD2B)
• 250A 500VDC 2P – 852902 (Ex9MD2B)
