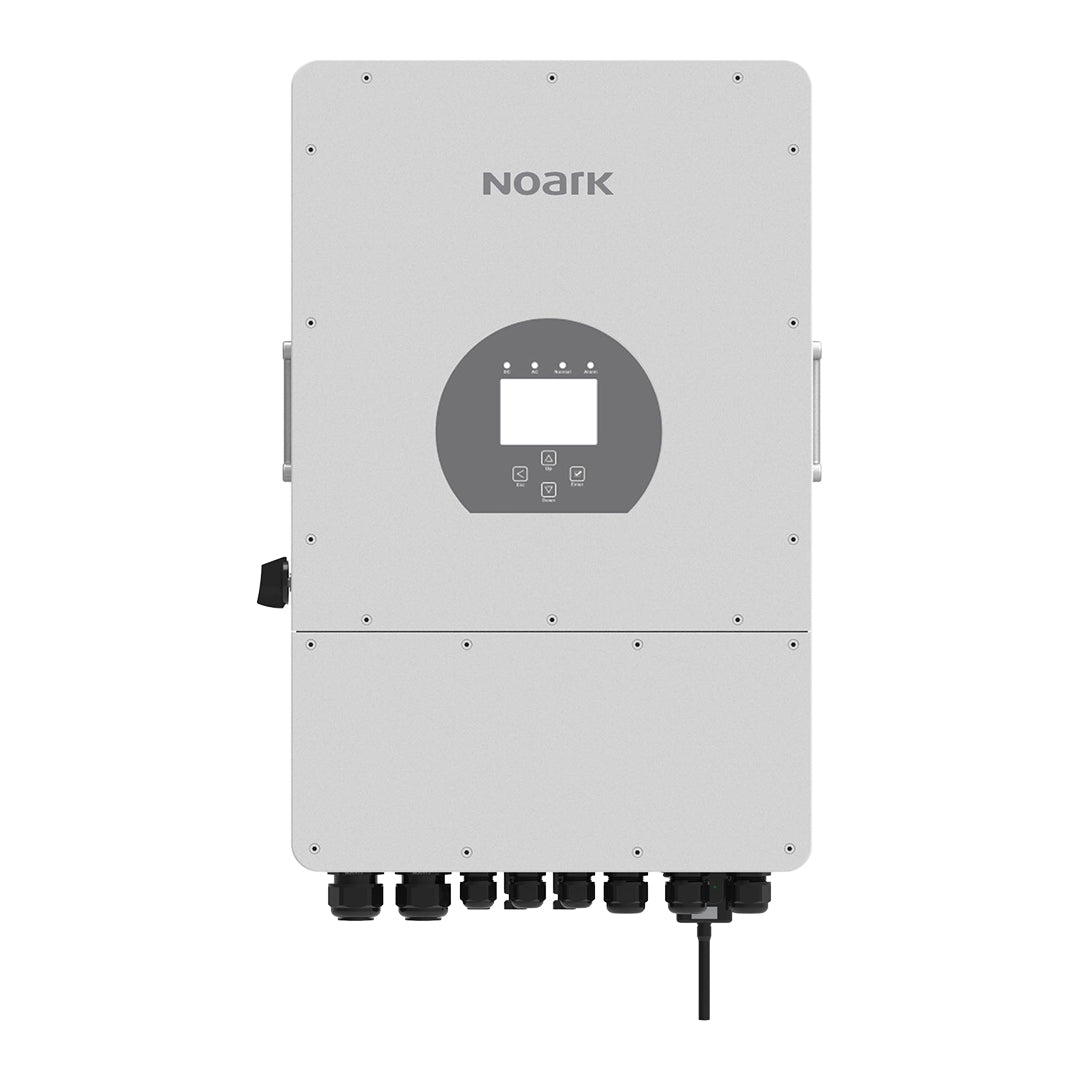

Noark Trinix Ex9N-DH-10KT-AU | 5-12kW | Three Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported:
The Noark Trinix range of three phase hybrid inverters are CEC Approved ( Multi Mode Inverter, PV + Battery) and is suitable for both On & Off-Grid applications for low battery voltage 48V, ensuring system safe and reliable.
With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via Noark Three Phase Hybrid Inverter. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a petrol or diesel generator to ensure uninterrupted supply in the event of grid blackout. It is also equipped with RS485/CAN port for battery communication.
Available Models:
- Ex9N-DH-10KT-AU
- Ex9N-DH-12KT-AU
Features:
- Wireless configuration or via coloured LCD touch screen
- 6 time-of-use settings for battery charging/discharging
- Support diesel and petrol generator
- 24/7 monitoring via myNoark energy management system
- Remote upgrade and control
- Capable of load shedding
- Support multiple batteries in parallel
- 100% unbalanced output up to 50% of rated power
- IP 65
- Dual MPPT
- 10 Year Warranty
- CEC Approved
Data sheet:
https://files.dpa.energy/wp-content/uploads/2025/10/Noark-Ex9N-DH-5-12KT-AU-CEC.pdf
Manual:
https://files.dpa.energy/wp-content/uploads/2025/10/User-Manual-Ex9N-DH-5-12KT-AU-v0.1.pdf
Battery Compatibility:
https://files.dpa.energy/wp-content/uploads/2025/10/Noark-Hybrid-Inverter-Battery-Compatibility-List.pdf
MyNoark Monitoring:
https://files.dpa.energy/wp-content/uploads/2025/10/Quick-Guide-Connect-to-myNoark.pdf
Warranty guide:
https://files.dpa.energy/wp-content/uploads/2025/10/Noark-Inverter-Standard-Warranty-Terms-and-Conditions-V1.pdf
Video:
https://www.youtube.com/watch?v=_PUoD2LB2Zk
200% Oversizing Declaration:
https://drive.google.com/file/d/1iTq4jcKxIk9IH0J5rTNax1XqyyCT_lkl/view?usp=drive_link
