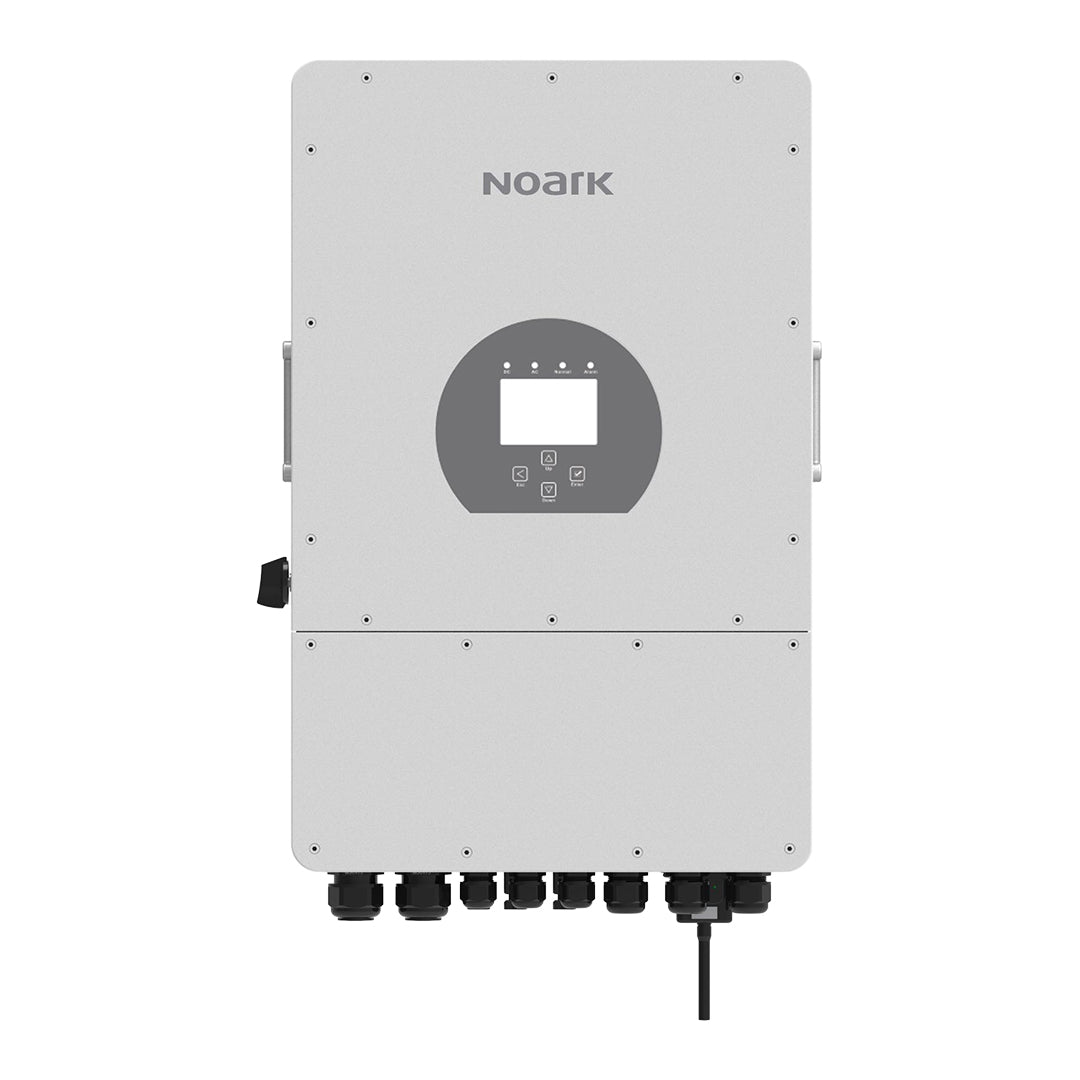

Noark Trinix 12kW Three Phase Hybrid Inverter Ex9N-DH-12KT-AU - 883105

Overview

The Noark Trinix Ex9N-DH-12KT-AU is a three-phase low-voltage hybrid inverter designed for safe, reliable, and flexible energy storage applications. Supporting both on-grid and off-grid operation, it integrates seamlessly with 48V battery systems to deliver efficient energy management for residential and light commercial installations.

With a compact design, high power density, and advanced communications interfaces, the Trinix range enables intelligent control of solar generation, battery storage, and backup power sources. It supports unbalanced three-phase loads, generator charging, and scalable battery configurations for uninterrupted power supply.

Key Features

Hybrid Energy Management

• CEC approved multi-mode inverter for PV + battery systems
• Supports both on-grid and off-grid operation
• Optimised energy flow between PV, battery, loads, and grid

Low-Voltage Battery Compatibility

• Designed for 48V lithium battery systems
• Supports multiple batteries connected in parallel
• Battery communication via CAN and RS485

Advanced Load & Phase Management

• 100% unbalanced output capability
• Up to 50% of rated power available on a single phase
• Suitable for complex three-phase load profiles

Smart Control & Monitoring

• Wireless configuration or colour LCD touch screen setup
• 6 time-of-use settings for battery charge and discharge
• 24/7 monitoring via the myNoark energy management system

System Integration & Backup Power

• Supports diesel and petrol generator input
• Capable of load shedding during grid outages
• Remote upgrade, control, and diagnostics

Design & Reliability

• Dual MPPT design for flexible PV array layouts
• DC/AC ratio up to 1.3 for improved system economics
• IP65-rated enclosure for indoor or outdoor installation
