Ohme Home Pro 7.4kW EV Charger 8m

Overview

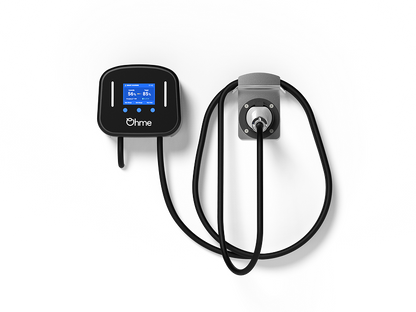

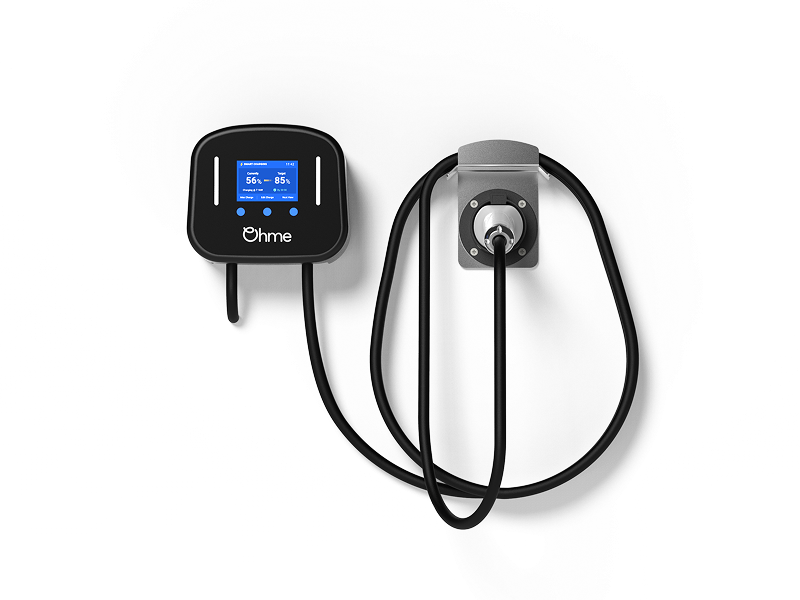

The Ohme Home Pro 7.4kW is the complete home EV charging package, featuring a premium colour LCD screen and a tethered 8m Type 2 cable to power your EV the easy way. The longer 8m cable gives you extra reach and parking flexibility, while still being compatible with most EVs in Australia. It delivers 7.4kW of power – faster and safer than a domestic socket and perfect for overnight charging.

Built around Ohme's smart charging technology, the Home Pro is easy to set up for reliable charging at the cheapest times. Control it from the three buttons on the charger or the Ohme smartphone app, charge with excess solar energy, and keep it future-proof with over-the-air updates. It's backed by a 3-year warranty and award-winning customer support.

Key Features

Power & Performance

• 7.4kW power output – approximately 40km of range per hour
• Faster and safer than a domestic socket, perfect for overnight charging
• Rated current 32A
• Nominal supply 230V/240V AC, 50 Hz
• Mode 3 charging

Tethered Cable & Screen

• Tethered model with a Type 2 plug
• 8m Type 2 cable for extra reach – compatible with most EVs in Australia

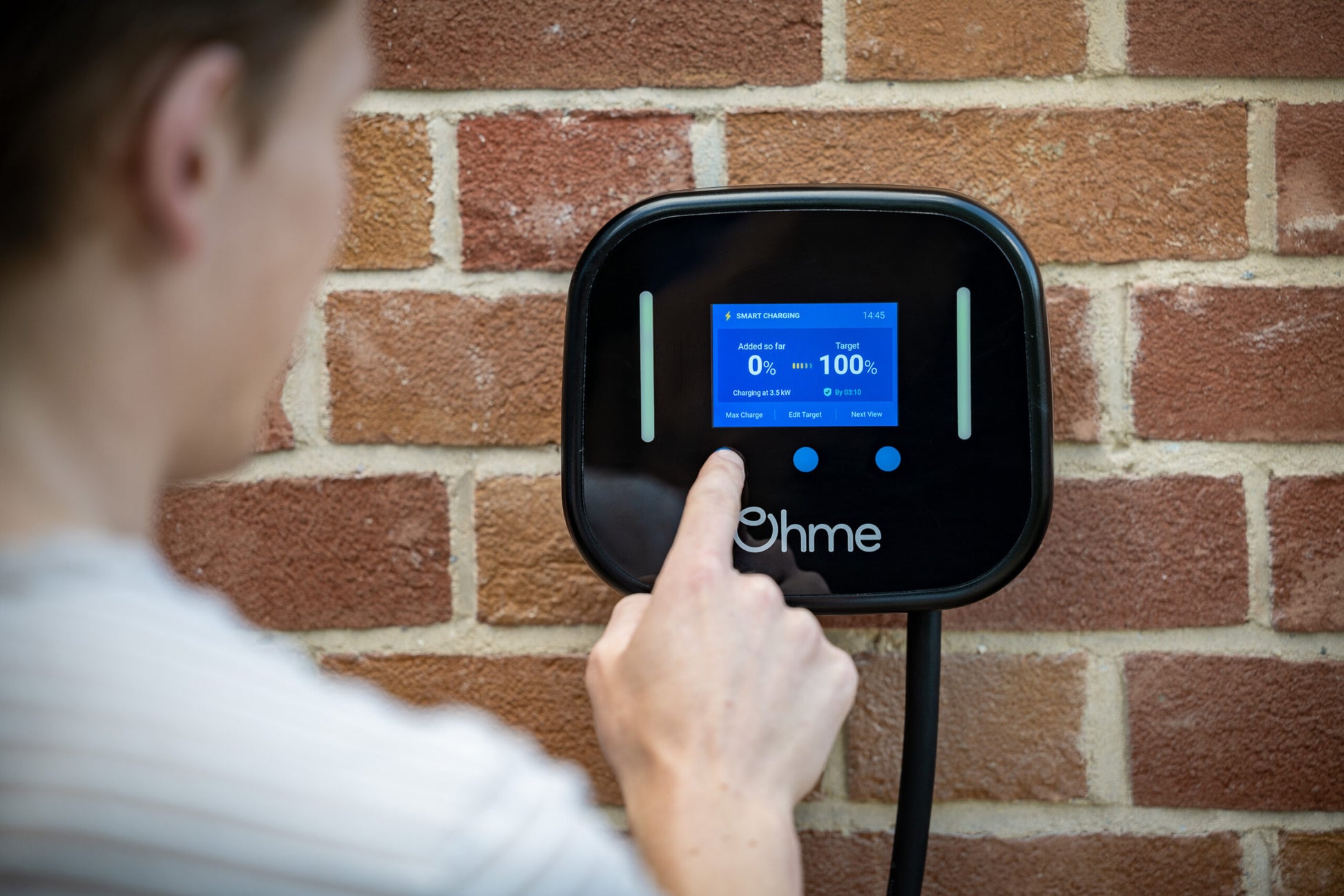

• Premium colour LCD screen
• 3-colour LED indication strip (green, blue, red) plus LCD status display

Smart & Cost-Saving Charging

• Smart charging technology
• Easy to set up for reliable charging at the cheapest times
• Finds the greenest and cheapest times to charge based on your energy tariff and charging needs
• Integrates with all energy providers
• Add your time-of-use tariff in the app to automatically charge when it's cheaper

Solar & Energy Management

• Solar compatible – fill up your car with excess solar generation
• Includes a CT clamp for monitoring power consumption and load balancing
• Home power balancing
• Solar charging available when used as a Wi-Fi unit connected to the internet

Connectivity & Control

• Control via the three buttons on the charger or the Ohme smartphone app
• Wi-Fi connectivity (IEEE 802.11b/g/n, 2.4 GHz) and Bluetooth
• Over-the-air firmware & software updates

The Ohme App

• Solar charging: use excess energy to charge your car with green energy
• Schedule charging sessions around your time and tariff preferences
• Add your time-of-use energy tariff for automatic, cheaper charging
• Monitor energy usage and every kWh used to understand your charging costs
• Tesla Integration: view state of charge and battery specs and set charging targets without leaving the app (more EV makes and models coming soon)

Design & Build

• Dimensions: 170mm (H) x 200mm (W) x 100mm (D)
• Unit weight: 4kg
• Wall or post mounted, indoor or outdoor
• IP55 ingress protection and IK08 impact rating
• PC6600 UV-stabilised enclosure, fire rated (V-0 UL94)
• Standard finish: Black

Warranty, Support & Compliance

• 3-year warranty from installation date
• Award-winning customer support
• RCM marked and EESS registered for Australia

Operating Environment

• Operating temperature: -25°C to 45°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 5 - 95% RH
