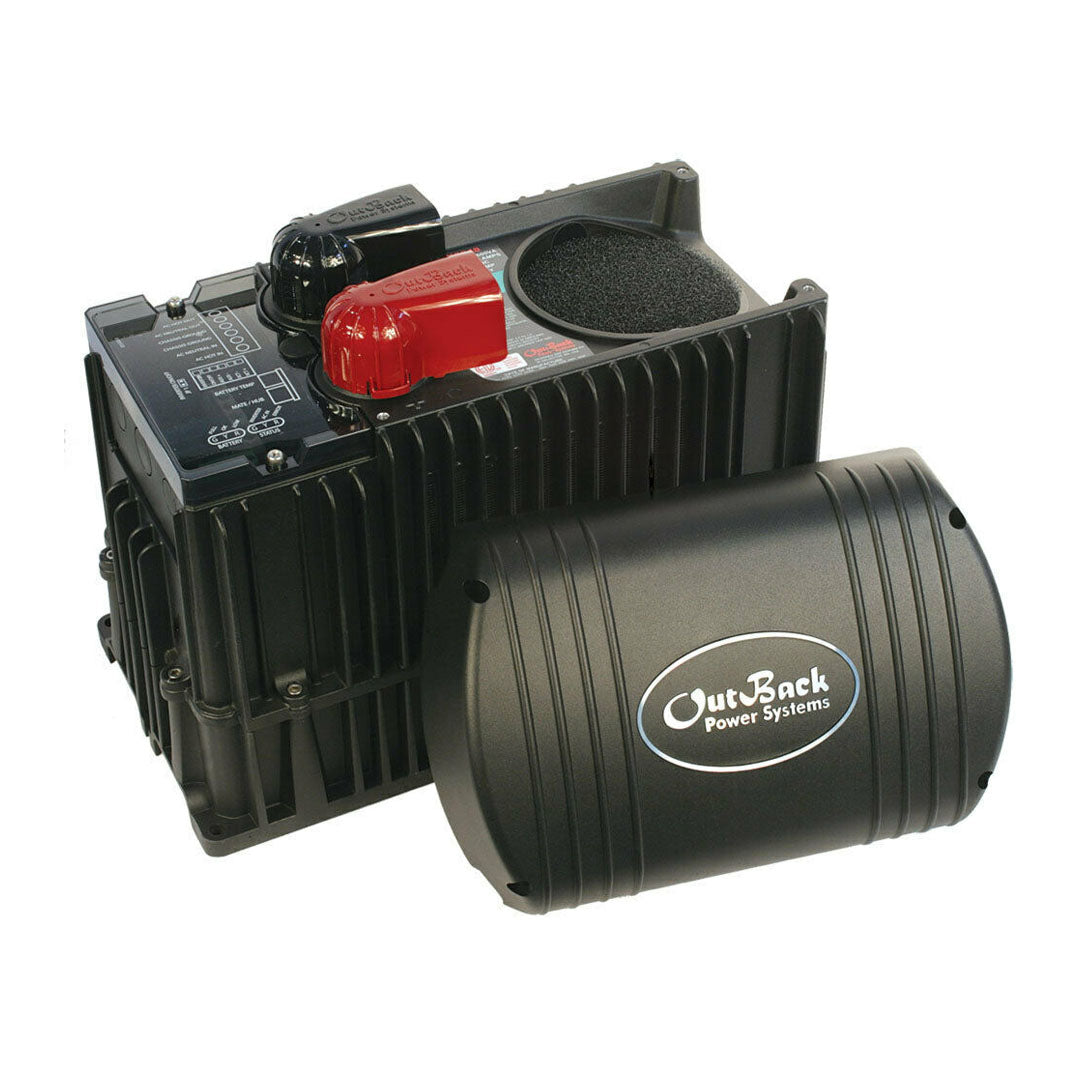

OutBack Power Inverter/Charger 48V/3000W 230V - VFXR3048E

Overview

The OutBack Power VFXR3048E is a high-performance 48V, 3 kW inverter/charger from OutBack’s FXR™ Series—one of the most trusted platforms in the industry for mission-critical power systems. Designed for both off-grid and grid-connected operation, it provides exceptional flexibility for residential, commercial, and remote energy applications.

With advanced charging technology, multiple programmable operating modes, and scalable system architecture, the VFXR3048E supports a wide range of modern battery technologies and system configurations. Its rugged construction and proven reliability make it ideal for demanding environments and long-term operation.

Key Features

Hybrid Grid & Off-Grid Operation

• Single inverter/charger supports both grid-connected and off-grid systems
• Seven programmable operating modes including GridZero and Support Mode
• Designed for flexible energy management across diverse applications

Advanced Battery Charging (ABC)

• Expanded charging voltage and time parameters
• Supports Lithium-ion, aqueous ion, flow, and other emerging battery technologies
• Allows precise configuration to suit specific battery requirements

Scalable Modular System Design

• Multiple inverters can be stacked for increased power output
• Up to nine inverters configurable in a three-phase system
• Up to 36 kW achievable in grid-connected 48V system configurations

Integrated Communications & Monitoring

• Built-in networked communications
• Compatible with MATE3 for OPTICS RE remote monitoring and control
• System performance accessible from virtually any location

Rugged Construction for Harsh Environments

• Vented NEMA Type 1 die-cast aluminium enclosure
• Designed for high temperatures, humidity, and corrosive environments
• Engineered for mission-critical, long-life installations
