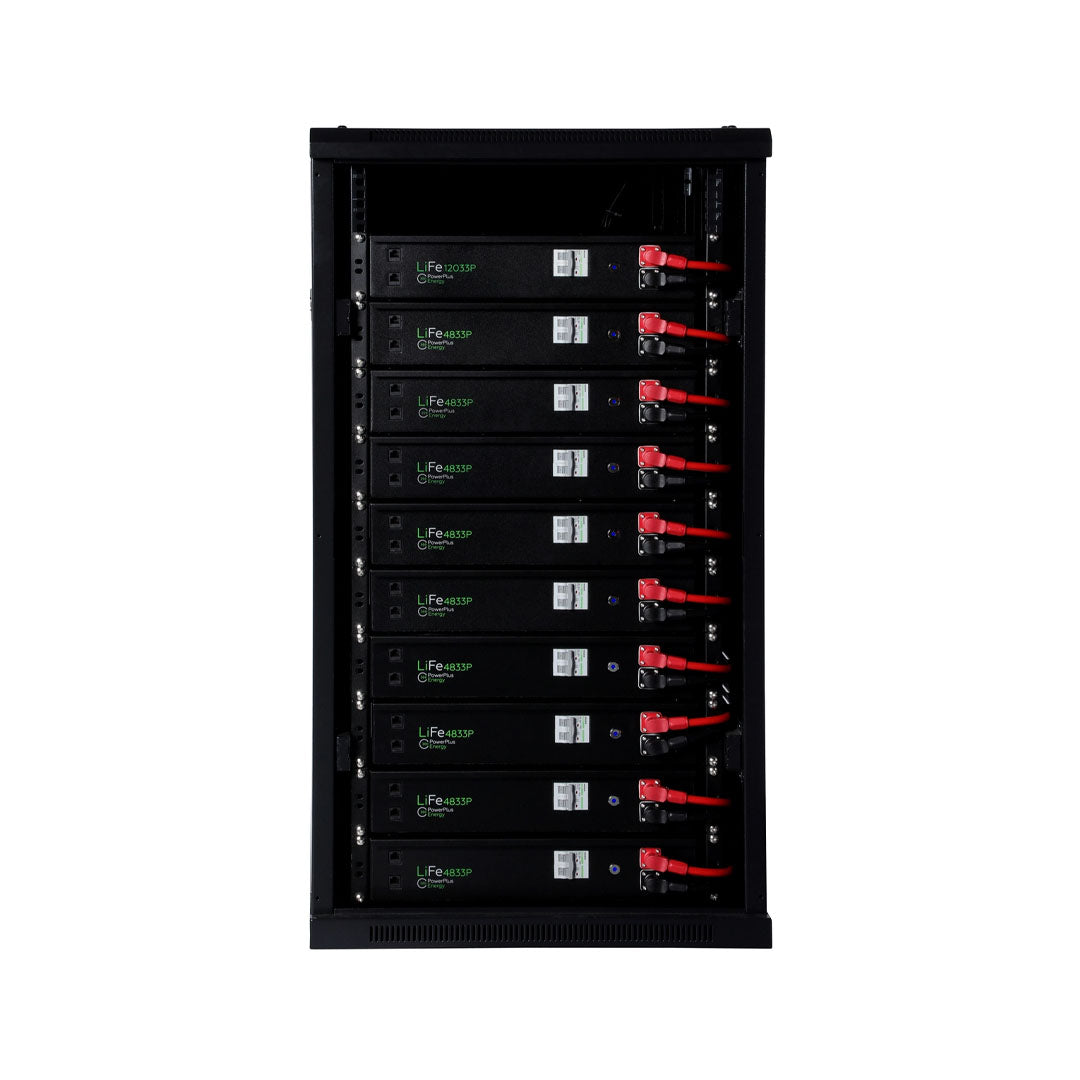

PowerPlus Energy 12x Battery Cabinet IP21 - PIR12C

PowerPlus Energy 12x Battery Cabinet IP21 - PIR12C

Please sign in to see pricing
  • Australian-made indoor battery cabinet – designed for clean, professional installations
  • Pre-wired plug & play design – includes all interconnecting cables and DC busbar
  • High-capacity rack solution – supports up to 48 kWh of energy storage
  • Expandable cabinet range – scalable from 8 to 20 batteries with parallel linking
  • Heavy-duty 1000 A DC busbar – continuous-rated for high-current systems
  • IP21 indoor rated enclosure – ideal for protected internal environments
View full details
  • Description
  • Downloads

Description

Overview

The PowerPlus Energy Rack Series Cabinets (PIR8C–PIR20C) are elegant, Australian-made indoor battery enclosures engineered for fast, clean, and scalable installation of LiFe Premium and ECO P Series batteries.

Supplied fully pre-wired with all interconnecting battery cables and a 1000 A continuous-rated DC busbar, the Rack Series dramatically simplifies on-site installation. With multiple cabinet sizes and the ability to parallel cabinets, the range offers a future-proof solution for growing energy storage requirements.

Key Features

Australian Designed & Manufactured

  • Designed and built in Australia
  • High-quality powder-coated finish for long-term durability
  • Engineered for reliable indoor energy storage applications

Pre-Wired Plug & Play Installation

  • Factory pre-wired for rapid installation
  • Includes all interconnecting battery cables
  • Integrated 1000 A continuous-rated DC busbar

Expandable & Scalable Storage

  • Supports cabinet sizes from 8 to 20 batteries
  • Example configuration supports up to 12 batteries / 48 kWh
  • Multiple cabinets can be linked in parallel

Battery Compatibility

  • Compatible with PowerPlus Energy LiFe Premium batteries
  • Compatible with ECO P Series batteries
  • Easy battery expansion as system needs grow

Robust Indoor Cabinet Design

  • IP21 rated for indoor installations
  • Floor-mounted steel cabinet
  • Durable, robust powder-coated construction

Ease of Installation & Handling

  • 4 caster rollers for easy positioning
  • 4 height-adjustable locking feet for secure placement
