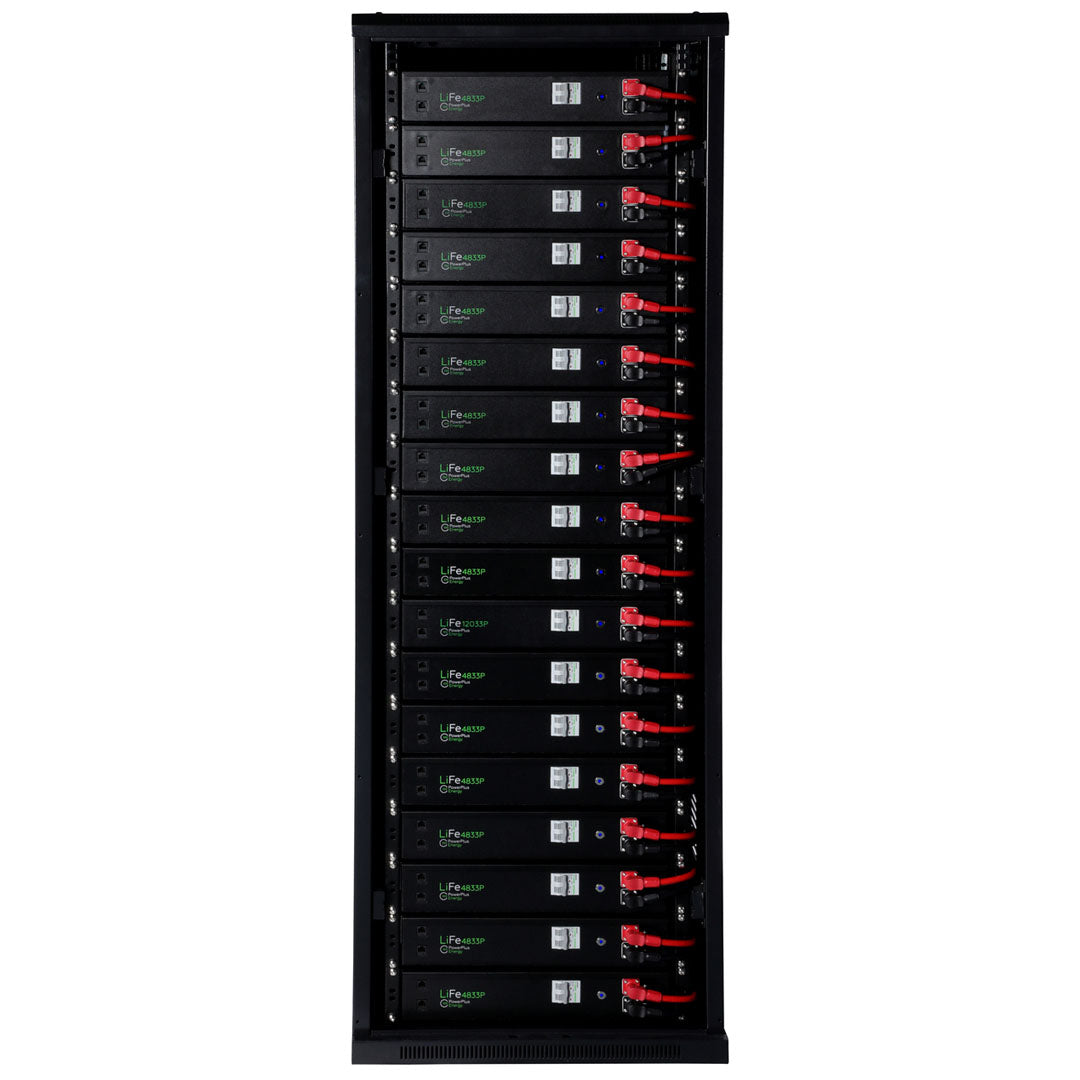

PowerPlus Energy 18x Battery Cabinet IP21 - PIR18C
PowerPlus Energy 18x Battery Cabinet IP21 - PIR18C
PowerPlus Energy 18x Battery Cabinet IP21 - PIR18C
Powerplus Energy 18X Battery Cabinet Ip21 Pir18C
PowerPlus Energy Rack Series PIR8C-PIR20C:
The Rack Series cabinets are an elegant IP21 indoor battery cabinet that are pre-wired for an easy plug and play installation of our LiFe or ECO P Series batteries. Complete with all interconnecting battery cables and a 1000A DC busbar, installation has never been so simple.
Suits Battery Expansion: As needs or budget allow, it is easy to add another battery to the system. Plugging a new battery in and altering a few settings on your inverter is all that is needed.
Range of Cabinet Sizes: The Rack Series range in capacity from 8 all the way up to 20 batteries, and with the ability to parallel multiple cabinets, there really is a solution for all applications.
Prewired: To allow minimal fuss all our cabinets come prewired ready to go, the easiest part of the job will be installing the batteries.
*Note: Batteries sold separately
Key Features
- Australian Made
- Pre-wired
- Suitable for both LiFe Premium and Eco Series Batteries
- Durable, Robust, Powder Coated Finish
- Future Proof Friendly
- Multiple Cabinets can be Linked in Parallel
- Indoor Friendly
Additional Features
- Store up to 72kWh of energy
- 18 battery slots
- IP21 Rating
- Floor Mounted
- Busbar with M8 Stud 1000A Continuous Rated
- 174kg
- 4 Caster Rollers and 4 Height Adjustable Locking Feet
Installation
- https://www.powerplus-energy.com.au/files/Cabinet_Installation_Manual.pdf
- https://www.powerplus-energy.com.au/files/Cabinet_Installation_Manual.pdf
