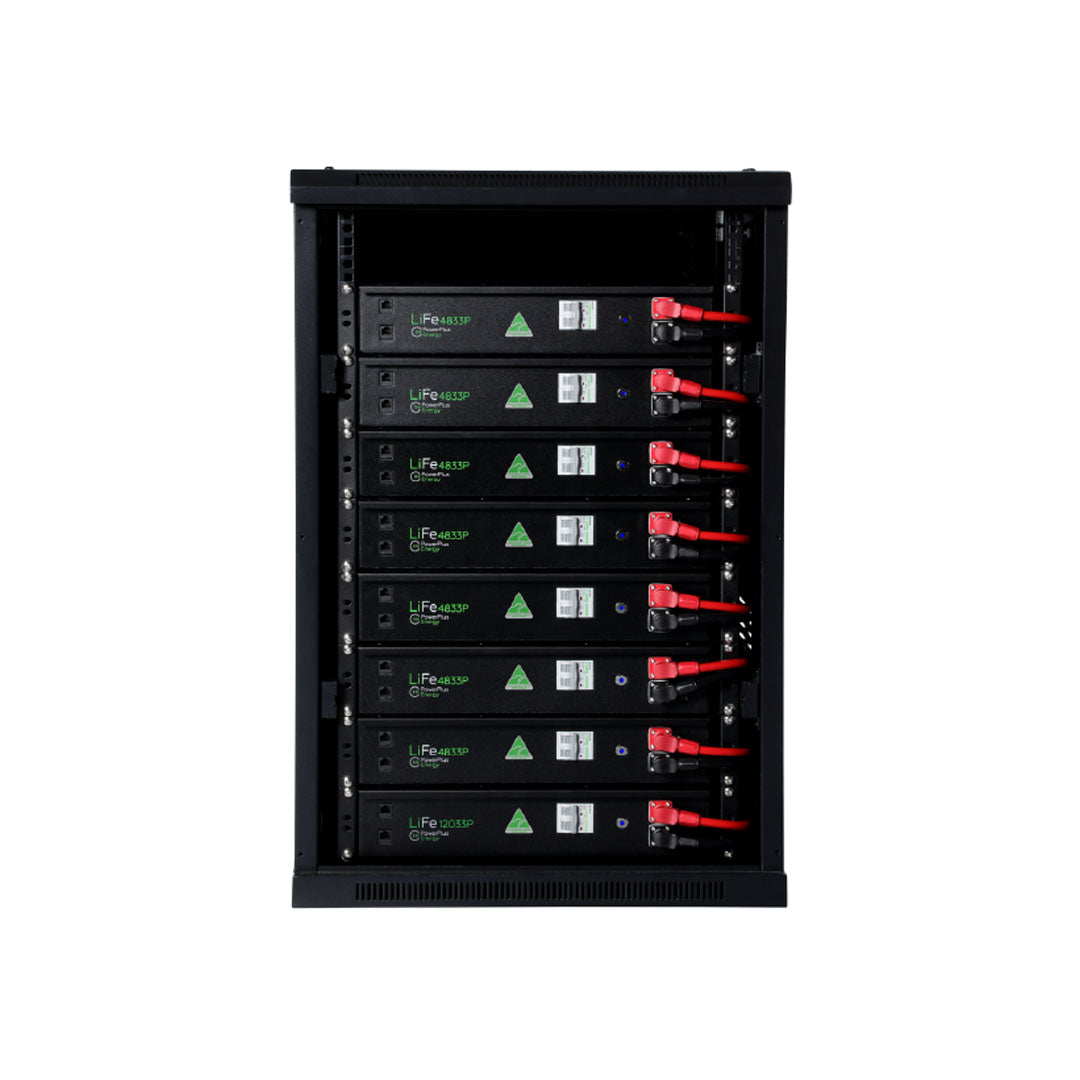

PowerPlus Energy 8x Battery Cabinet IP21 - PIR8C

PowerPlus Energy 8x Battery Cabinet IP21 - PIR8C

Please sign in to see pricing
  • Australian-made indoor battery cabinet – designed for clean, professional energy storage installations
  • Pre-wired plug & play design – includes interconnecting battery cables and DC busbar
  • Compact rack solution – supports up to 32 kWh of battery storage
  • Expandable cabinet platform – scalable from 8 to 20 batteries with parallel linking
  • Heavy-duty 1000 A DC busbar – continuous-rated for high-current applications
  • IP21 indoor rated enclosure – ideal for protected internal environments
View full details
  • Description
  • Downloads

Description

Overview

The PowerPlus Energy Rack Series Cabinet – PIR8C is a compact, Australian-made indoor battery enclosure designed for fast, clean, and scalable installation of LiFe Premium and ECO P Series batteries.

Supplied fully pre-wired with all interconnecting battery cables and a 1000 A continuous-rated DC busbar, the PIR8C simplifies installation while providing a future-proof platform that can expand as energy storage requirements grow.

Key Features

Australian Designed & Manufactured

  • Designed and built in Australia
  • Durable, robust powder-coated steel construction
  • Engineered for reliable indoor energy storage applications

Pre-Wired Plug & Play Installation

  • Factory pre-wired for minimal on-site labour
  • Includes all interconnecting battery cables
  • Integrated 1000 A continuous-rated DC busbar

Expandable & Scalable Storage

  • Rack Series capacity range from 8 to 20 batteries
  • This configuration supports up to 8 batteries / 32 kWh
  • Multiple cabinets can be linked in parallel

Battery Compatibility

  • Compatible with PowerPlus Energy LiFe Premium batteries
  • Compatible with ECO P Series batteries
  • Simple battery expansion as system requirements evolve

Robust Indoor Cabinet Design

  • IP21 rated enclosure for indoor installations
  • Floor-mounted cabinet for stability and accessibility
  • Clean, organised layout for compact battery systems

Ease of Installation & Handling

  • 4 caster rollers for easy positioning on site
  • 4 height-adjustable locking feet for secure placement
