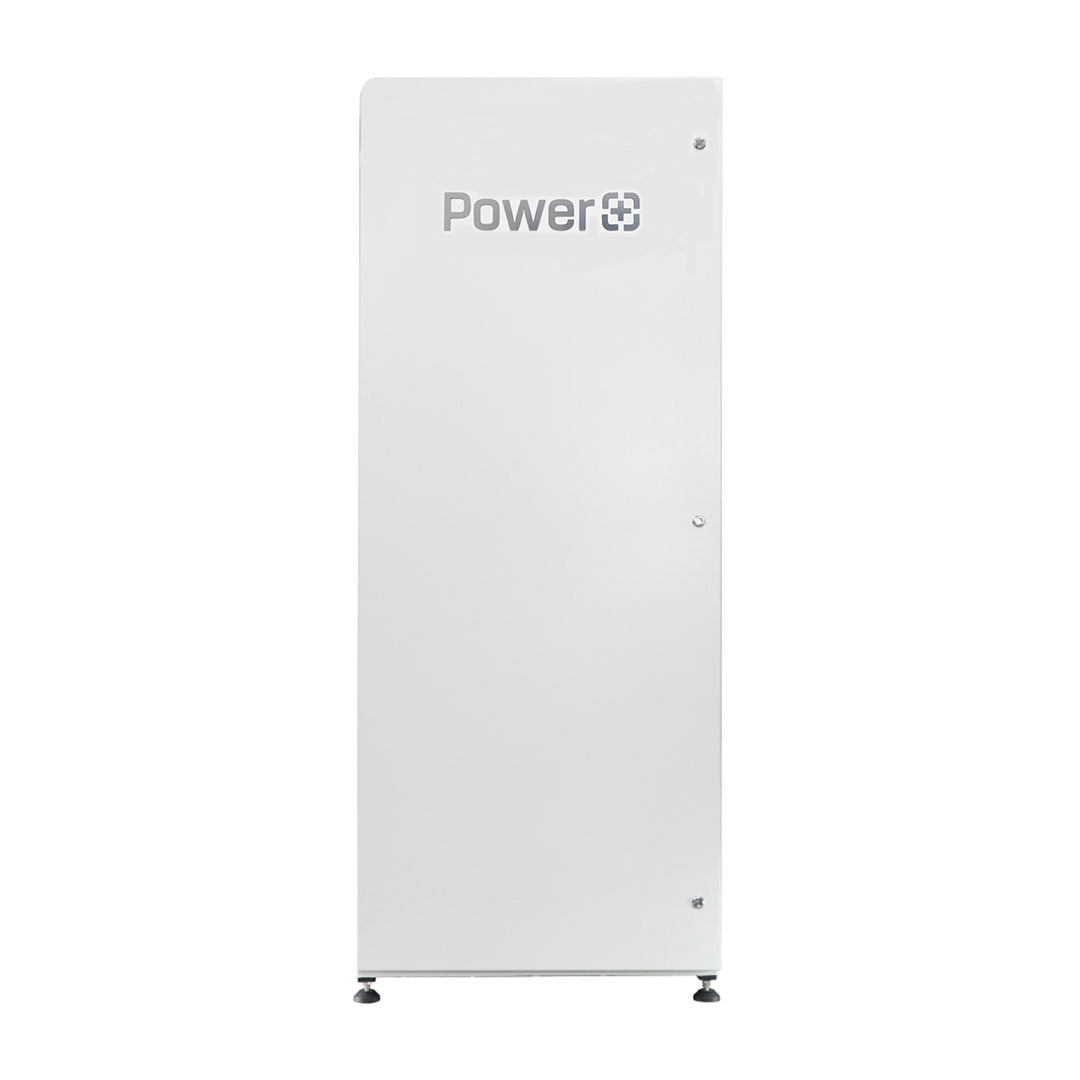

PowerPlus Energy Cabinet for Inverter & 6x Batteries IP54 - PEF6W-B250

PowerPlus Energy Cabinet for Inverter & 6x Batteries IP54 - PEF6W-B250

Please sign in to see pricing
  • All-in-one inverter + battery enclosure – supports popular inverter models with PowerPlus batteries in one weatherproof cabinet
  • – built locally for reliable energy storage projects Australian designed & made
  • IP54–IP66 SlimLine range – indoor/outdoor options with a compact, shallow footprint
  • Prewired plug-and-play design – integrated DC cabling, busbar and DC circuit breaker (refer specification)
  • Scalable storage platform – add batteries or parallel cabinets as system needs grow
  • 6-slot high-capacity option – store up to 24 kWh of energy (battery dependent)
View full details
  • Description
  • Downloads

Description

Overview

The PowerPlus Energy SlimLine Cabinet Series delivers a compact, Australian-made enclosure solution for indoor or outdoor energy storage projects. With SlimLine models ranging from IP54 to IP66, the series is designed to protect key system components while keeping a low-profile footprint that suits tight side access, walkways, and residential installations.

Select SlimLine configurations such as the PEF6 and PEF12 offer an all-in-one enclosure for both inverter and batteries, providing a complete solar-powered battery system with minimal impact on available space. A prewired, plug-and-play design—featuring integrated DC cables, DC busbar and DC circuit breaker (refer specification for full details)—helps streamline installation of PowerPlus Energy LiFe Premium or ECO P Series batteries.

Key Features

All-in-One System Integration

  • Single enclosure for inverter and PowerPlus Energy batteries (PEF6/PEF12 configurations)
  • Flexible design to suit a range of popular inverter models
  • Compact solution designed to minimise impact on walkways and side access spaces

Australian Designed & Manufactured

  • Australian made product designed for straightforward system design and installation
  • Modern enclosure styling for residential and commercial energy storage

Indoor & Outdoor Rated Protection

  • SlimLine enclosure options available from IP54 to IP66
  • Shallow profile supports neat placement without encroaching on usable space
  • Durable, robust, powder-coated finish for long service life

Prewired Plug-and-Play Installation

  • Prewired design reduces installation time and complexity
  • Integrated DC cabling, DC busbar and DC circuit breaker (refer specification)
  • Temperature-controlled (adjustable) fan-forced cooling for thermal management

Scalable Storage & Expansion Ready

  • Easy to expand by adding additional batteries as needs or budget allow
  • Capacity options across the range from 3 to 12 batteries (model dependent)
  • Multiple cabinets can be linked in parallel for larger installations

6-Slot SlimLine Cabinet (IP54 example)

  • Stores up to 24 kWh of energy (battery dependent)
  • 6 battery slots with IP54 rating
  • Floor mounted enclosure configuration
  • Busbar with M8 stud, cabinet weight 102 kg

Downloads

Datasheet Installation Guide Video
