PowerPlus Energy Cabinet for Inverter & 8x Batteries IP54 - PEF8-B250

Quick Feature Highlights

• Supports inverter & 8 battery modules – designed for integrated residential and commercial battery energy storage systems
• Pre-wired DC cabling – simplifies installation with integrated breaker assembly and battery interconnection hardware
• Large internal gear mounting area – accommodates inverter and balance-of-system equipment with detachable mounting plate
• Outdoor-ready IP54 enclosure – robust galvanised steel cabinet suitable for indoor or sheltered outdoor installations
• Temperature-controlled cooling – fan-forced ventilation with adjustable thermostat for reliable thermal management
• Optional fire suppression system – compatible with UL-certified dry aerosol fire suppression kit for enhanced safety

Overview

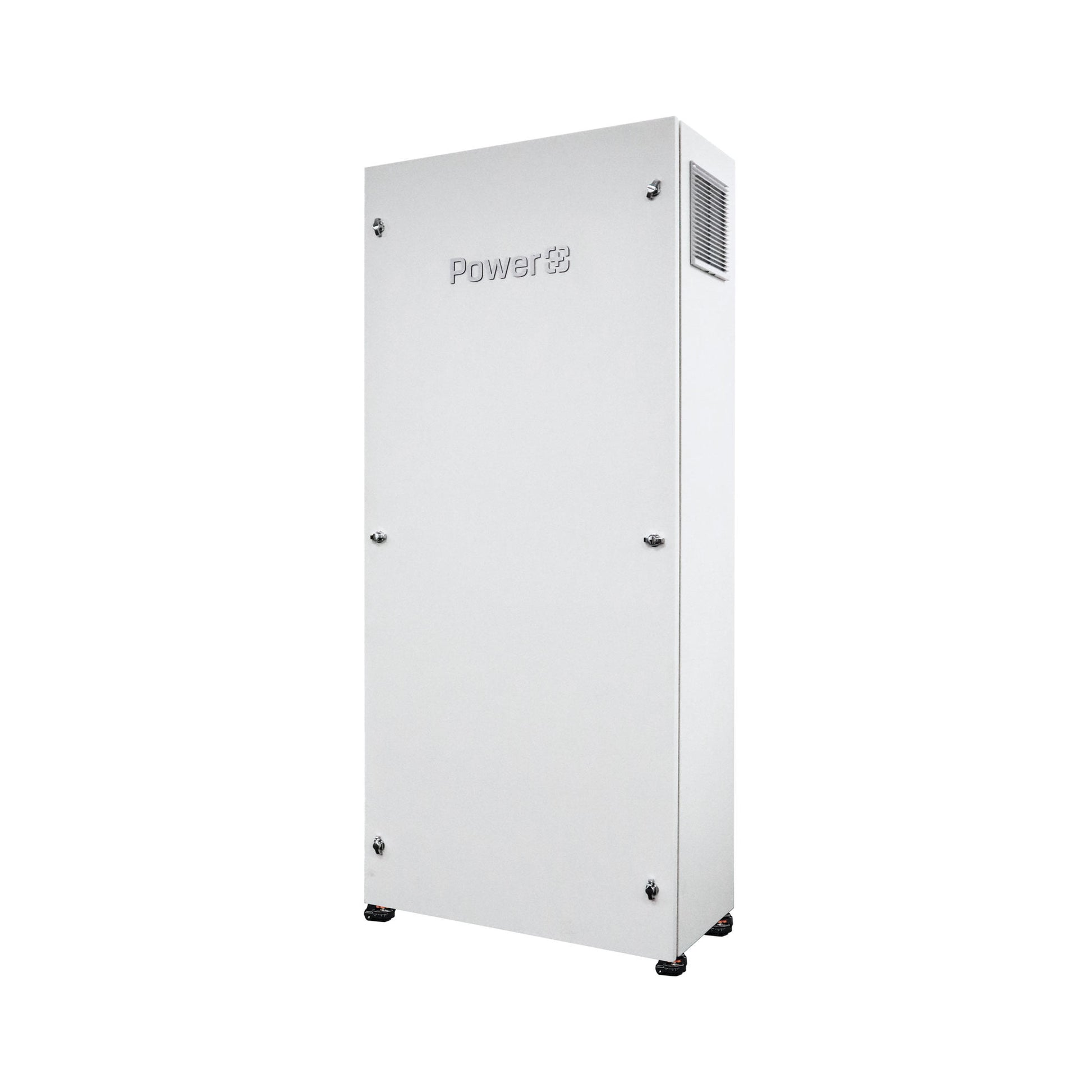

The PowerPlus Energy Cabinet for Inverter & 8x Batteries IP54 (Model PEF8-B250) is a professional-grade outdoor battery and inverter enclosure engineered for larger-scale energy storage installations. Designed to house up to 8 PowerPlus Energy 2RU battery modules alongside inverter and balance-of-system equipment, the PEF8-B250 provides a clean, organised, and installation-ready solution for residential, commercial, and off-grid applications.

Manufactured in Australia using a fully welded galvanised steel chassis, the cabinet includes pre-wired DC cabling, integrated breaker assembly, detachable gear mounting plate, and temperature-controlled cooling to streamline installation while maintaining reliable long-term system performance.

Key Features

Integrated Energy Storage Cabinet

• Supports up to 8 x PowerPlus Energy 2RU battery modules
• Large internal mounting area for inverter and balance-of-system components

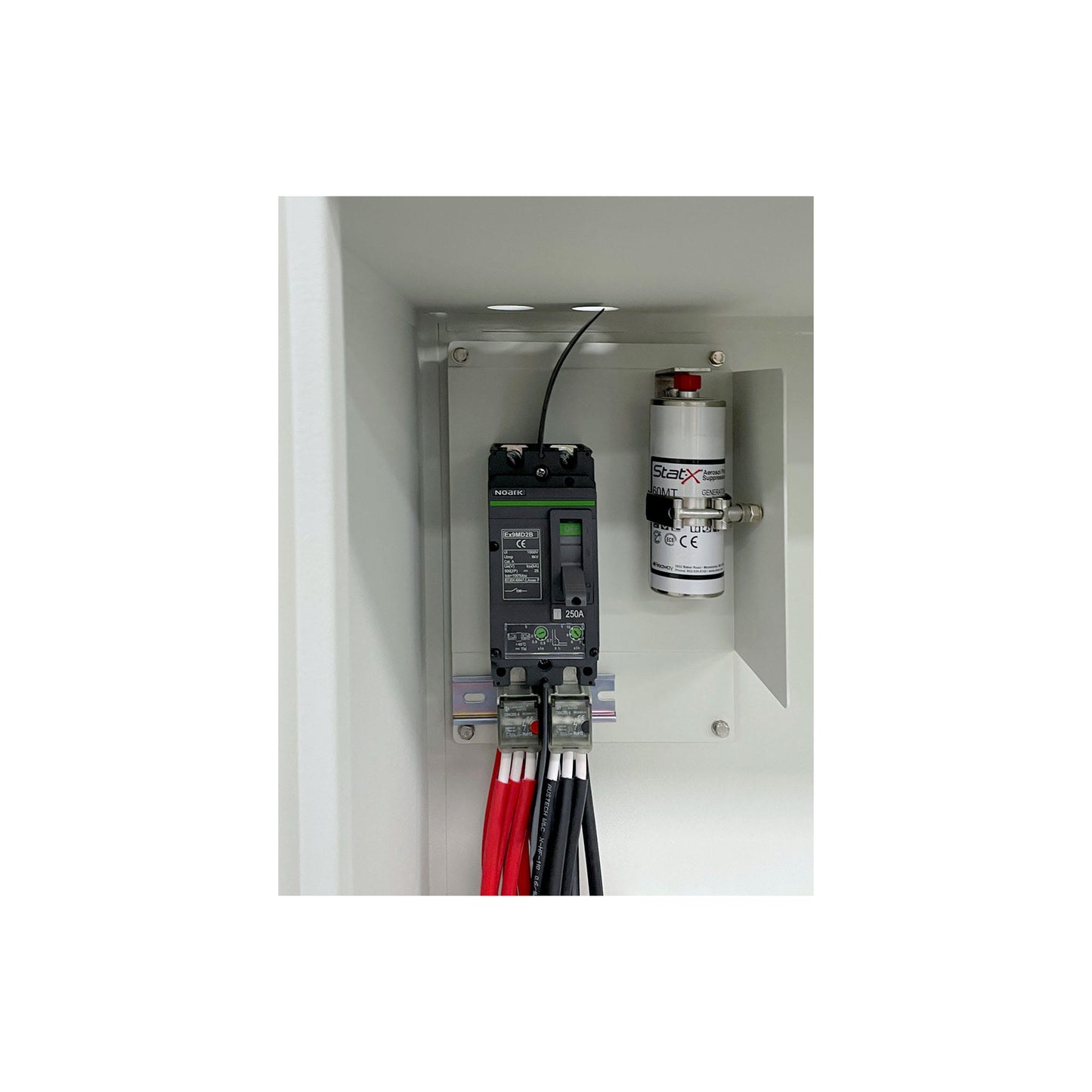

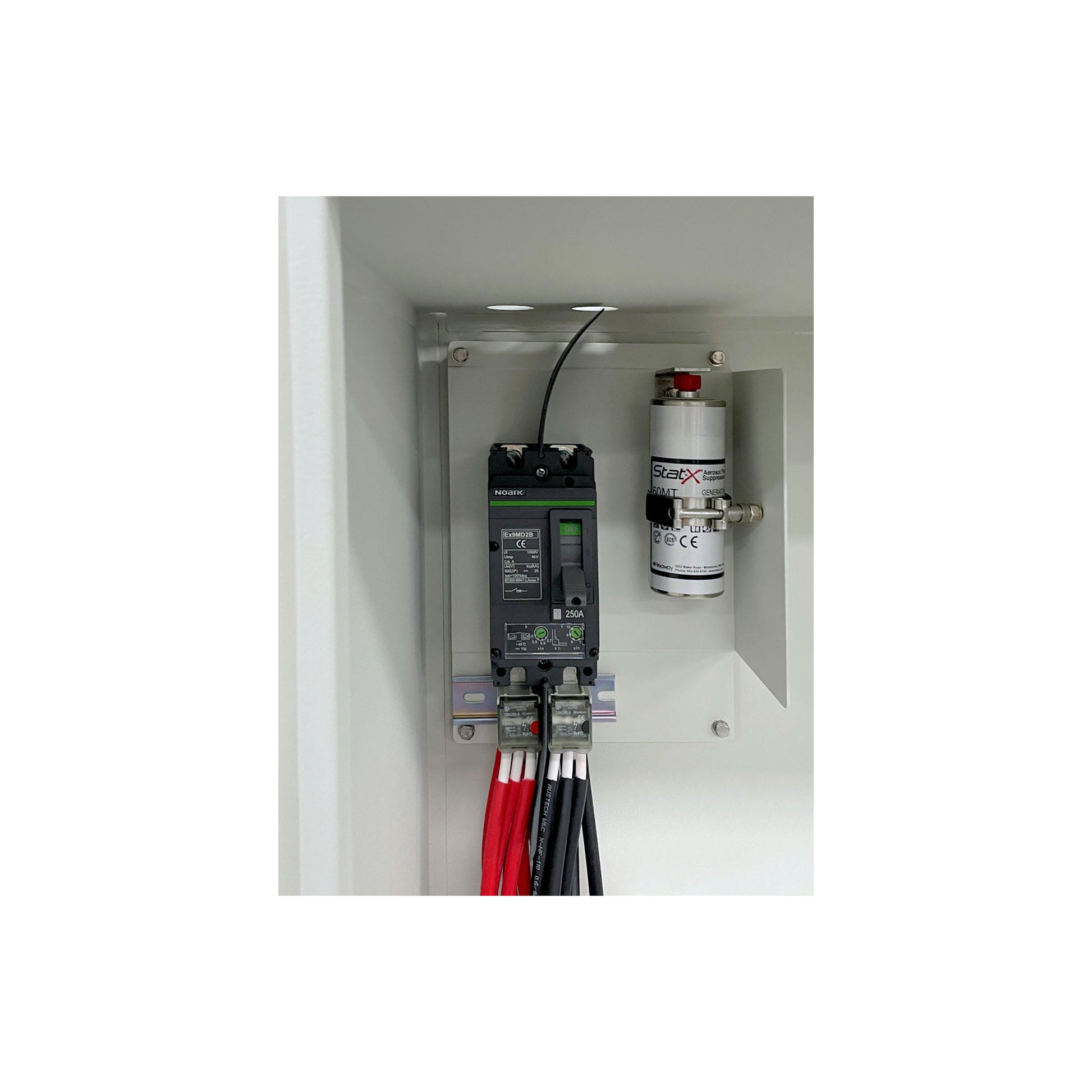

• Complete breaker assembly included for simplified DC integration
• Pre-wired battery interconnection cabling reduces installation time

Robust Outdoor Construction

• Powder-coated, fully welded galvanised steel chassis
• IP54-rated enclosure suitable for indoor or sheltered outdoor installations
• Heavy-duty levelling castors support positioning and installation
• Compact slimline design suitable for space-constrained installations

Advanced Cooling & Safety

• Temperature-controlled fan-forced ventilation with adjustable thermostat
• Designed for high-capacity battery energy storage applications
• Optional UL-certified dry aerosol fire suppression kit available
• Supports compliant cable entry and protected installation practices

Installer-Friendly Design

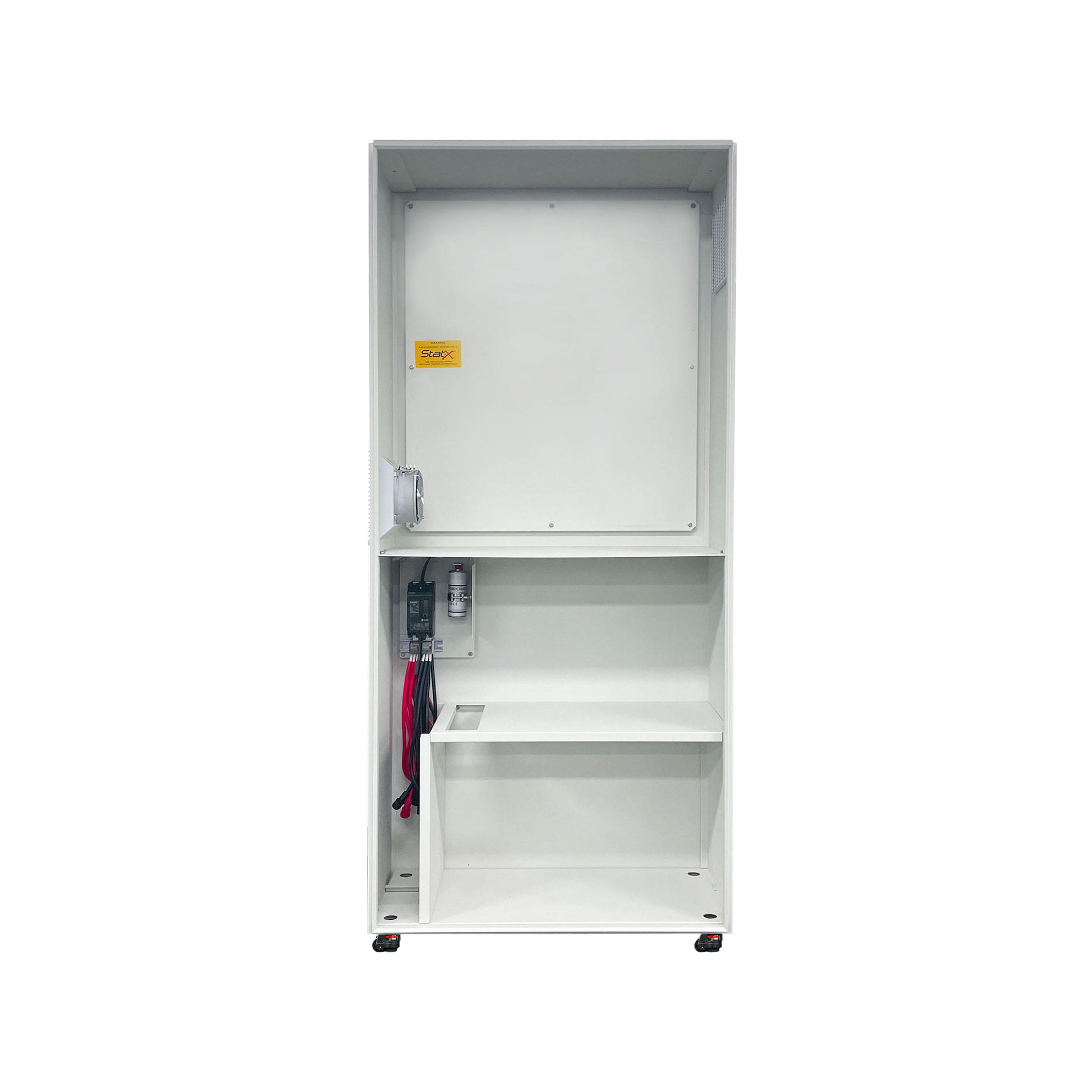

• Detachable gear plate simplifies equipment mounting and workshop pre-builds
• Cable entry can be positioned around the cabinet to suit application requirements
• Pre-configured layout improves installation efficiency and system organisation
• Compatible with leading inverter brands including Victron, Selectronic, SMA, Solis, and Deye

Technical Specifications

• Dimensions (H × W × D): 2108 × 925 × 451 mm
• Battery Capacity: Supports 8 × 2RU battery modules
• Mounting: Floor-mounted
• Cooling: Temperature-controlled fan forced
• DC Circuit Breaker: 2P 250A
• IP Rating: IP54
• Weight: 140 kg
• Internal Mounting Plate: 737 mm × 868 mm (minimum)
• Clearance Between Plate & Door: 388 mm

Approvals & Compliance

• Designed and manufactured in Australia for harsh environmental conditions
• Suitable for compliant residential and commercial battery energy storage installations
• IP54-rated enclosure for protected indoor or outdoor use
• Optional UL-certified fire suppression system available for enhanced protection

Warranty & Support

• Backed by PowerPlus Energy manufacturer warranty and technical support
• Installation must be completed by suitably qualified personnel in accordance with local standards and PowerPlus Energy installation guidelines

Downloads

• Datasheet
• Install Manual
• Fire Suppression
