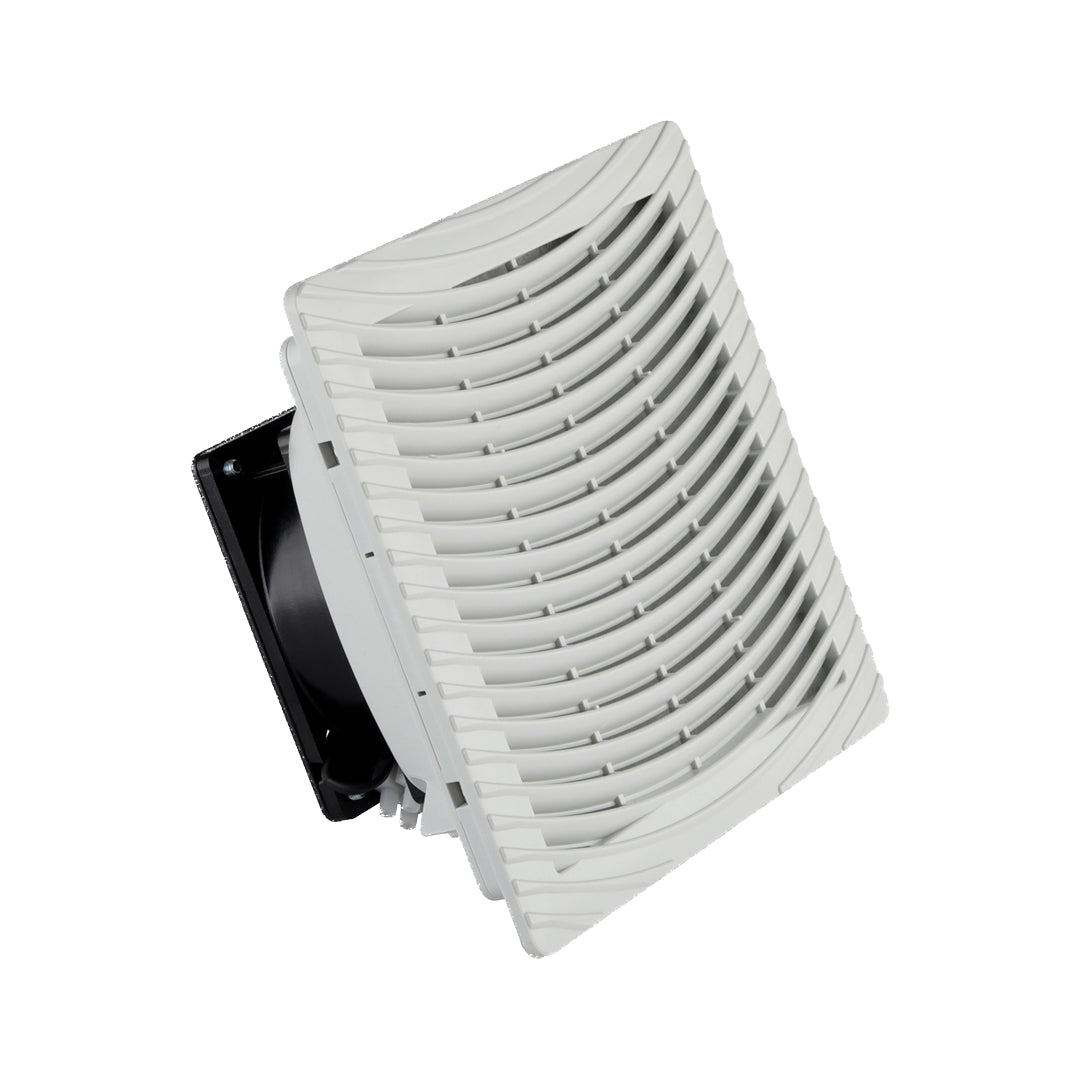

PowerPlus Energy Vent, Filter & Fan IP54 240V - FK5523.230

Overview

The FK55 Series Ventilation Unit is a compact, low-profile solution designed to provide effective airflow and cooling for control cabinets, enclosures, and housings. With a distinct curved modern appearance and quick-mount design, the FK55 series combines performance, protection, and aesthetics.

Supporting both filtered and unfiltered operation, the FK55 series helps maintain optimal internal temperatures while protecting sensitive equipment from dust ingress through integrated filter mats.

Key Features

Efficient Ventilation Performance

• Airflow without filter: up to 105 m³/hr
• Airflow with filter: 85–100 m³/hr
• Designed for reliable cooling of electrical enclosures

Dust Protection & Enclosure Safety

• IP54 protection rating for dust and splash resistance
• Integrated filter mats for dust collection
• Helps protect internal components and extend equipment life

Installer-Friendly Design

• Low-profile construction for space-efficient installations
• Quick panel-mount installation
• Modern curved styling for a clean, professional finish

Physical Specifications

• Colour: Grey (RAL7035)
• External dimensions: 204 × 204 mm
• Panel cut-out size: 177 × 177 mm
