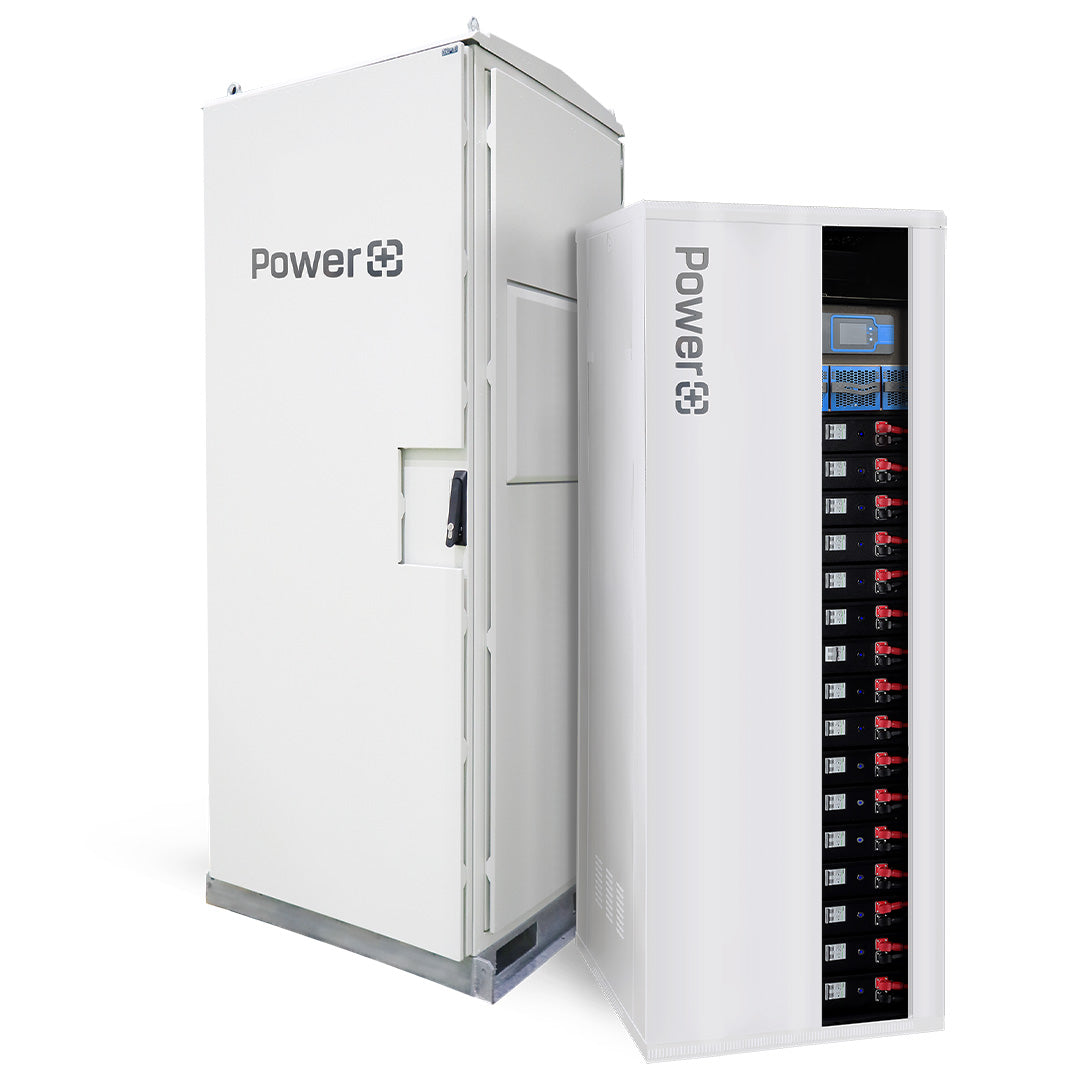

PowerPlus Escape20 IP54 [FAN] BESS 28.8kW/3Ph. Primary Cabinet - ESCA2028-615-000

Overview

The PowerPlus Escape20 BESS Series is a versatile and scalable battery energy storage system designed for commercial, industrial, and large-scale renewable energy applications. With system sizes ranging from 28.8 kW to 115 kW, the Escape20 series delivers long-term reliability, flexibility, and performance across on-grid, off-grid, and hybrid energy systems.

Featuring advanced MPPT technology and leading-edge power conversion equipment, each Escape20 system is fully integrated, modular, and customisable. Multiple cabinet configurations allow systems to be mixed and matched to suit specific project requirements while ensuring optimal performance in virtually any weather environment.

Key Features

AC Single Bay Variants – Maximum Versatility

• Ideal for all on-grid and off-grid applications
• Most flexible Escape20 configuration available
• Highly customisable for a wide range of project requirements

AC Dual Bay Variants – Increased Capacity & Scalability

• Expanded usable energy capacity via dual bay architecture
• Scalable up to 48 cabinets in on-grid or off-grid installations
• Same advanced MPPT and conversion technology across the range

High-Accuracy AC Solar Control

• Communication and frequency-controlled AC solar ramping
• Precise 1% incremental output control for BESS-managed solar
• Frequency control fallback if communications are lost or solar is remotely located

Black Start Capability

• Automatically restarts batteries after unexpected shutdowns
• Begins charging when an AC source or integrated MPPT is available
• Improves system resilience and operational continuity

Isolated Output & Phase Balancing

• Isolated output protects loads from generator or grid fluctuations
• Delivers clean, stable power 24/7
• Automatic phase balancing improves efficiency and extends equipment life

Modular, Scalable & Serviceable Design

• Fully modular and scalable architecture for medium to large projects
• Low Mean Time to Repair (MTTR)
• N+1 redundancy with hot-swappable components
• Readily accessible components for efficient on-site servicing

All-Weather & Flexible Deployment

• Three cabinet variations to suit any climate or environment
• Online UPS functionality for grid-connected applications
• Ideal for energy shifting and peak lopping use cases

Advanced Monitoring & Management

• Remote system configuration and performance analysis
• Enhances power security and system management
• Supports proactive maintenance and optimisation
