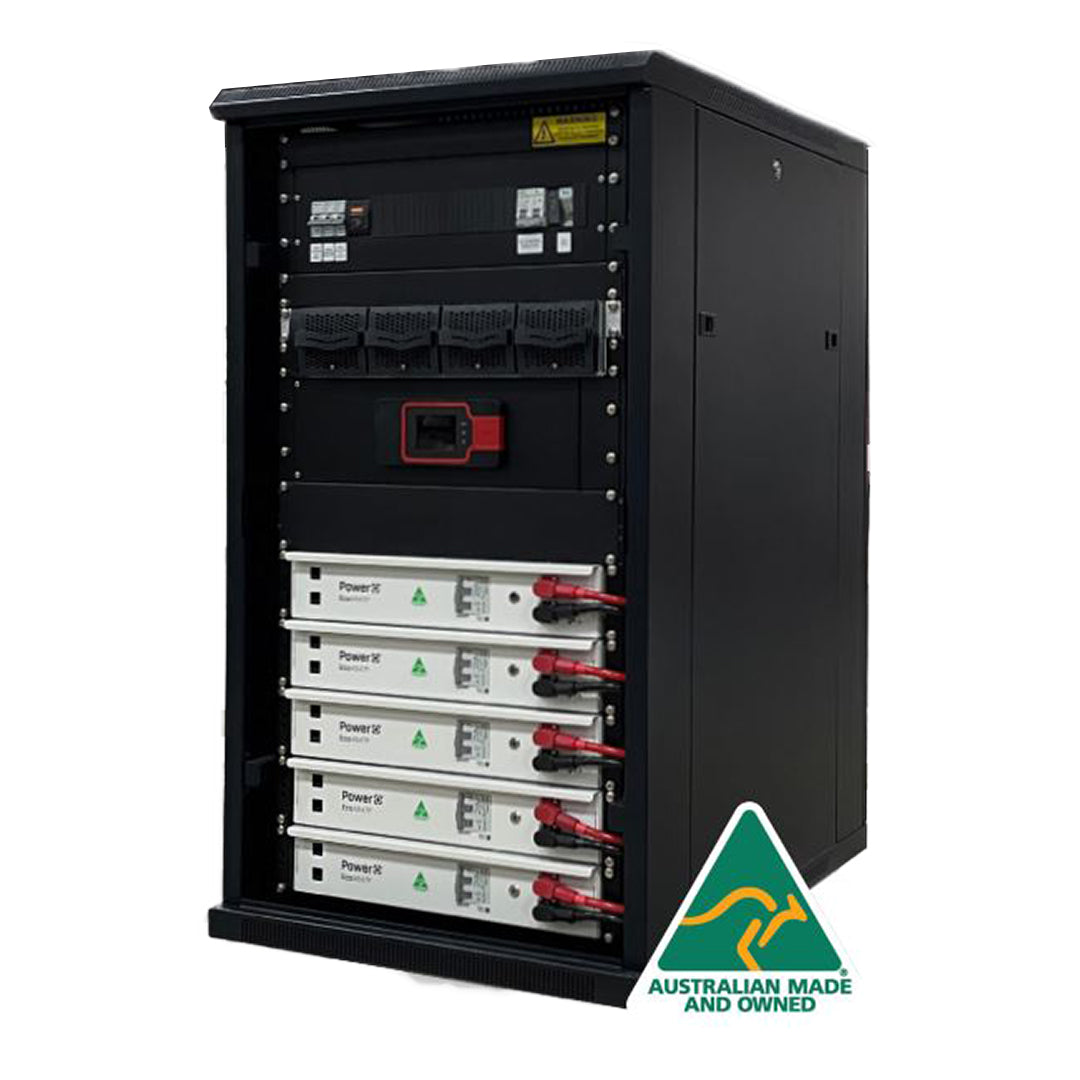

PowerPlus Escape5 IP21 9.6kW Single Phase All-In-One BESS - ESCA0510-000-000
PowerPlus Escape5 IP21 9.6kW Single Phase All-In-One BESS - ESCA0510-000-000
Description
Overview
The PowerPlus Energy Escape5 All-In-One BESS is a compact, single-phase battery energy storage and UPS solution designed for residential, small commercial, and data backup applications. Often referred to as a “Mini Escape20”, the Escape5 leverages the proven Escape20 architecture in a downsized, indoor-rated enclosure.
Pre-assembled and installation-ready, the Escape5 features 9.6 kW of inverter capacity and supports both AC-coupled PV (via Fronius or SMA inverters using Modbus communications) and DC-coupled PV via integrated MPPT. It delivers reliable on-grid or off-grid performance in a compact, serviceable format.
Key Features
Integrated BESS & UPS Design
- Single-phase all-in-one BESS and UPS solution
- Pre-assembled and installation ready
- Ideal for residential, UPS, and small data backup applications
High-Performance Power Conversion
- 9.6 kW inverter output with 12 kW surge capability
- Rack-mount industrial inverter/charger with hot-swappable technology
- Supports on-grid and off-grid operation
Flexible PV Integration
- AC-coupled PV support with Fronius or SMA inverters (no modifications required)
- Up to 20 kW of AC-coupled PV (2:1 AC coupling ratio)
- DC-coupled PV supported via integrated MPPT
Battery Compatibility & Capacity
- Requires minimum of 4 battery modules
- Compatible with PowerPlus LiFe4838P or ECO4847P batteries
- Houses up to 5 battery modules per cabinet
- Up to 19 kWh (LiFe) or 23.5 kWh (ECO) per cabinet
Compact & Expandable
- Indoor IP21-rated enclosure
- Dimensions: 1,166 mm (H) × 600 mm (W) × 800 mm (D)
- Weight: 154 kg (without batteries)
- Expandable to two cabinets (custom solutions available beyond this)
