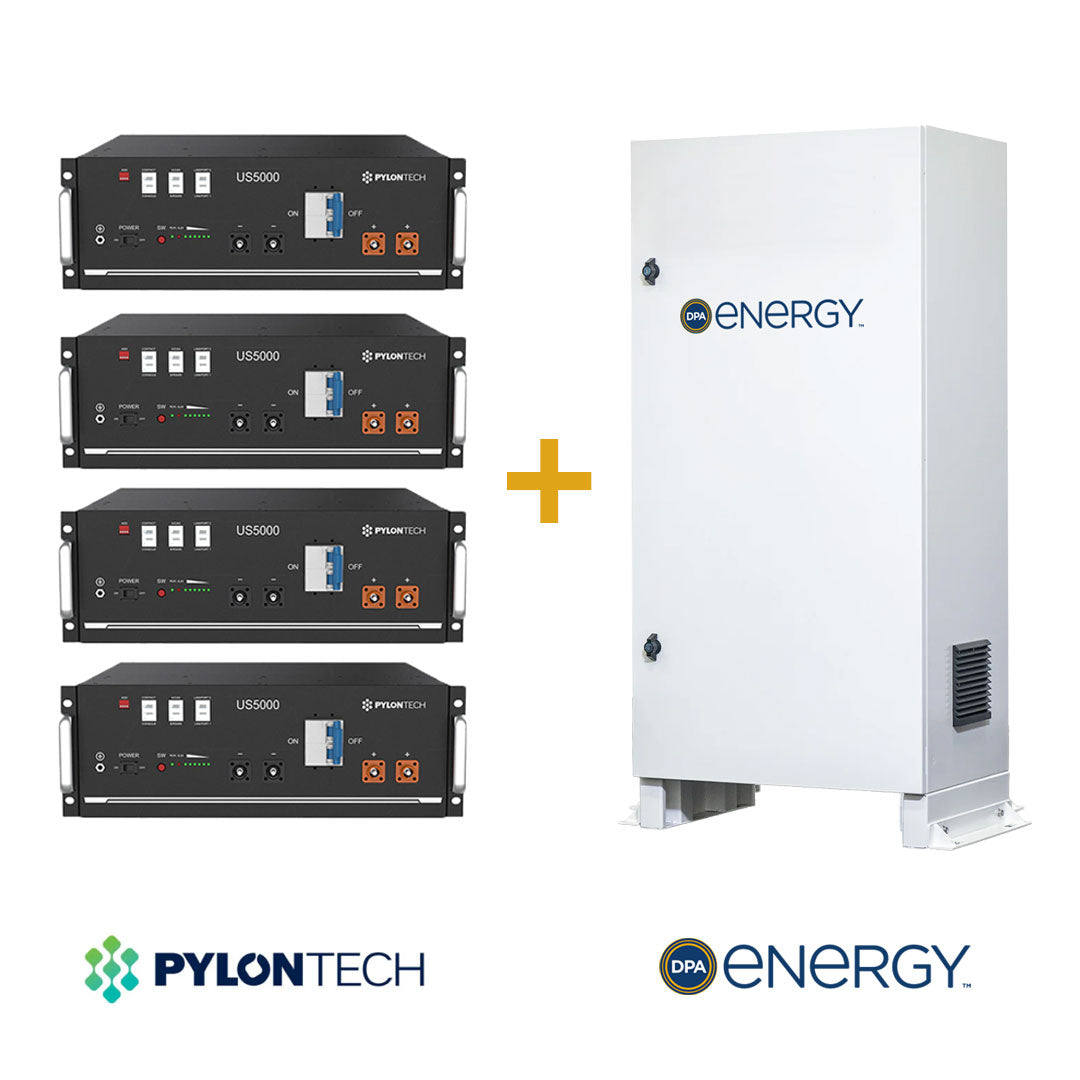

Pylontech 19.2kWh & Quad Tower Cabinet
Pylontech 19.2kWh & Quad Tower Cabinet
Description
Overview
The Pylontech US5000-B 19.2kWh Battery Bundle with Weatherproof Cabinet is a complete, ready-to-install energy storage solution designed for solar self-consumption, off-grid systems, and whole-home backup power. This bundle combines four high-performance Pylontech US5000-B lithium batteries with a purpose-built outdoor-rated cabinet for a clean, secure, and professional installation.
Built on Pylontech’s industry-leading LiFePO₄ technology, this system delivers outstanding cycle life, high efficiency, and modular expandability. The included weatherproof cabinet allows installation indoors or outdoors, making it ideal for residential and light commercial energy storage applications.
Key Features
Complete Battery Storage Bundle
- 4 × Pylontech US5000-B 48V 100Ah batteries
- Total usable storage capacity of 19.2 kWh
- Pre-assembled DC power and communication cabling
- Weatherproof cabinet designed to house four batteries
Safe & Reliable Lithium Technology
- Lithium Iron Phosphate (LiFePO₄) chemistry
- Long lifespan with excellent thermal stability
- High efficiency and consistent performance
- Low maintenance, long-term energy storage solution
Advanced Battery Management System
- Integrated BMS protection for each battery module
- Safeguards against over-voltage, over-current and temperature extremes
- CAN and RS485 communication for inverter integration
Expandable & Inverter Compatible
- Modular design allows easy future expansion
- Compatible with popular inverter brands including Victron, Deye and Growatt
- Suitable for off-grid, hybrid and backup power systems
Outdoor-Ready Installation
- Weatherproof cabinet rated for rain, dust and UV exposure
- Keeps batteries secure, organised and protected
- Ideal for sheds, garages, workshops and external installations
Technical Specifications (Per Battery)
- Nominal Voltage: 48 V DC
- Nominal Capacity: 4.8 kWh (4.56 kWh usable)
- Dimensions (L × W × H): 442 × 420 × 161 mm
- Cycle Life: >6000 cycles @ 25°C, 95% DoD
- Communication: CAN, RS485
- Certifications: CE, UL1973, UN38.3, IEC62619, UKCA
- Design Life: 15+ years
Approvals & Compliance
- CE, UL1973, UN38.3, IEC62619, UKCA certified
- Approved for use in residential and commercial energy storage systems
Warranty & Support
- 10-year manufacturer warranty
- Backed by Pylontech’s global support network
- Warranty registration recommended via Pylontech’s official support portal
Ideal Applications
- Residential and commercial solar storage systems
- Off-grid and hybrid energy installations
- Backup power for homes, sheds and workshops
- Outdoor battery installations requiring weather protection
Specifications
| Battery Model | US5000-B |
|---|---|
| Nominal Voltage | 48Vdc |
| Nominal Capacity | 4800Wh |
| Usable Capacity | 4560Wh |
| Recommended Charge/Discharge Current | 50A |
| Max Continuous Charge/Discharge Current | 100A |
| Peak Current (Peak 1) | 101~120A @ 15min |
| Peak Current (Peak 2) | 121~200A @ 15sec |
| Short-circuit Current / Duration | <4000A/2ms |
| Width | 442mm |
| Depth | 420mm |
| Height | 161mm |
| Weight | 39kg |
| Single String Quantity | 16pcs |
| Communication Port | RS485,CAN |
| Working Temperature – Charge | 0~55°C |
| Working Temperature – Discharge | -10~55°C |
| Shelf Temperature | -20~60°C |
| Cooling Type | Natural |
| IP Rating of Enclosure | IP20 |
| Humidity | 5%~95%RH |
| Altitude | <4000m |
| Design Life | 15+Years@25°C |
| Cycle Life | >6,000@25°C |
| Certifications | IEC62619,IEC63056,CE,UN38.3,UL1973,UKCA,CEC |
