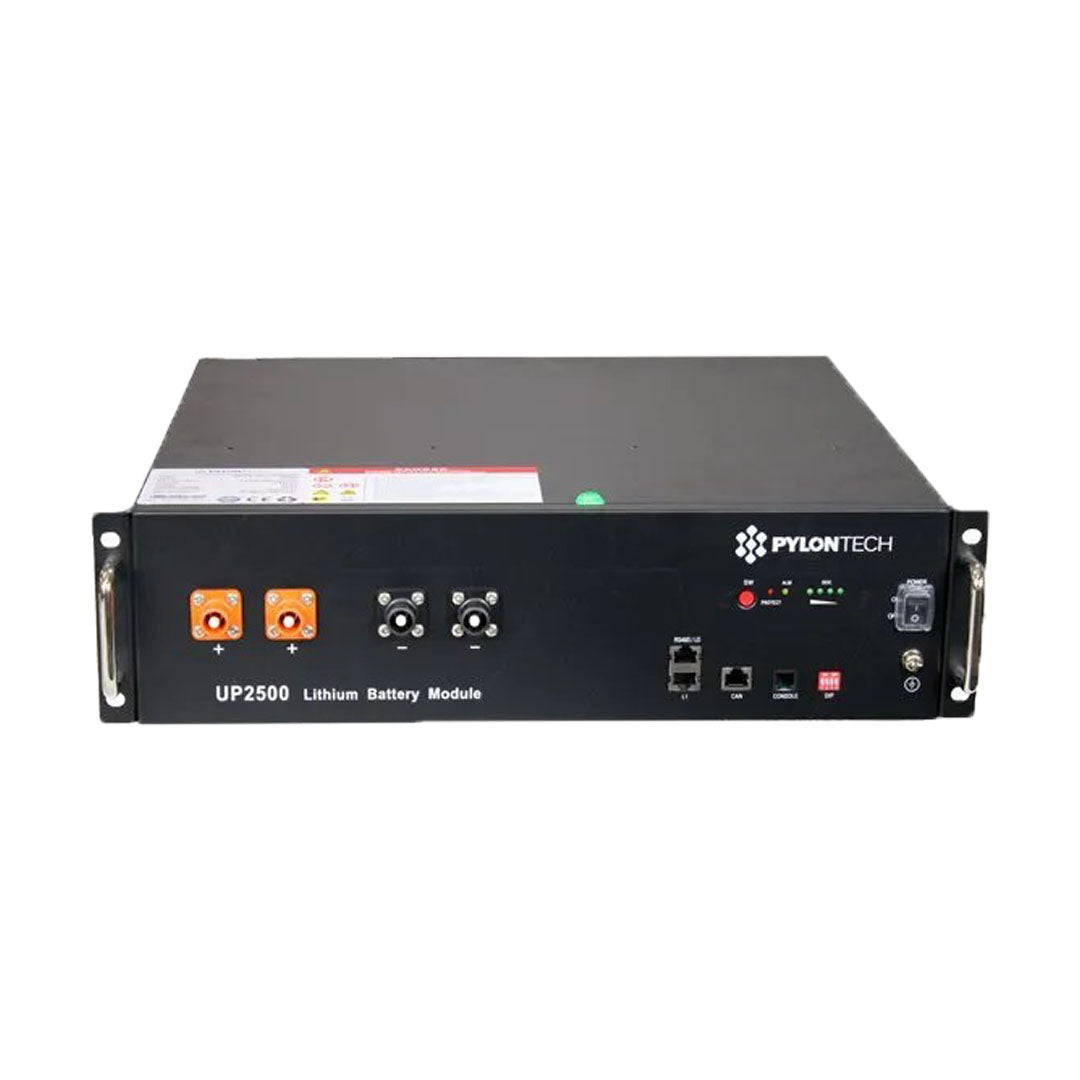

Pylontech UP2500:
The Pylontech UP2500 is geared towards general backup systems that can be used for office lighting, computer systems and/or data centres. These lower voltage units can be deployed in various environments such as banks, hospitals, schools, railway stations, airports and throughout the telecommunications industry.
The Pylontech IP55 has a 48V fan, so the 24/48 converter is needed to run the fan when using 24V batteries. Victron ORION-Tr 24/48-2.5A (120W) DCDC converter.
Specifications:
Nominal Voltage (V): 24
Nominal Capacity (Wh): 2840
Usable Capacity (Wh): 2500
Dimension (mm): 442x420x120
Weight (Kg): 26.5
Features:
- The expected design life is up to 10+ years, Warranty of 10 years (>6000 cycles with 80% end-of-life capacity)
- Greater depth of discharge (DOD 90%)
- Usable capacity of 2.5kWh @ 25.6VDC
- Working temperatures of between 0°C to 50°C
- The internal molecular structure of the LFP batteries is more stable and therefore safer, allowing an increase in the combustion temperature of 600°C compared to 300°C relative to NMC and LCO
- Cell Balance Function
- Soft Start Function
- Protection - Voltage / Over Charge / Over Discharge / Over Current / Short Circuit / Temperature
Spec sheet here:
https://www.master-instruments.com.au/file/66085/1/Pylontech-UP2500.pdf
Manual here:
https://www.master-instruments.com.au/file/66085/2/Pylontech-UP2500.pdf
Warranty here:
https://www.master-instruments.com.au/files/battery_information/pylontech_product_warranty_up2500_series_standard_2020__1_.pdf
Note: DPA recommends end user registers battery warranty at this link https://en.pylontech.com.cn/service/support/
