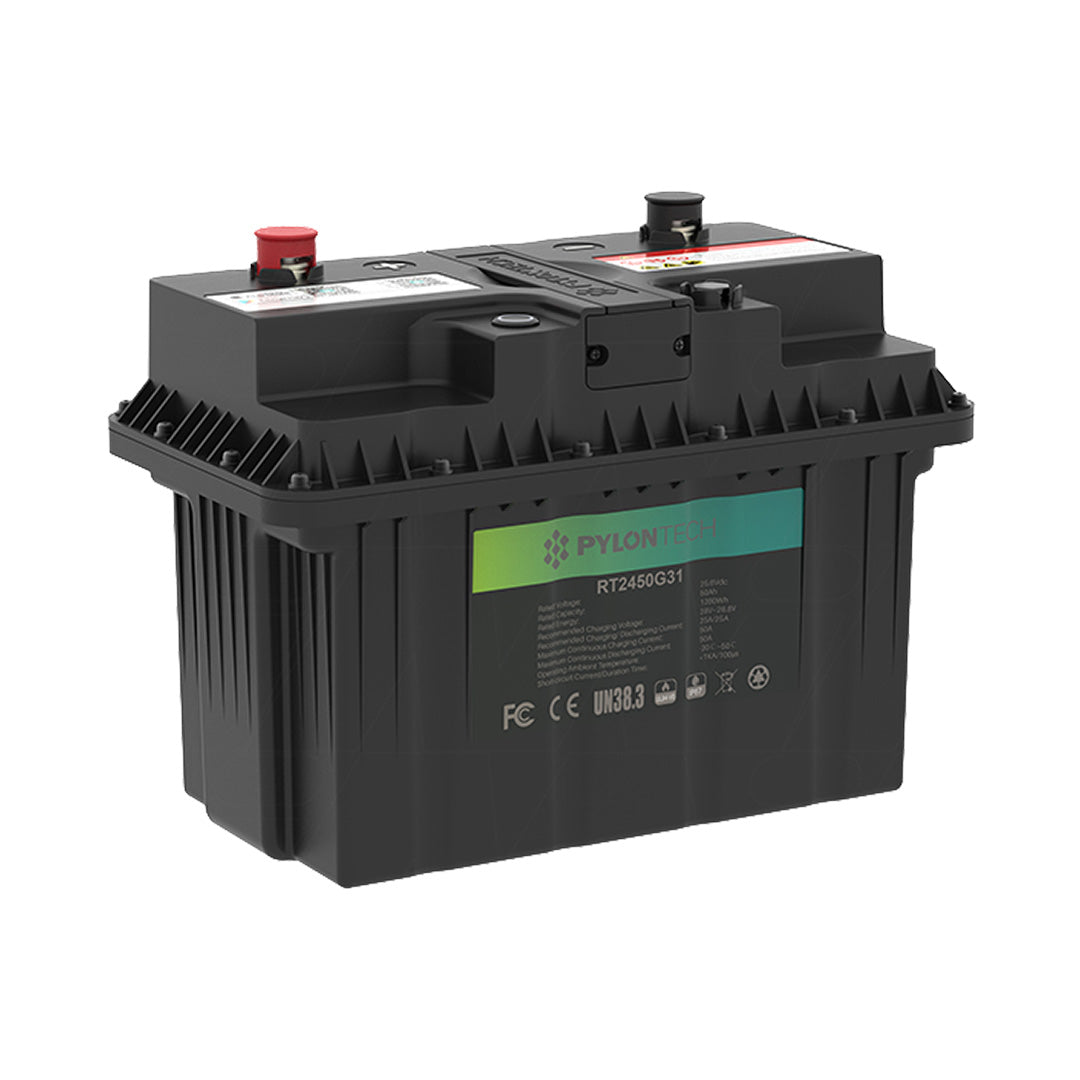

Pylontech RT2450G31 24V 50Ah LiFePO4 Battery:
Built on the foundations of the extremely popular RT12100 12 volt series, this 24V model has been developed to provide all the same features at the higher voltage.
Developed to provide adaptability and scalability to systems in Marine, 4x4 & recreation vehicles, stand-alone infrastructure and off-grid deep cycle applcations.
The intelligent BMS provides the ultimate in safety with temperature protection, over-voltage, over-current and short-circuit protection to ensure safe operations, high reliability and zero maintenance to extend service life.
The advanced communication protocols cater to both bluetooth monitoring & configuration via a smart phone, and RS485/CAN integration (via the KIT-C1 comms box*) into existing power systems and marine glass bridges. *requires the optional KIT-C1 communications box - available separately. The RT2450G31 wirelessly links all batteries within the system in a "master/slave" scenario to ensure optimum performance.
Scalability:
A 24V system (1S) up to 16 in parallel
A 48V system (2S) up to 8 in parallel
Features:
Applications:
RT2450-G31 is designed to replace deep cycle lead-acid batteries. The battery is perfect for recreational
vehicles (RV), marine (boats), trucks, cabins, and other
off-grid deep-cycle applications.
High Reliability:
In case of system failure, the battery will actively cut off the external input and output to ensure safety.
App:
The built-in Bluetooth module allows real-time monitoring via mobile devices.
2S8P/1S16P:
Up to 16 batteries in 2S8P/1S16P connection, building a battery system with a max. energy output of 20.48 kWh.
4000+:
More than 4,000 lifecycles to maximum your ROI.
2C@30S:
The battery can provide an inrush current of 2C for up to 30 seconds.
IP67:
High dust and water resistance allows the battery to work in harsh outdoor environments.
Communication Expansion:
Supports the use of the Kit-C1 communication box to extend external communication and control functions of batteries, such as CAN communication, RS485 communication, and dry contacts.
Specifications:
- Voltage (V) 25.6V
- Capacity (Ah) 50Ah
- Watt Hour (Wh) 1280Wh
- Chemistry LiFePO4 (Lithium Iron Phosphate)
- Cycle Life >4000 cycles (80% DoD @ 25°C)
- Max. continuous discharge current 50A
- Max. pulse discharge current 100A (30 seconds)
- Charge Voltage 28.0 - 28.8V
- Max. continuous charge current 50A
- Operating discharge temperature -20°C to +50°C
- Operating charge temperature 0°C to +50°C
- Storage temperature -20°C to +60°C
- Short circuit protection Yes
- Ingress Rating IP67 rating
- Series connection allowed Up to 2S
- Parallel connection allowed Up to 16P @ 24V; up to 8P @ 48V
- Case structure Rugged mechanical design
- Certifications UN38.3 approved, TELEC, FCC, Bluetooth SIG
- Warranty 5 years
- Size G31
Data Sheet:
https://link.master-instruments.com.au/files/data_sheets/RT2450G315653.pdf
Manual:
https://link.master-instruments.com.au/files/data_sheets/RT2450G317865_2.pdf
