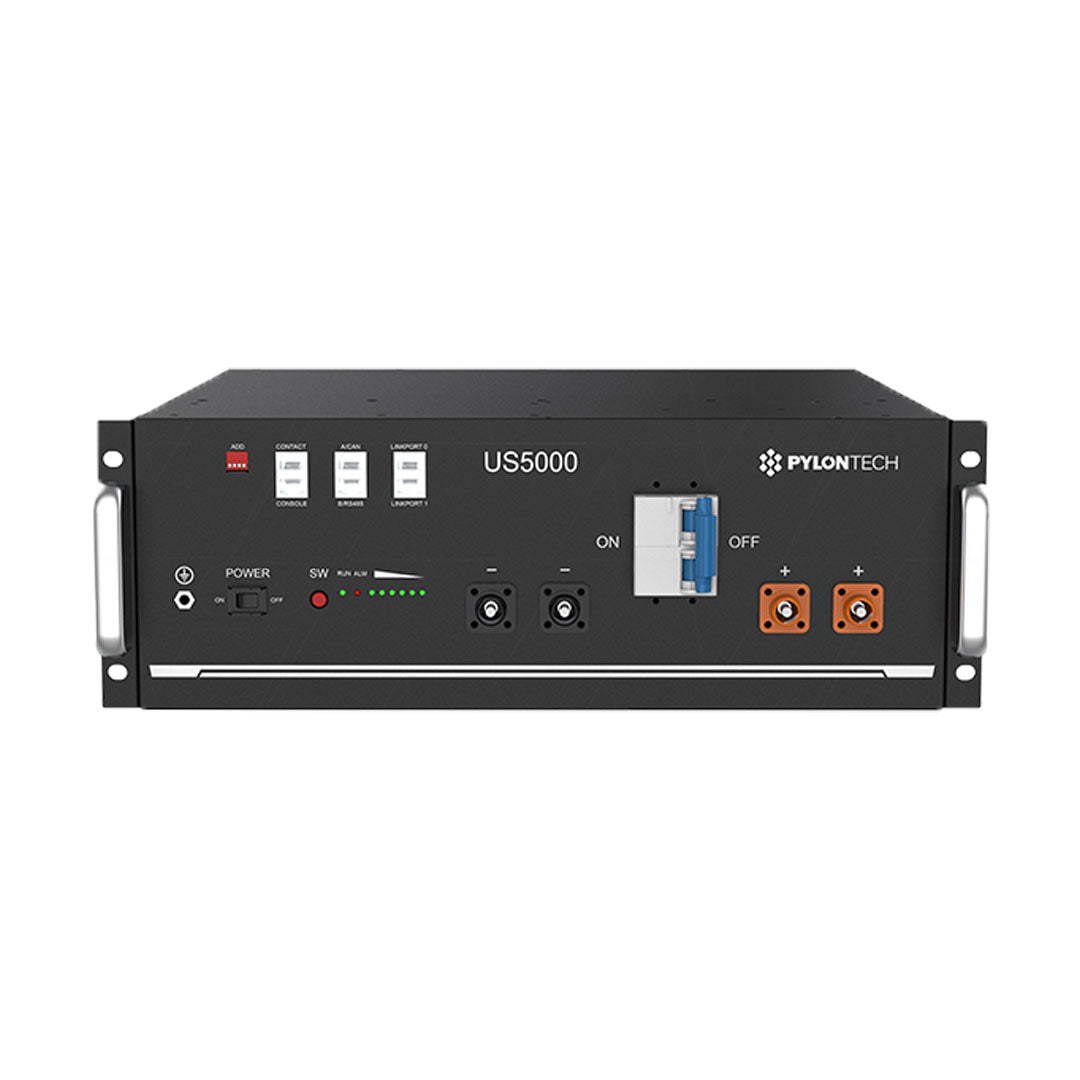

Pylontech 48V 4.8kWh LiFePO4 Battery - US5000-B

Overview

The Pylontech US5000-B is the latest and highest-capacity battery in Pylontech’s HESS (Home Energy Storage System) range. Designed with long service life, high energy density, and excellent power capability, the US5000-B reflects Pylontech’s strong technical expertise and deep understanding of end-user requirements.

Manufactured using Pylontech’s in-house lithium iron phosphate (LiFePO₄) cells and proprietary BMS technology, the US5000-B delivers exceptional safety, reliability, and scalability. Its modular architecture allows flexible system sizing from residential installations through to large-scale commercial energy storage systems.

Key Features

High-Performance Battery Design

• 4.56 kWh usable capacity per battery module
• >6000 cycles at up to 95% depth of discharge
• 15+ year design life for daily cycling applications
• Safest lithium chemistry – Lithium Iron Phosphate (LiFePO₄)

Power & Scalability

• Up to 9.5 kW peak power output per module (15 seconds)
• Up to 16 modules per string without LV-HUB
• Up to 6 strings of 16 batteries per LV-HUB
• Scalable system capacity from 4.8 kWh to 1.704 MWh

Integrated Battery Management

• Integrated BMS – no external battery management unit required
• Pre-charge function to protect ESS from surge currents
• Real-time monitoring of voltage, current, temperature, and state of charge

Installation & System Integration

• Standard 19" rack-mountable design (4RU / 161 mm height)
• Compatible with racks, cabinets, or optional floor-mount feet
• Simple buckle fixing system reduces installation time and cost
• Backwards compatible with existing Pylontech US Series batteries

Wide Inverter Compatibility

• Compatible with most leading hybrid inverters
• Communication via CAN and RS485 protocols

Operating Environment

• Operating temperature range: -10°C to 55°C
• Charging: 0°C to 55°C
• Discharging: -10°C to 55°C
