Pylontech External Cable Kit - PYL.CABLEKIT

Pylontech External Cable Kit - PYL.CABLEKIT

Please sign in to see pricing
  • Battery-to-inverter cable kit – designed specifically for Pylontech lithium systems
  • – suitable for common residential ESS configurations Up to 100A continuous rating
  • Complete power & data solution – includes both DC power and communication cables
  • Pre-sized for Pylontech systems – simplifies installation and commissioning
View full details
  • Description
  • Downloads

Description

Overview

The Pylontech Cable Kit – Max 100A is a purpose-built connection kit for linking Pylontech lithium batteries or battery banks to an inverter/charger. It provides correctly sized DC power cables and data communication cables to ensure safe, reliable, and compliant system installation.

This cable kit is designed to match common Pylontech battery configurations, reducing installation time and eliminating the need for custom cable fabrication.

Key Features

Electrical Performance

  • Continuous current rating: 100A
  • Peak current capacity: 120A
  • 4 AWG DC power cabling for low voltage drop and high reliability

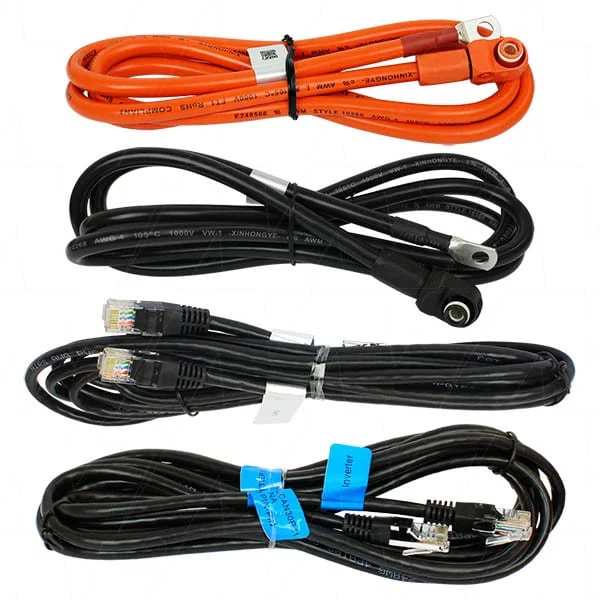

Cable Contents

  • 2 × 2 metre DC power cables (4 AWG)
  • 2 × 3 metre data communication cables

Battery Compatibility & Sizing Guide

  • 1 × cable kit per Pylontech US5000-B
  • 1 × cable kit per 3 × Pylontech US3000-C
  • 1 × cable kit per 2 × Pylontech UP2500

Installation Benefits

  • Correctly sized and matched for Pylontech systems
  • Reduces installation complexity and labour time
  • Ensures reliable power delivery and data communication
