Pylontech Ground Mount Installation Kit for use with Pelio Energy Storage System:

The Pylontech KIT G Ground Mount Kit is suitable for mounting 1 to 4 Pelio-L Modules - 200KG Maximum

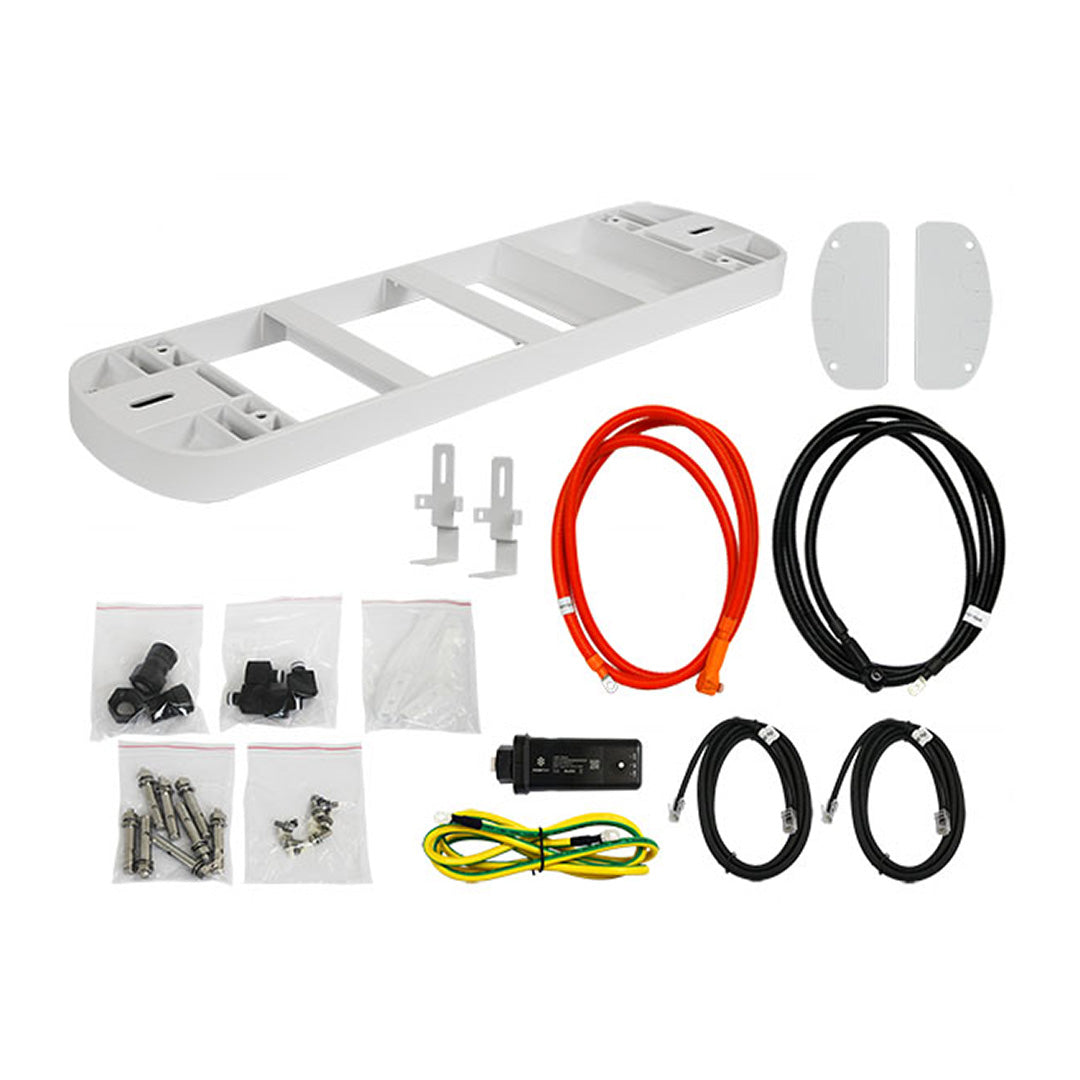

The KIT G comes supplied with:

1 x Mounting Base

2 x Anti-Tipping Brackets

2 x Wiring Brackets

2 x Module Top Covers

1 x Positive power cable - 2.5m 4AWG

1 x Negative power cable - 2.5m 4AWG

1 x Grounding Cable - 2.0m 6AWG

1 x CAN Communications Cable RJ45 - 2.5m

1 x RS485 Communications Cable RJ45 - 2.5m

1 x WIFI Block

4 x Expansion Screws M8*60

1 x Hexagon Socket Screw M5*10

1 x Cross Screw M4*6

5 x Plastic Cross Screw

4 x Power Terminal Covers

2 x RJ45 Terminals
