Pylontech IP55 4-6x Outdoor Battery Storage Cabinet - WD1380-LV

Overview

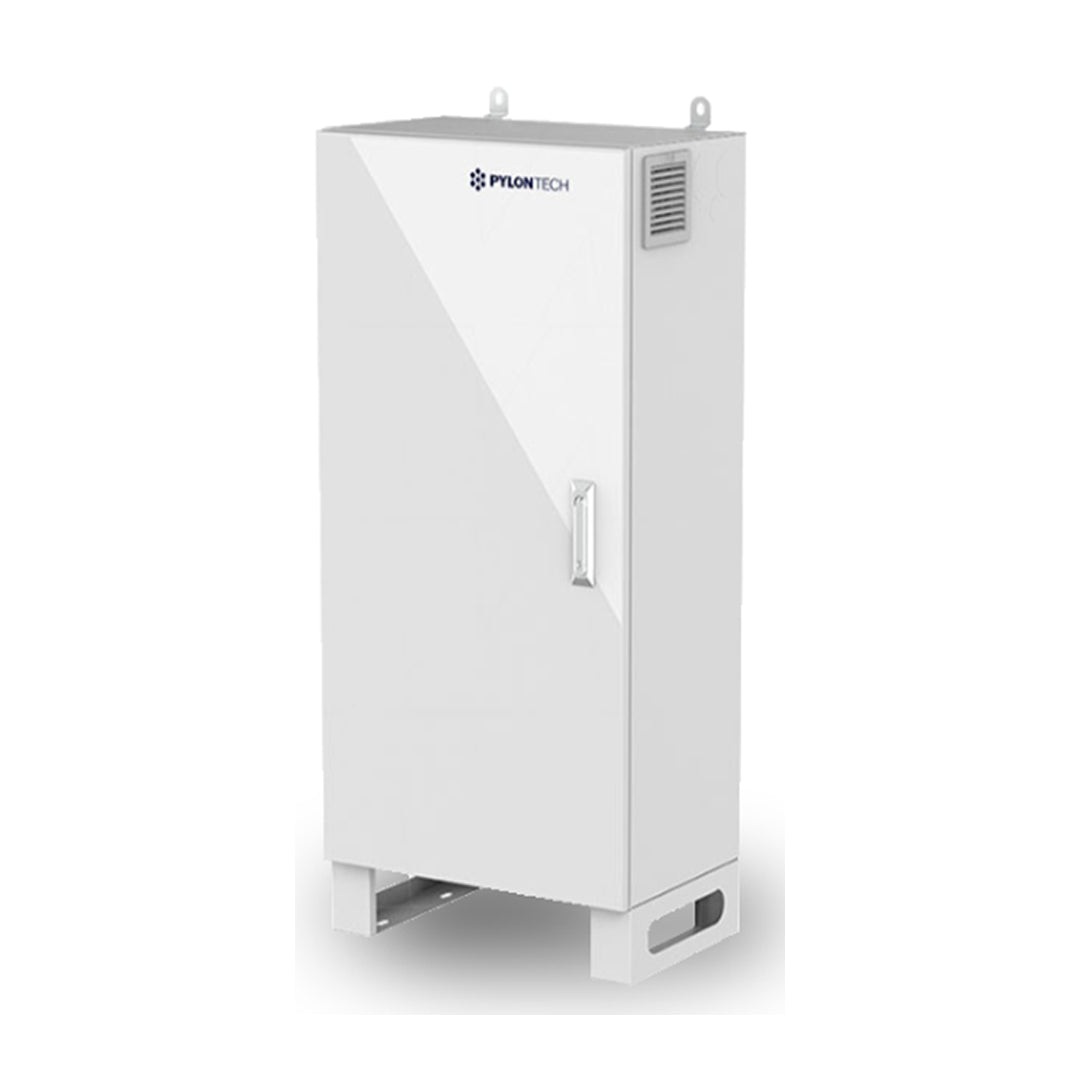

The Pylontech WD1380-LV Energy Storage Cabinet is an IP55-rated outdoor enclosure designed to safely house Pylontech low-voltage battery systems. It provides a robust, weather-resistant solution for installations where indoor battery placement is not suitable.

The cabinet is supplied pre-wired and terminated and includes an IP55-rated exhaust fan to assist with thermal management. While optimised for 48V low-voltage systems, the WD1380-LV can also be used with the Pylontech UP2500 24V range with additional components.

Key Features

Outdoor-Rated Construction

• Robust cabinet construction for long-term outdoor use
• IP55 waterproof seals to reduce dust and water ingress
• Waterproof threaded entry points for cable management

Cooling & Electrical Configuration

• Integrated IP55-rated exhaust fan for battery cooling
• Supplied with a standard 48V DC fan
• For UP2500 (24V) batteries, a Victron ORION-Tr 24/48-2.5A (120W) DC-DC converter is required

Security & Installation

• 3-point locking cabinet door for enhanced security
• Pre-wired and terminated to reduce installation time

Battery Compatibility

• Up to 8 × Pylontech US2000B / US2000 Plus lithium batteries
• Up to 6 × Pylontech US3000 lithium batteries
• Up to 6 × Pylontech UP2500 lithium batteries
• Up to 4 × Pylontech US5000-B lithium batteries

External Dimensions

• Height: 1380 mm
• Width: 600 mm
• Depth: 450 mm
