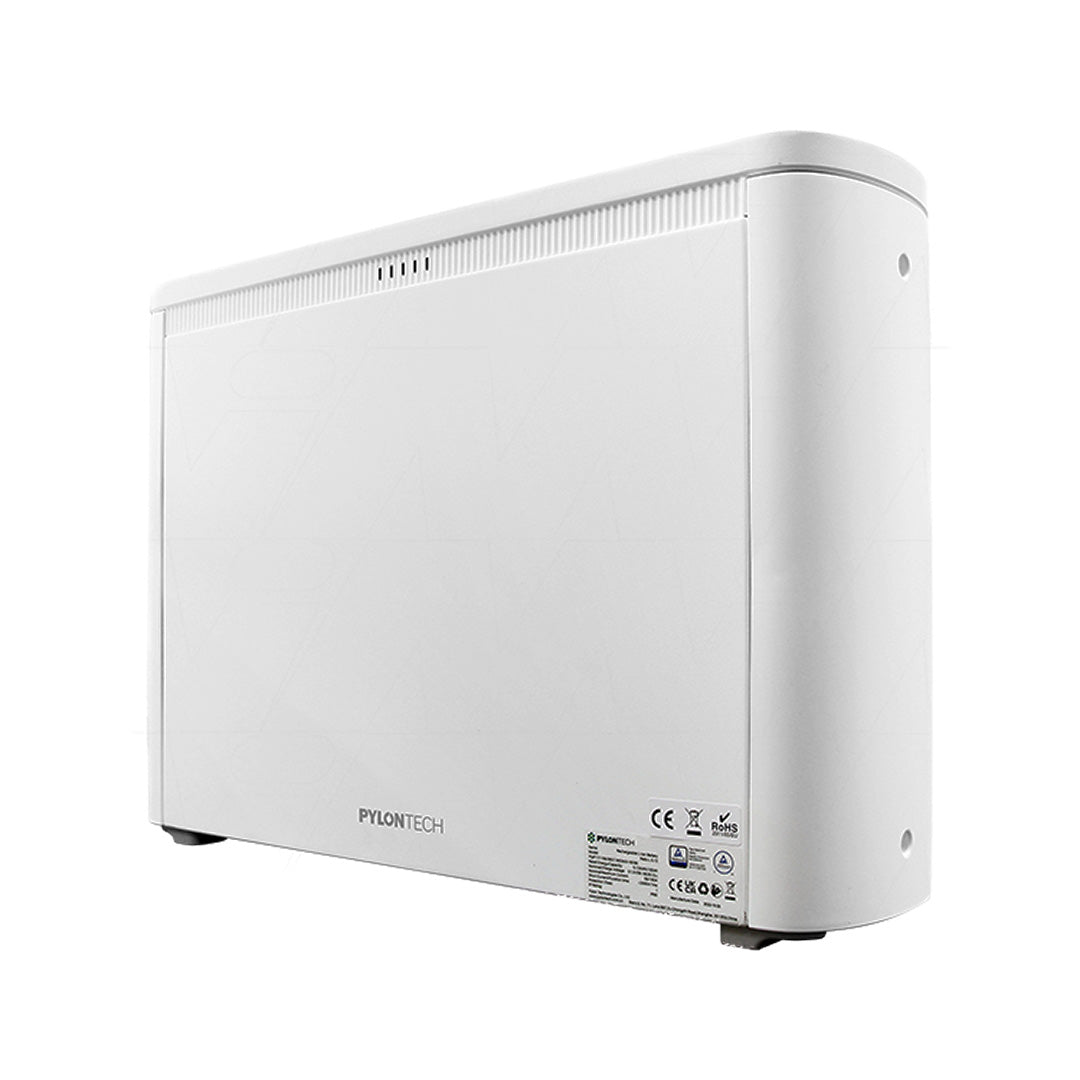

Pylontech PELIO-L 51.2V 100Ah 5.12kWh Slim-line ESS Module:
Pelio is a sleek & minimalist battery storage system specifically developed for modern residential properties.
With it's white steel facade, slim-line footprint and Indoor or outdoor and floor or wall mounting capabilities, the Pelio blends seamlessly into any residential or small commercial installation.
Scalable from 5.12kWh up to 102.4kWh, 24/7 monitoring capability and advanced battery management system, The Pelio BESS system will provide safe & reliable well into the future.
Note: This is the battery module only and requires either a Ground Installation Kit or Wall Installation Kit to mount upon.
Features & Benefits:
- Scalable & Modular design for systems 5.12kWh to 102.4kWh (up to 20 modules)
- Lightweight and Slimline design
- High Capacity 51.2V 100Ah modules 1C discharge capability
- Cycle life: >8000 cycles @ 25°C with 95% DoD for daily cyclic applications
- Advanced BMS with over discharge, over charge, over current and high/low temperature protection to ensure safe operation
- IP65 Rated and suitable for Indoor or Outdoor installation
- Floor or Wall mountable to adapt to any location (Wall - 3 modules max. Ground - 4 modules max)
- 24/7 Wifi Monitoring with simple to use mobile App
- Monitor your energy production and consumption in real time
- 15 year design life
- Compatible with many available Hybrid inverters
- Meets international standards: IEC62619, IEC63056, IEC62040, IEC62477-1, UL1973, U1642,UL9540A, VDE2510-50, IEC61000-6-2, IEC61000-6-3, UN38.3
- Clean Energy Council Approved (CEC)
Warranty: The Pelio-L comes with a standard warranty of 10 years.
Noark Hybrid Inverters & Pylontech Batteries:
Noark Hybrid Inverters, when paired with some Pylontech batteries, are eligible for a number of state-based rebate schemes. This product is featured in one or more schemes.
Brochure here:
https://files.dpa.energy/wp-content/uploads/2025/10/Pylontech-PELIO-L-Brochure.pdf
Data Sheet here:
https://files.dpa.energy/wp-content/uploads/2025/10/Pylontech-PELIO-L-Data-Sheet.pdf
Manual here:
https://files.dpa.energy/wp-content/uploads/2025/10/Pylontech-PELIO-L-Manual.pdf
Warranty here:
https://files.dpa.energy/wp-content/uploads/2025/10/Pylontech-PELIO-L-Warranty-Guide.pdf
Inverter Compatibility:
https://files.dpa.energy/wp-content/uploads/2025/10/Pylontech-ESS-Inverter-Compatibility.pdf
Pylontech / Victron Compatibility:
https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom
Video here:
https://www.youtube.com/watch?v=aTxHDN-0E1E
