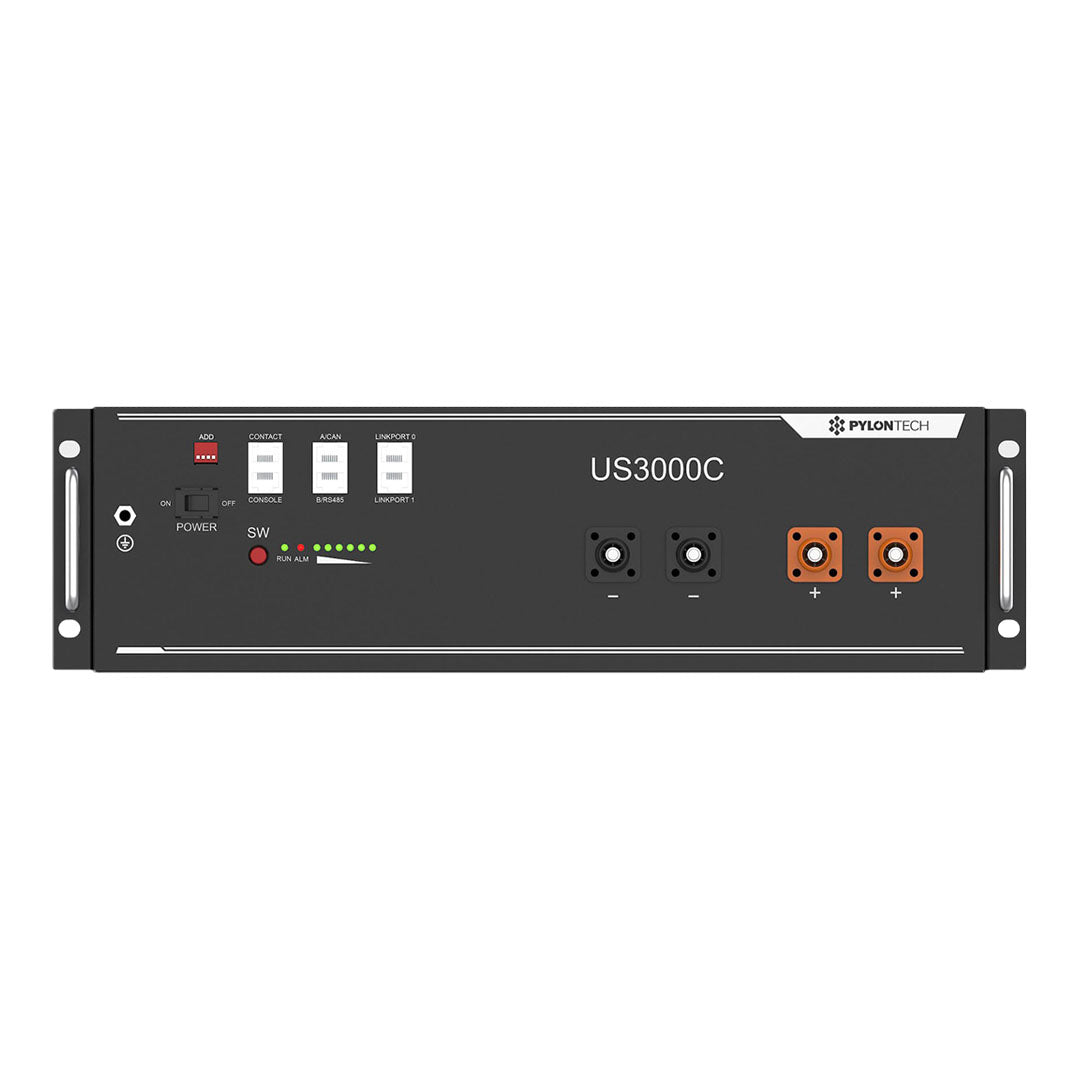

Pylontech US3000C 48V 3.55kWh LiFePO4 Battery - 63000-004C
Pylontech US3000C 48V 3.55kWh LiFePO4 Battery - 63000-004C
Please sign in to see pricing
Description
Overview
Limited-Time Offer: $100 off Pylontech US3000-C.
The Pylontech US3000-C is the latest lithium battery Energy Storage System (ESS) module from Pylontech, engineered to deliver a longer service life with higher power output and energy density per module.
With high usable capacity, compact dimensions, and simple installation, the US3000-C is suitable for both residential systems and scalable commercial storage solutions. Its modular design allows systems to grow alongside energy demands while maintaining reliability and performance in high power environments.
Key Features
High-Capacity & Scalable Design
- Nominal capacity of 3.55 kWh with 3.2 kWh usable energy
- Up to 16 US3000-C units per string without an LV_HUB
- Supports up to 6 strings of 16 batteries per LV_HUB for large systems
Long Life & Warranty
- Expected design life of 15+ years
- 10-year warranty with >6000 cycles at 80% end-of-life capacity
- 90% depth of discharge for maximum usable energy
Safe & Stable Battery Chemistry
- Lithium iron phosphate (LFP) chemistry for enhanced safety
- Higher thermal stability with combustion temperature up to 600°C
- Increased safety compared to NMC and LCO chemistries
Advanced Battery Management System
- Integrated BMS for cell protection and performance optimisation
- Real-time alarm reporting and system monitoring
- Designed for reliable long-term operation
Environmental & Installation Details
- Operating temperature range: 0°C to 50°C
- Compact form factor: 442 × 420 × 132 mm
- Weight: 32 kg
Specifications
| Model | US3000C |
|---|---|
| Nominal Voltage | 48Vdc |
| Nominal Capacity | 3552Wh |
| Usable Capacity | 3374Wh |
| Recommended Charge/Discharge Current | 37A |
| Max Continuous Charge/Discharge Current | 37A |
| Peak Current (Peak 1) | 74–89A @ 60sec |
| Peak Current (Peak 2) | 90–200A @ 15sec |
| Short-circuit Current / Duration | <4000A / 2ms |
| Width | 442mm |
| Depth | 420mm |
| Height | 132mm |
| Weight | 32kg |
| Single String Quantity | 16pcs |
| Communication Port | RS485, CAN |
| Working Temperature – Charge | 0~50°C |
| Working Temperature – Discharge | -10~50°C |
| Shelf Temperature | -20~60°C |
| Cooling Type | Natural |
| IP Rating of Enclosure | IP20 |
| Humidity | 5%~95%RH (No condensation) |
| Altitude | <4000m |
| Design Life | 15+years (25°C) |
| Cycle Life | >6,000cycles @ 25°C |
| Certifications | UL1973, UL1642, UL9540A, IEC62619, IEC63056, IEC61000-6-2/3, UN38.3 |
