Schneider Electric 20A 2 NO Contactor 230V - S-EA9C20862

Overview

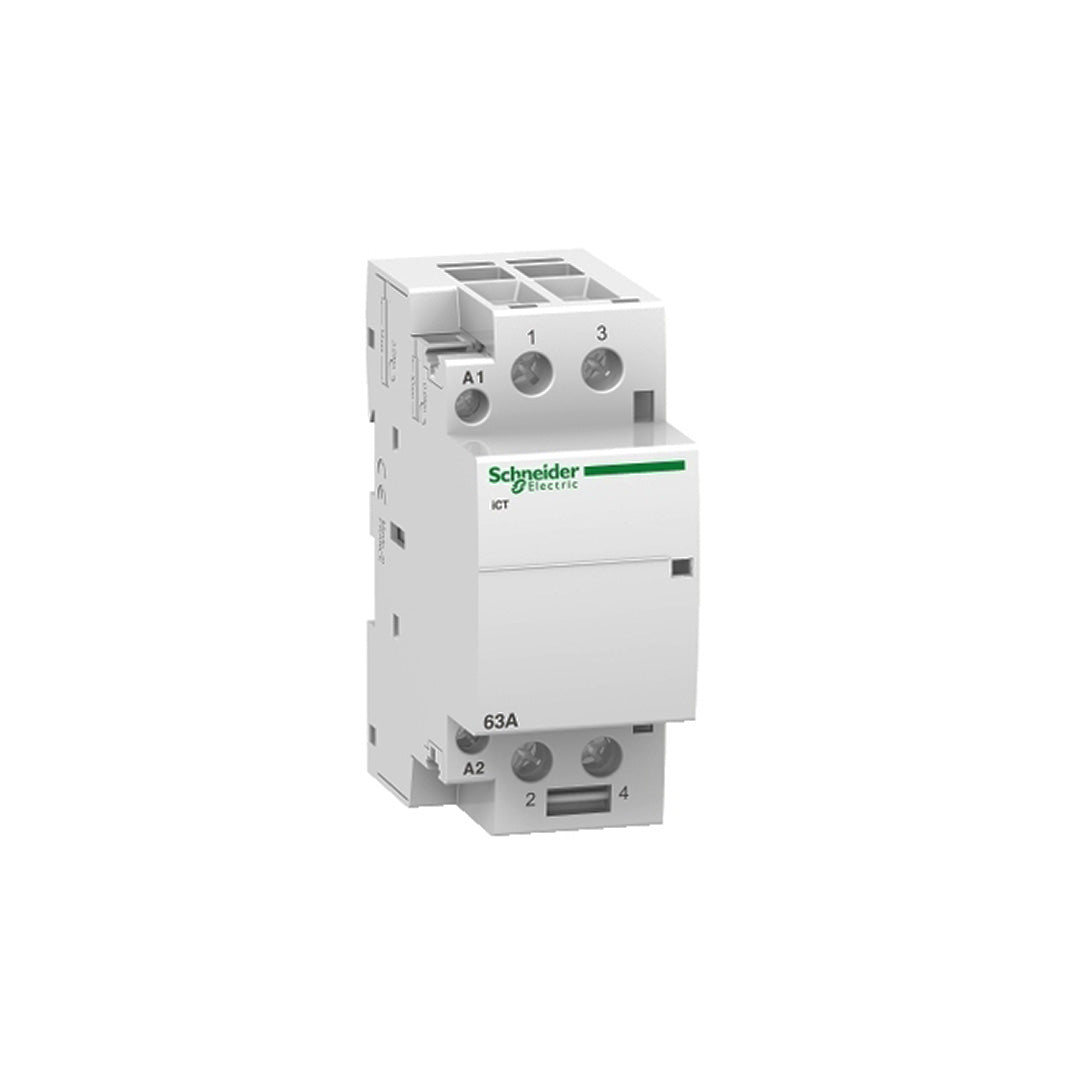

The Schneider Electric Acti9 iCT 63A Modular Contactor is a reliable, remote-controlled switching device designed for residential, commercial, and light industrial applications. Featuring a 2-pole configuration with two normally open contacts, the Acti9 iCT enables efficient control of electrical loads up to 63 A.

Commonly used in control circuits for lighting, small motors, and HVAC systems, the Acti9 iCT integrates seamlessly with the Acti9 range of control auxiliaries. Its compact DIN-rail mounted design makes it ideal for modern distribution boards and energy management systems.

Key Features

Reliable Load Control

• 2-pole contactor with 2 normally open contacts
• Rated current of 63 A (AC-7a) and 20 A (AC-7b)
• Suitable for lighting, HVAC, and small motor control

Electrical Performance & Endurance

• Operational voltage up to 250 V AC
• Electrical endurance up to 100,000 cycles (AC-7a / AC-1)
• Maximum switching frequency of 6 operations per minute

Safety & Compliance

• Compliant with IEC/EN 61095 standard
• Rated insulation voltage (Ui) of 500 V AC
• Impulse withstand voltage (Uimp) of 4 kV

Compact & Practical Design

• DIN-rail mountable with 4 × 9 mm module width
• Compact dimensions: 85 mm × 36 mm × 68.5 mm
• White enclosure (RAL9003) for clean switchboard integration

Energy Storage & Backup Compatibility

• Approved for use with BYD HVS and HVM battery systems
• Suitable for Fronius GEN24 Full Backup (EPS) configurations
• Supports reliable system isolation and backup operation
