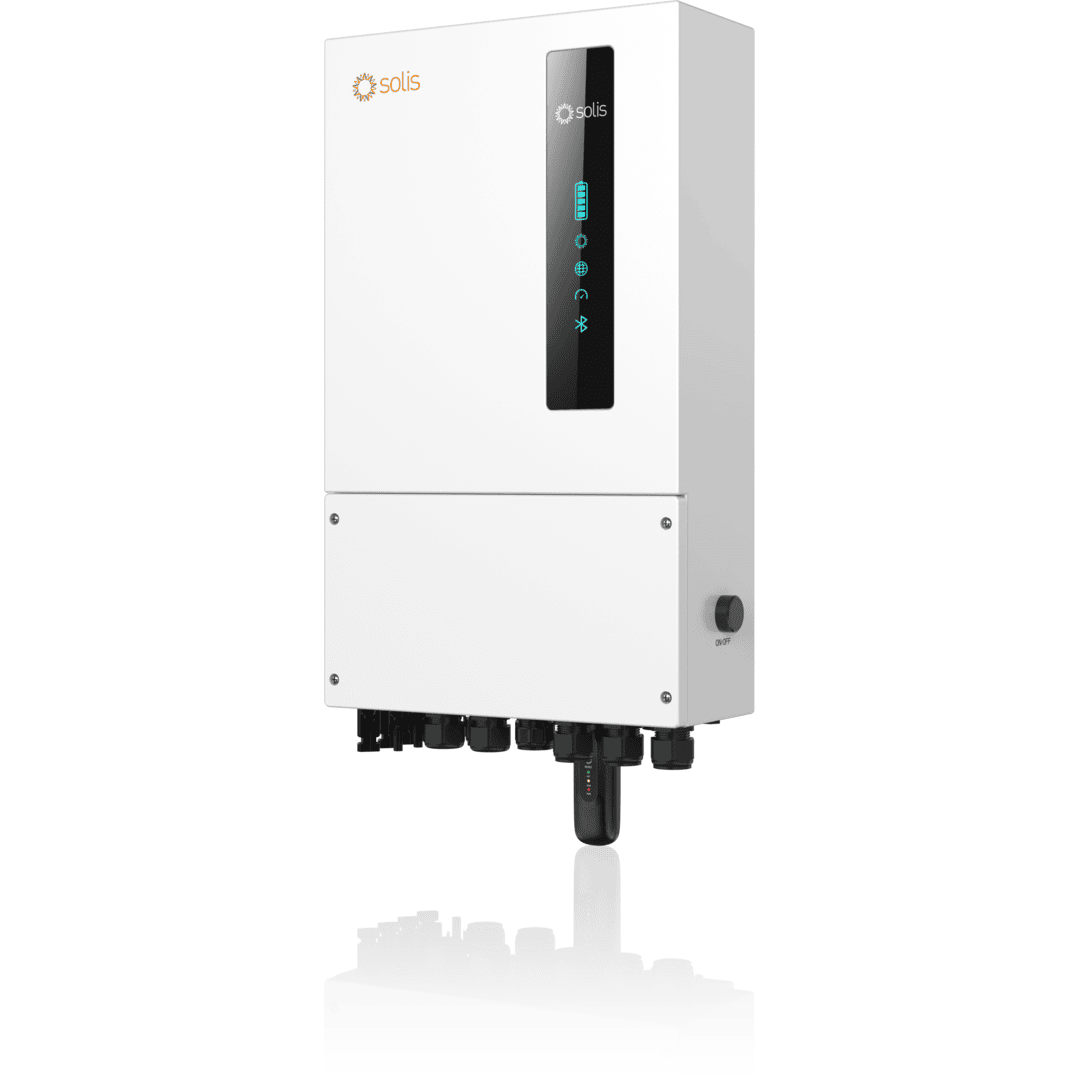

Solis Single Phase 8kW Low Voltage Energy Storage Inverter - S6-EH1P-8K-L-PLUS-AU

Overview

The Solis S6-EH1P(3–8)K-L-PLUS series is a single-phase low-voltage energy storage inverter purpose-built for residential solar PV and battery systems. Available in 3 kW, 5 kW, 6 kW, and 8 kW variants, it delivers flexible system sizing for a wide range of household energy needs.

Designed to support high-power PV modules and advanced battery management, the S6-EH1P(3–8)K-L-PLUS series enables efficient self-consumption, backup power capability, and future-ready smart energy control. With parallel expansion support, it can form larger single-phase or three-phase systems for demanding residential applications.

Key Features

Residential Hybrid Energy Control

• Single-phase energy storage inverter for residential use
• Supports solar PV, battery storage, grid, and generator integration
• UPS-level switching for seamless backup power operation

Low-Voltage Battery Compatibility

• Compatible with mainstream lithium-ion and lead-acid batteries
• Integrated battery management and protection functions
• Designed to extend battery life through intelligent charge control

Optimised Solar Input Performance

• Supports up to 32 A MPPT input current
• 160% PV input capacity for maximum solar utilisation
• Designed for high-power PV panels

Smart Energy Management

• AI-based charging and discharging based on Time-of-Use (TOU) tariffs
• 6-stage timed charge and discharge scheduling
• Seamless integration with VPP and EMS platforms

Flexible & Scalable System Design

• Supports multiple inverters in parallel
• Configurable as single-phase or three-phase systems
• Expandable up to 48 kW total system capacity
• Supports AC coupling for system expansion

Simple Installation & Configuration

• Integrated 7-inch LCD display for intuitive local control
• Bluetooth app support for fast commissioning and setup
• Independent generator interface for enhanced backup capability
