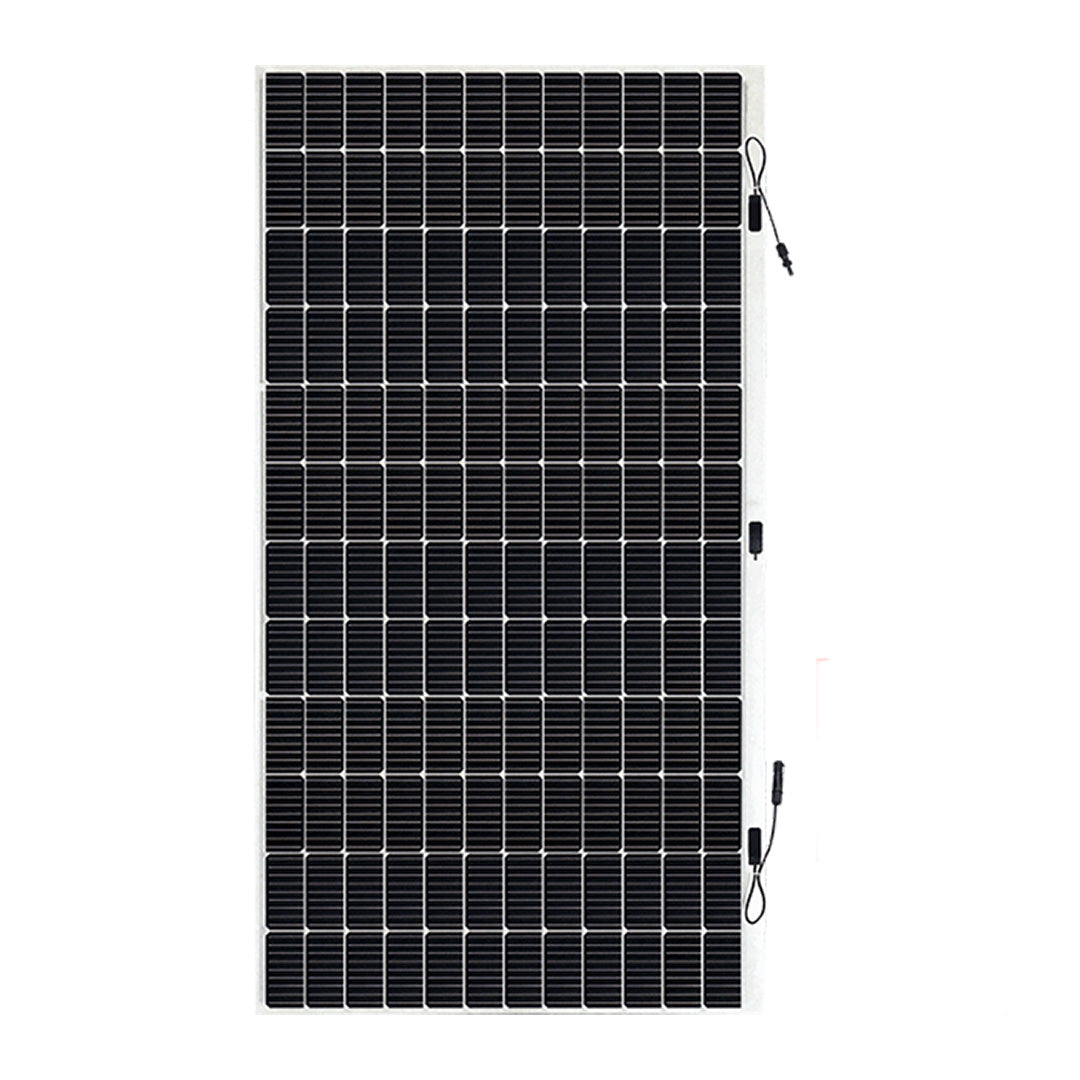

Sunman 24V 430W eArc Flexible Monocrystalline Solar Panel - SMF430F-12X12UW

Overview

The Sunman eArc Series Flexible Solar Panels redefine what a solar module can be. As the world’s first glassless solar panel, eArc combines proven crystalline silicon solar cells with Sunman Energy’s patented composite material to deliver a flexible, lightweight, and durable solar solution.

Despite being glass-free, eArc panels match the robustness and longevity of conventional glass modules, while unlocking installation possibilities that were previously impractical or impossible. Their ability to be bonded directly to surfaces eliminates the need for mounting hardware, reduces installation time, and expands solar access across a wide range of applications.

Key Features

Glassless Composite Technology

• Patented composite construction replaces traditional glass
• Up to 95% thinner and 70% lighter than glass panels
• Acts like a flexible “solar skin” for curved or weight-sensitive surfaces

Fast & Simple Installation

• No roof penetration or mounting equipment required
• Can be glued directly to suitable surfaces
• Cuts installation time on site by up to 40%

Proven Durability & Safety

• Certified to IEC 61215:2016 and IEC 61730:2016
• UL1703 certified (USA)
• Tested to withstand 3000 hours of damp heat
• UV exposure equivalent to 25 years of operation
• Passed PID, salt mist, and ammonia corrosion testing

Efficient & Practical Design

• Highly efficient Mono-PERC solar cells
• Ultra-slim profile at just 2 mm thick
• MC4 connector system for simple panel interconnection
• Up to 60% more kW transportable per pallet compared to glass panels
