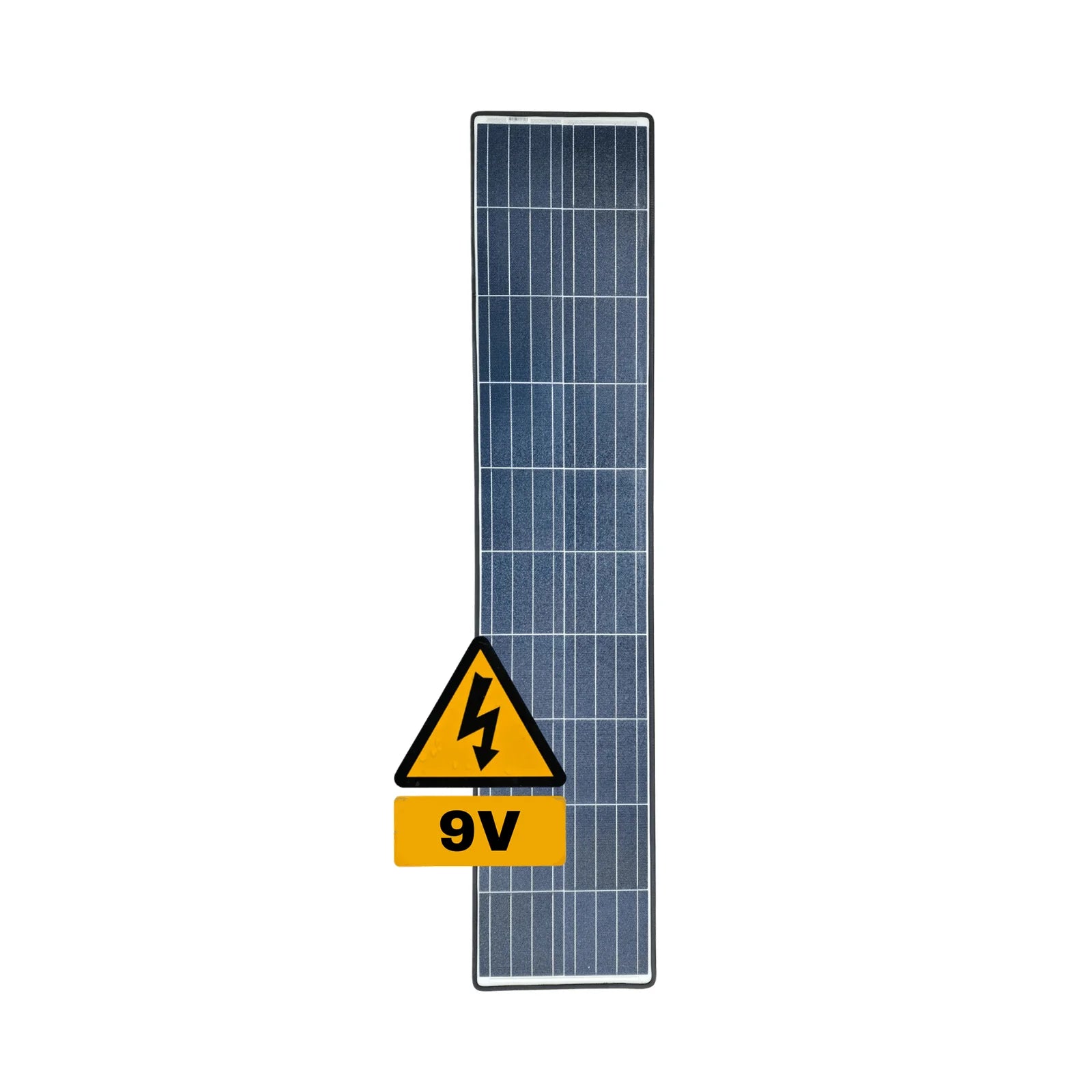

Sunman eArc 9V 85W Flexible Solar Panel - Junction Box Underneath - Free VGK - eASMS085P2x10D

Quick Feature Highlights

• 85 W flexible solar output – compact 9 V solar panel for mobile, marine and space-limited installations
• Junction box underneath – supports a cleaner top-side panel profile for low-clearance mounting
• Mono-PERC cell technology – efficient monocrystalline cells support reliable energy production from a compact footprint
• Free Vented Gap Kit included – helps improve airflow, reduce surface heat build-up and support better mounting outcomes
• IP68-rated junction box – each junction box includes a bypass diode for dependable outdoor operation
• MC4-compatible connection – supplied with PV cable and MC4-compatible connector for solar system integration

Overview

The Sunman eArc 9V 85W Flexible Solar Panel - Junction Box Underneath - Free VGK - eASMS085P2x10D is a compact flexible solar panel designed for mobile, caravan, marine and low-profile solar applications. It combines 85 W solar output with a lightweight glass-free flexible construction, supporting installations where conventional framed panels may be impractical.

By combining a slim flexible panel format with an underneath junction box and included Vented Gap Kit, the eASMS085P2x10D streamlines installation and enhances system flexibility for curved, narrow and space-constrained mounting surfaces.

Key Features

Compact 9 V Solar Performance

• 85 W maximum power output with 0/+5 W power tolerance.
• 20 solar cells in a 2 x 10 layout for compact mobile solar applications.
• Electrical ratings include 10.5 V Vmp, 8.1 A Imp, 12.9 V Voc and 8.55 A Isc.

Flexible Mobile Installation Design

• Flexible composite construction suitable for caravans, motorhomes, yachts, buses, trains and other mobile applications.
• Junction box underneath supports a clean top-side finish and low-profile installation layout.
• Included Vented Gap Kit improves airflow under the panel and helps reduce mounting surface heat build-up.

Installer-Friendly Electrical Integration

• Maximum system voltage of 600 V DC according to IEC listing.
• Maximum series fuse rating of 20 A and Class A application class.
• PV cable 4.0 mm² with (+)150 mm / (-)450 mm cable lengths and MC4-compatible connector.

Approvals & Compliance

• CEC-approved product information is listed by the Australian product source for residential and commercial use.
• Operating temperature range is listed as -40°C to 85°C, with IP68-rated junction box protection.

Warranty & Support

• Backed by Sunman warranty support, with product source warranty information listing 10 years for building installations and 5 years for mobile applications.

Downloads

• Datasheet / Specification Source – Sunman eArc 9V 85W eASMS085P2x10D
• Installation Manual – Sunman eArc PV System
