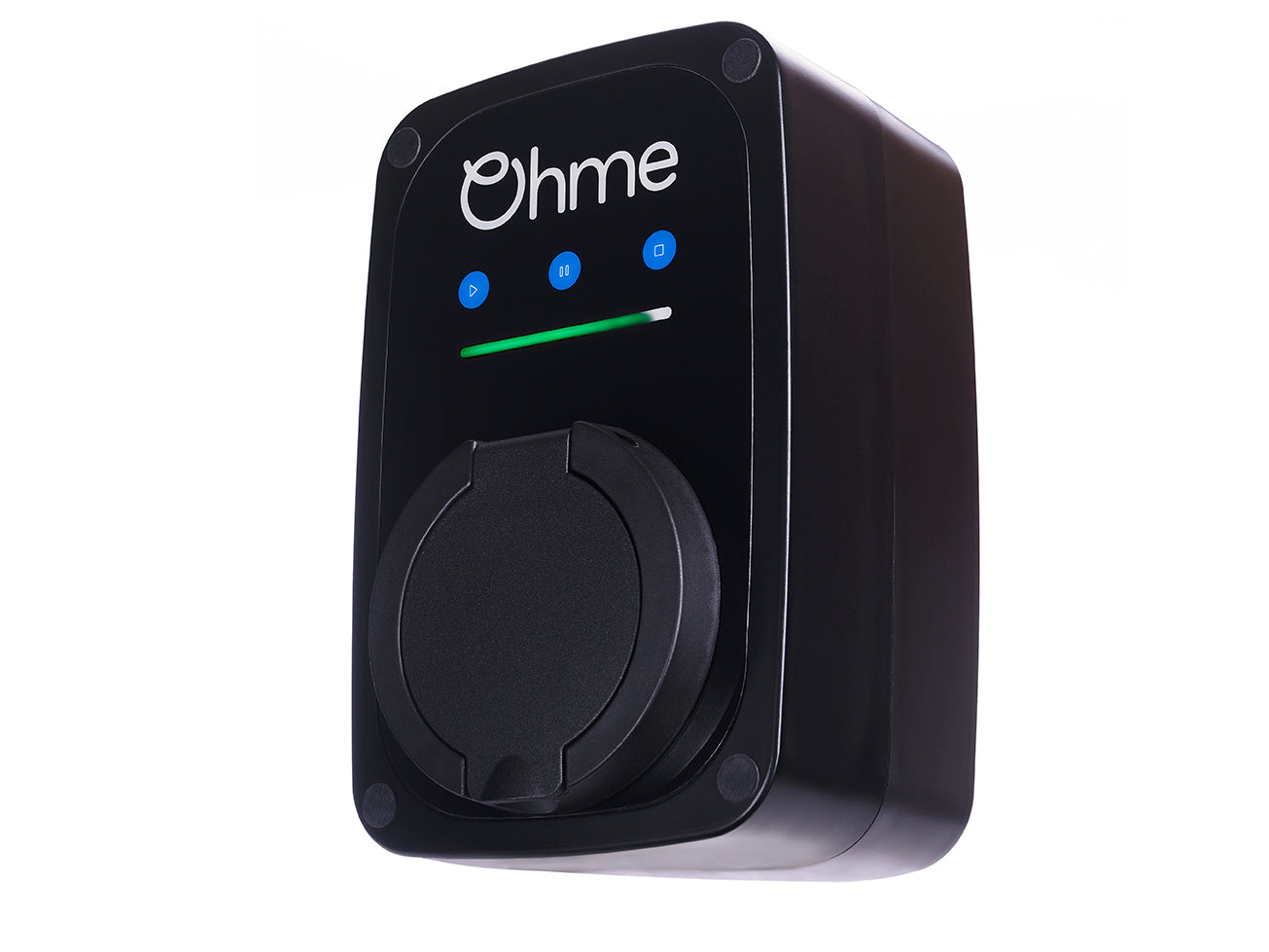

The Ohme ePod 7.4kW EV Charger

Overview

The Ohme ePod 7.4kW is a compact, discreet home EV charger that's ready for your electric vehicle, whatever the make or model. As an untethered unit with a Type 2 socket (to IEC62196), it lets you pair it with your own Type 1 or Type 2 cable, making it compatible with all EV models on Australian roads.

Powered by Ohme's industry-leading smart charging technology, the ePod is easy to set up for reliable charging at the cheapest times. Control it from the three buttons on the charger or the Ohme smartphone app, harness excess solar to charge with green energy, and keep it future-proof with over-the-air updates. It's backed by a 3-year warranty and award-winning customer support.

Key Features

Power & Performance

• 7.4kW power output – approximately 40km of range per hour
• Faster and safer than a domestic socket, perfect for overnight charging
• Rated current 32A per phase
• Nominal supply 240V AC, 50 Hz
• Mode 3 charging

Universal EV Compatibility

• Untethered model – bring your own Type 1 or Type 2 cable
• Type 2 socket to IEC62196
• Compatible with all EV models – Type 1 and Type 2 electric vehicles
• Compact, discreet design ready for your EV, whatever the make or model

Smart & Cost-Saving Charging

• Industry-leading smart charging technology
• Easy to set up for reliable charging at the cheapest times
• Finds the greenest and cheapest times to charge based on your energy tariff and charging needs
• Integrates with all energy providers
• Add your time-of-use tariff in the app to automatically charge when it's cheaper

Solar & Energy Management

• Solar compatible – use excess solar generation to charge with green energy
• Includes a CT clamp for monitoring power consumption and load balancing
• Home power balancing
• Solar charging and load balancing enabled with a working CT clamp

Connectivity & Control

• Control via the three buttons on the charger or the Ohme smartphone app
• Wi-Fi connectivity through your home Wi-Fi network for easy and reliable charging
• 5-colour LED indication strip (green, blue, yellow, white, purple)
• Over-the-air firmware & software updates

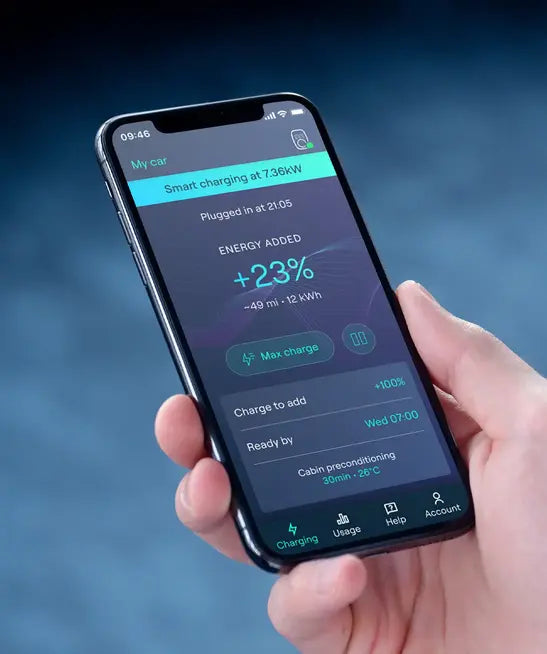

The Ohme App

• Solar charging: use excess energy to charge your car with green energy
• Schedule charging sessions around your time and tariff preferences
• Add your time-of-use energy tariff for automatic, cheaper charging
• Monitor energy usage and every kWh used to understand your charging costs
• Tesla Integration: view state of charge and battery specs and set charging targets without leaving the app (more EV makes and models coming soon)

Design & Build

• Compact dimensions: 230mm (H) x 140mm (W) x 100mm (D)
• Lightweight at just 1.5kg

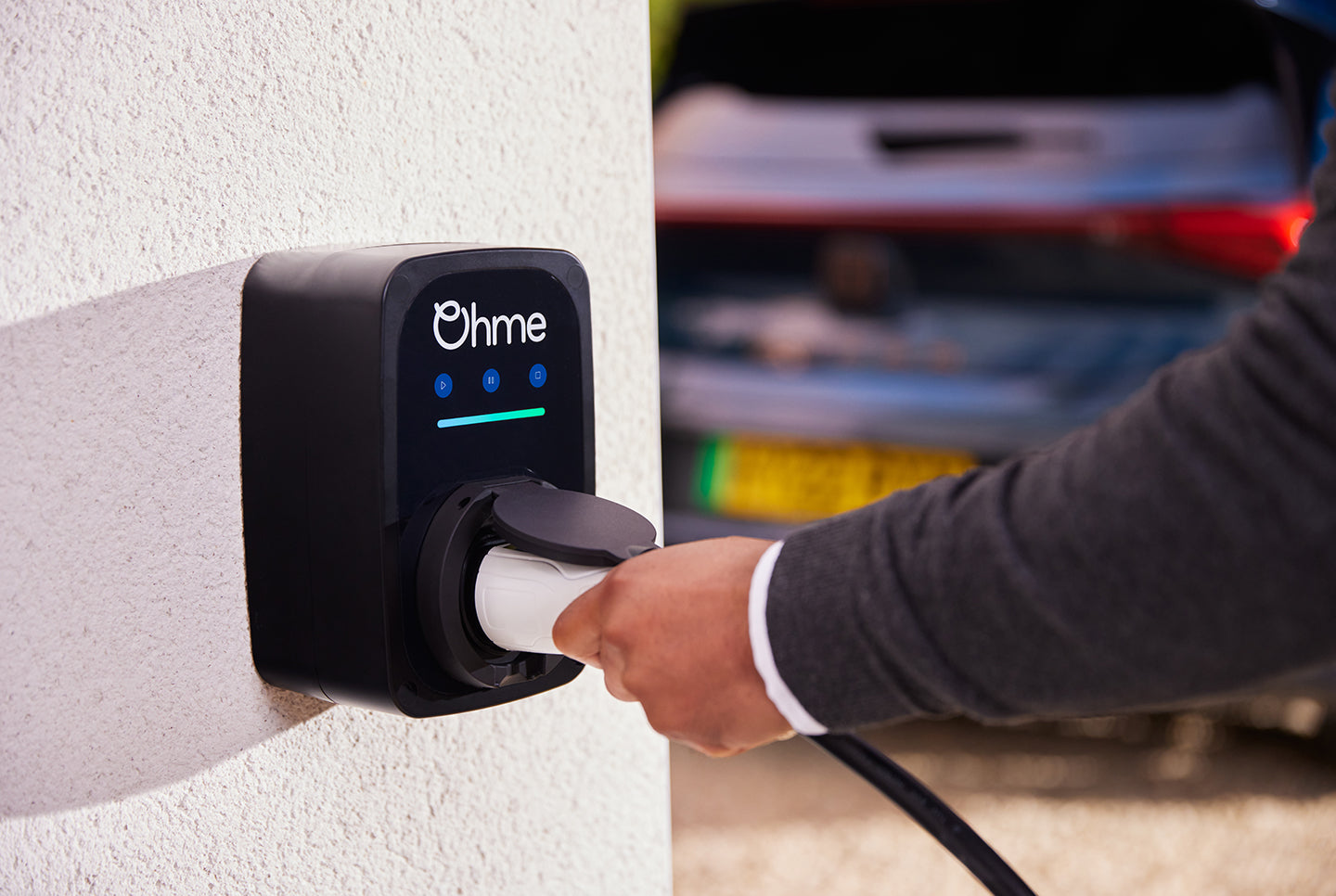

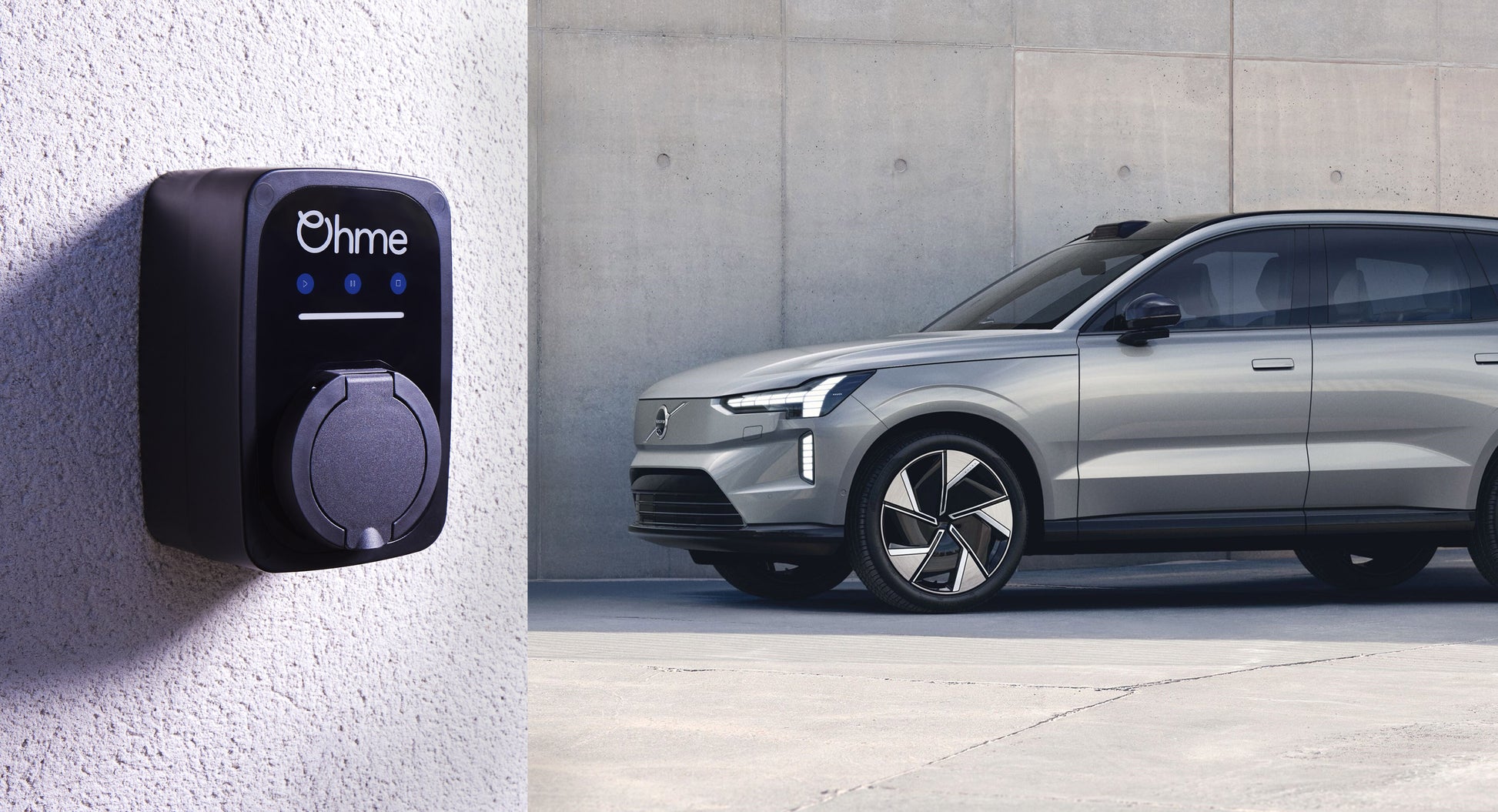

• Wall or post mounted, indoor or outdoor
• IP54 ingress protection and IK08 impact rating
• PC Lexan 945(GG) enclosure, fire rated (V-0 UL94)
• Standard finish: Black

Warranty, Support & Compliance

• 3-year warranty from installation date
• Award-winning customer support
• RCM marked and EESS registered for Australia

Operating Environment

• Operating temperature: -25°C to 50°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 5 - 95% RH
