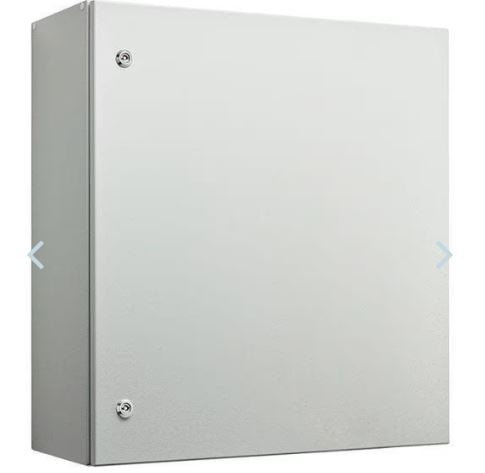

Tropac Steel Electrical Enclosure 600H x 400W x 300D - IP-604030

Overview

This IP66 Electrical Enclosure is a robust, wall-mounted cabinet designed for heavy-duty electrical and control applications. Manufactured from powder-coated galvanised steel and independently tested to IP66, IK10, and NEMA 4 standards, it provides reliable protection in harsh indoor and outdoor environments.

The enclosure features a monoblock steel body, a pre-installed device mounting plate, high-quality polyurethane sealing, and integrated cable management to support professional-grade electrical installations.

Key Features

Enclosure Construction

• Monoblock body fabricated from 1.2–1.5 mm galvanised steel
• Single-door construction with concealed removable hinges
• Door opening angle of 110° for easy access

Environmental Protection

• IP66, IK10, and NEMA 4 rated (independently tested)
• Foamed-in-place (FIP) polyurethane seal for long-life sealing
• Temperature resistance from -40°C to 80°C (160°C short-term)

Installation & Cable Management

• Pre-fitted 1.5 mm galvanised steel device mounting plate
• Integrated gland plate with gaskets and fasteners
• Internal cable management rails and M6 earth studs provided

Finish & Security

• Epoxy polyester powder-coated finish (80–120 micron thickness)
• Textured grey finish – RAL7035
• Chrome 5 mm double-bit quarter-turn lock with key
