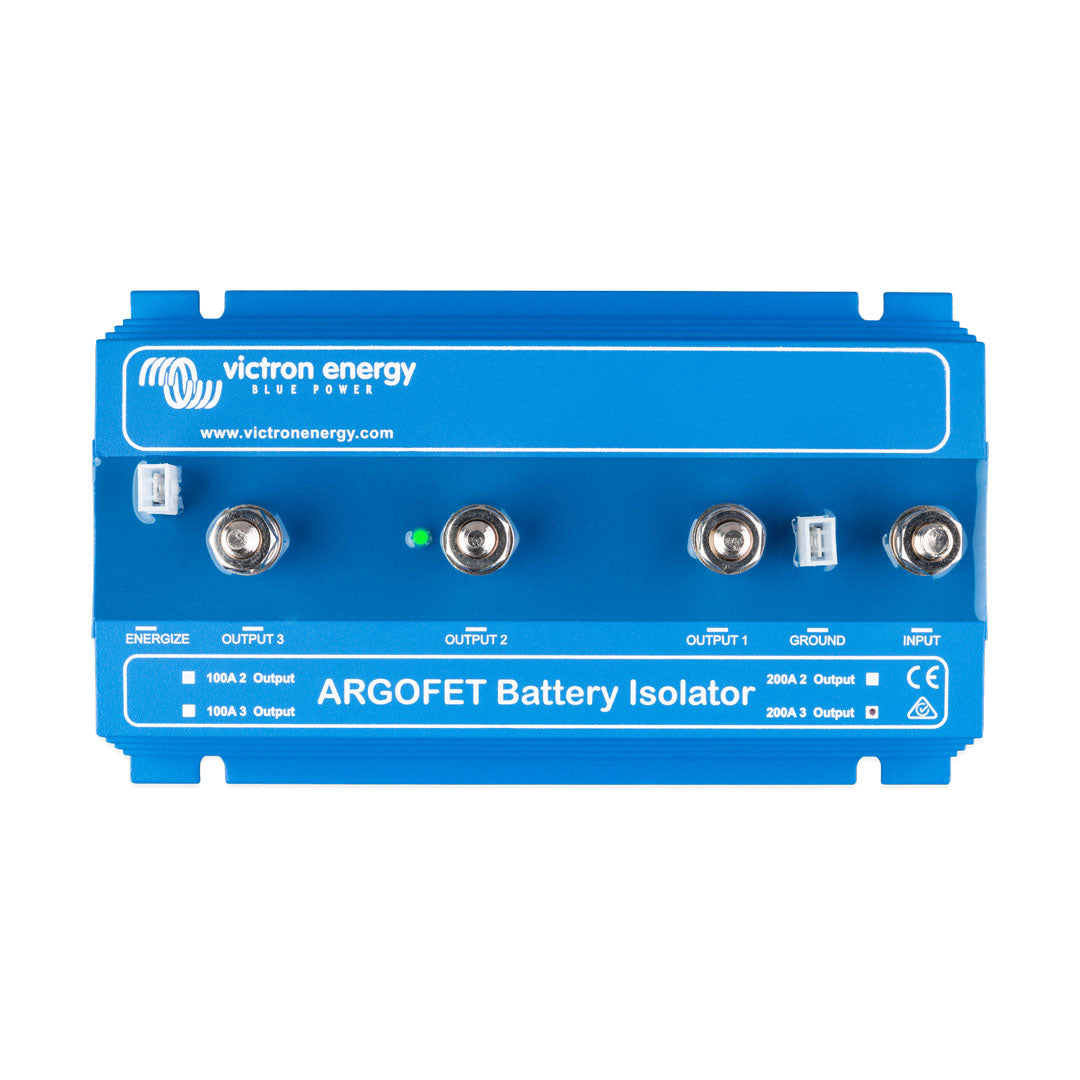

Victron Argofet 200-3 Three batteries 200A - ARG200301020 (R)

Overview

The Victron Argofet Battery Isolators allow two or more batteries to be charged simultaneously from a single alternator or single-output battery charger, while keeping each battery bank electrically isolated. This ensures that discharging an auxiliary or house battery does not also discharge the starter battery.

Unlike traditional diode-based isolators, Argofet isolators use high-efficiency FET (Field Effect Transistor) technology. This results in an extremely low voltage drop, maximising charging efficiency and eliminating the need to increase alternator output voltage.

Key Features

Multi-Battery Charging & Protection

• Charge multiple battery banks from a single charging source
• Maintains full electrical isolation between battery banks
• Protects starter batteries from accessory discharge

Ultra-Low Voltage Drop

• Less than 0.02 V voltage drop at low current
• Approximately 0.1 V voltage drop at higher current levels
• Delivers near full alternator or charger voltage to batteries

Optimised System Design

• No need to increase alternator output voltage
• Simpler system configuration compared to diode isolators
• Best performance achieved with short cable runs and correct cable sizing

Solid-State Construction

• FET-based design with no moving or mechanical parts
• High reliability and long service life
• Ideal for marine, automotive, RV, and off-grid applications
