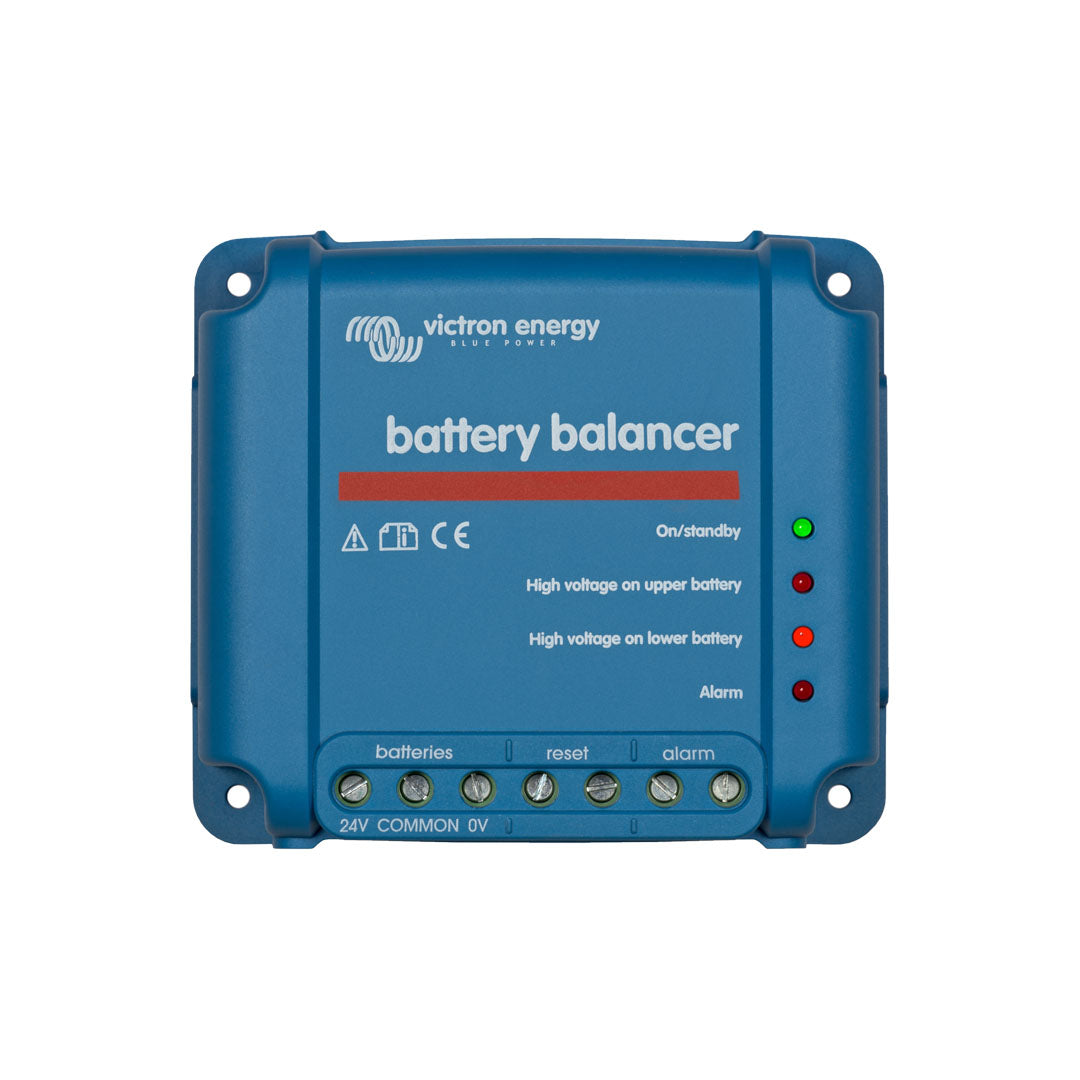

Victron Battery Balancer - BBA000100100

Overview

The Victron Battery Balancer is an intelligent device designed to equalise the state of charge of series-connected batteries, ensuring balanced performance and extended battery life. It is commonly used in 24 V systems consisting of two series-connected 12 V batteries, as well as in larger battery banks with multiple parallel strings.

When the charge voltage of a 24 V battery system rises above 27 V, the Battery Balancer activates and compares the voltage of each battery. It then draws up to 1 A from the battery with the higher voltage, allowing all batteries in the system to converge to the same state of charge.

Key Features

Active Battery Balancing

• Automatically balances two series-connected 12 V batteries
• Ensures equal state of charge across battery strings
• Prevents overcharging and undercharging of individual batteries

Scalable for Larger Systems

• Multiple balancers can be connected in parallel if required
• Three units can balance a 48 V battery bank
• Suitable for systems with parallel battery strings

Performance & Reliability

• Balancing current up to 1 A
• Activates automatically when system voltage exceeds 27 V
• Designed for long-term, maintenance-free operation

System Protection & Longevity

• Reduces battery stress caused by voltage imbalance
• Extends overall battery service life
• Improves reliability of battery-based power systems
