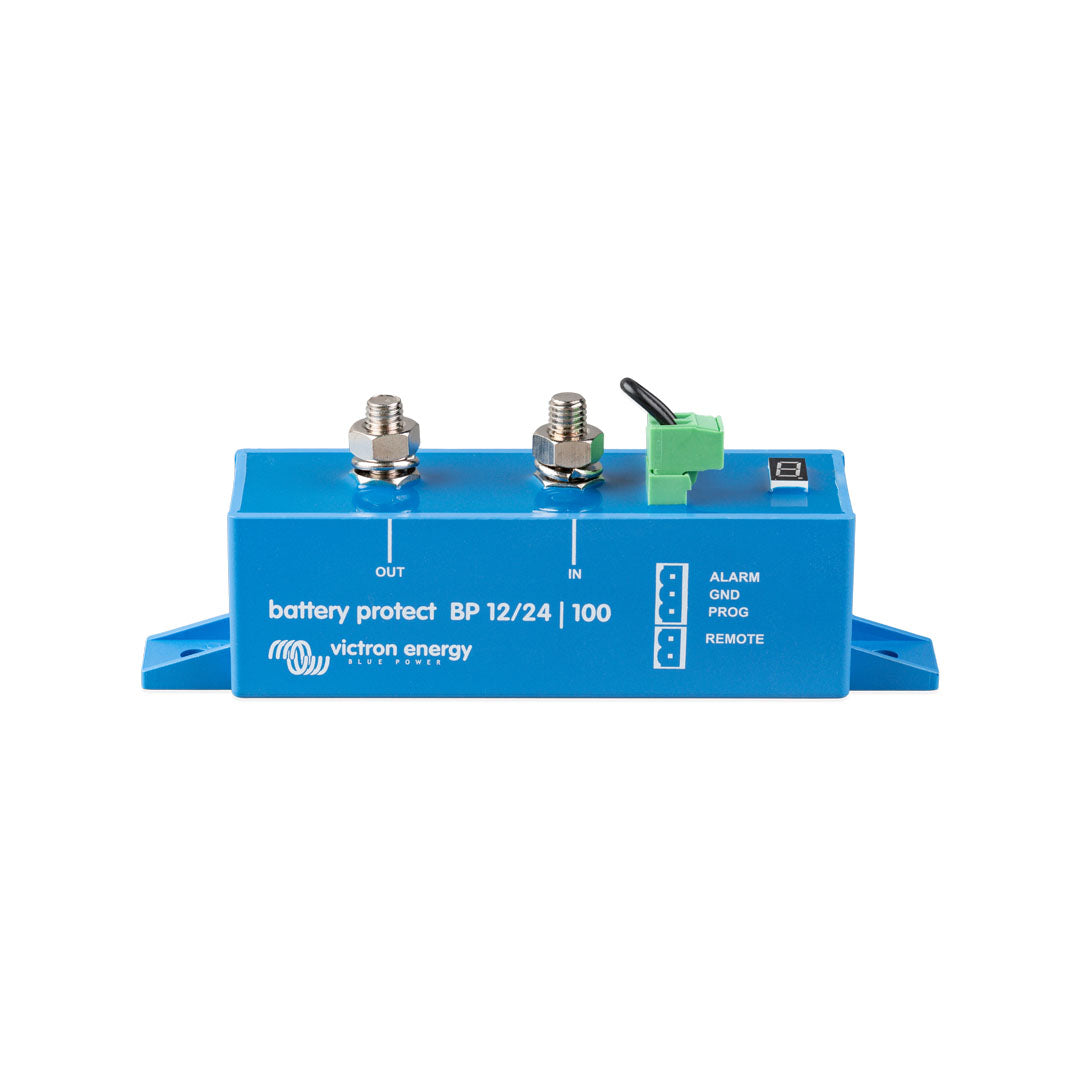

Victron Battery Protect 12/24V-100A - BPR000100400

Overview

The Victron BatteryProtect is a reliable battery protection device designed to disconnect non-essential loads before a battery becomes excessively discharged. This prevents permanent battery damage and ensures sufficient reserve power remains available to start an engine or maintain critical loads.

With automatic voltage detection, simple programming via an integrated display, and advanced safety features, the BatteryProtect is well suited to automotive, marine, RV, and off-grid power systems using both lead-acid and lithium batteries.

Key Features

Battery Protection & Load Management

• Disconnects loads before harmful deep discharge occurs
• Preserves battery health and service life
• Uni-directional current flow from Battery to Load terminal

Simple Programming & Control

• Automatic 12V / 24V system voltage detection
• Selectable engage and disengage voltage levels
• Seven-segment display shows active voltage setting

Lithium Battery Compatibility

• Dedicated Li-ion mode controlled by VE.Bus BMS
• Can also be used as a charge interrupter for lithium batteries
• Ultra-low current consumption after low-voltage shutdown

Advanced Safety & Protection

• Over-voltage protection disconnects loads above 16V (12V) or 32V (24V)
• Ignition-proof MOSFET switching with no sparks
• Short-circuit-proof alarm output

Delayed Alarm & Load Control

• Alarm output activates after 12 seconds below disconnect voltage
• Load disconnect delayed by 90 seconds to prevent nuisance trips
• Load reconnect delayed by 30 seconds after voltage recovery
• Alarm output suitable for buzzer, LED, or relay (max 50 mA)
