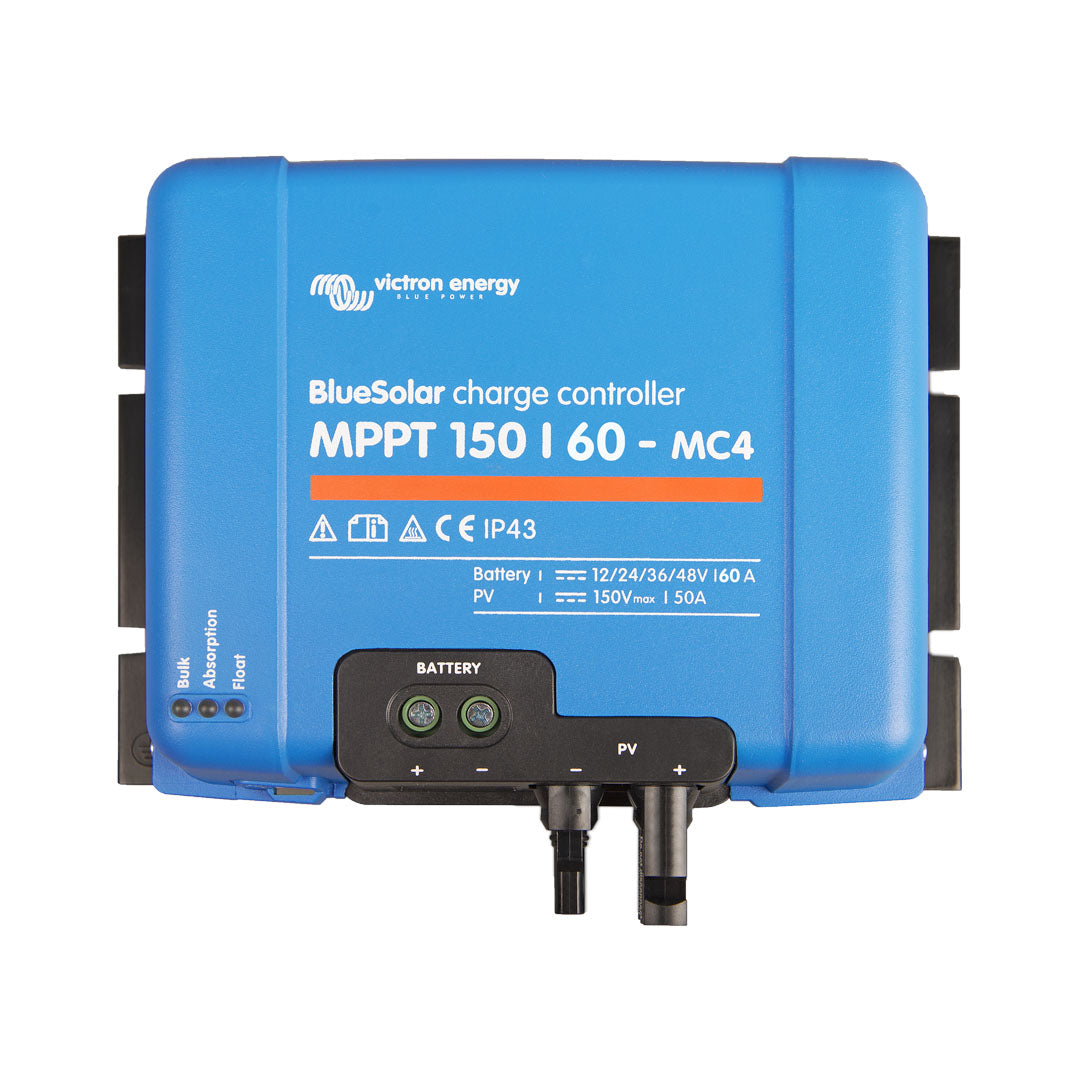

Victron BlueSolar MPPT 150/60-MC4 - SCC010060300

Victron BlueSolar MPPT 150/60-MC4 - SCC010060300

Please sign in to see pricing
  • Ultra-fast MPPT technology – up to 30% higher energy harvest than PWM controllers
  • Advanced partial shading detection – locks onto the true optimum maximum power point
  • High-efficiency design – fanless operation with >98% peak efficiency
  • 60 A charging capability – suited to medium–large solar arrays
  • MC4 PV connections – fast, secure plug-and-play installation
  • Victron ecosystem ready – GX, VRM and VictronConnect compatible
View full details
  • Description
  • Downloads

Description

Overview

The Victron BlueSolar MPPT 150/60-MC4 is a high-performance solar charge controller designed to maximise energy harvest from photovoltaic arrays and intelligently store it in batteries. Using ultra-fast Maximum Power Point Tracking (MPPT), it continuously monitors PV voltage and current to extract every available watt, even under rapidly changing light conditions.

With outstanding efficiency, advanced partial shading optimisation, and robust electronic protection, the BlueSolar 150/60-MC4 is ideal for off-grid, backup, and hybrid solar systems where battery health, reliability, and performance are critical.

Key Features

Ultra-Fast & Advanced MPPT Performance

  • Up to 30% more energy harvest compared to PWM charge controllers
  • Up to 10% higher yield than slower MPPT controllers
  • Advanced algorithm optimises output during partial shading conditions
  • Continuously tracks and locks onto the optimal MPP

Outstanding Efficiency & Thermal Performance

  • Maximum efficiency exceeding 98%
  • Fanless, silent operation
  • Full rated output current up to 40°C ambient temperature
  • Automatic power derating at elevated temperatures

Flexible & Programmable Charging

  • Fully programmable battery charge algorithm
  • Eight pre-programmed charge profiles selectable via rotary switch
  • Internal temperature sensor for absorption and float voltage compensation
  • Optional external battery voltage, temperature and current sensing via Bluetooth

Advanced Protection

  • Over-temperature protection with intelligent power reduction
  • PV short-circuit protection
  • PV reverse polarity protection
  • PV reverse current protection

Monitoring & Connectivity

  • Real-time monitoring via GX devices (Color Control GX and others)
  • Remote access through Victron Remote Management (VRM) Portal
  • Smartphone monitoring via VictronConnect (Bluetooth dongle required)

Installer-Friendly Design

  • MC4 PV connectors for fast and reliable installation
  • Compact, robust enclosure for long service life
