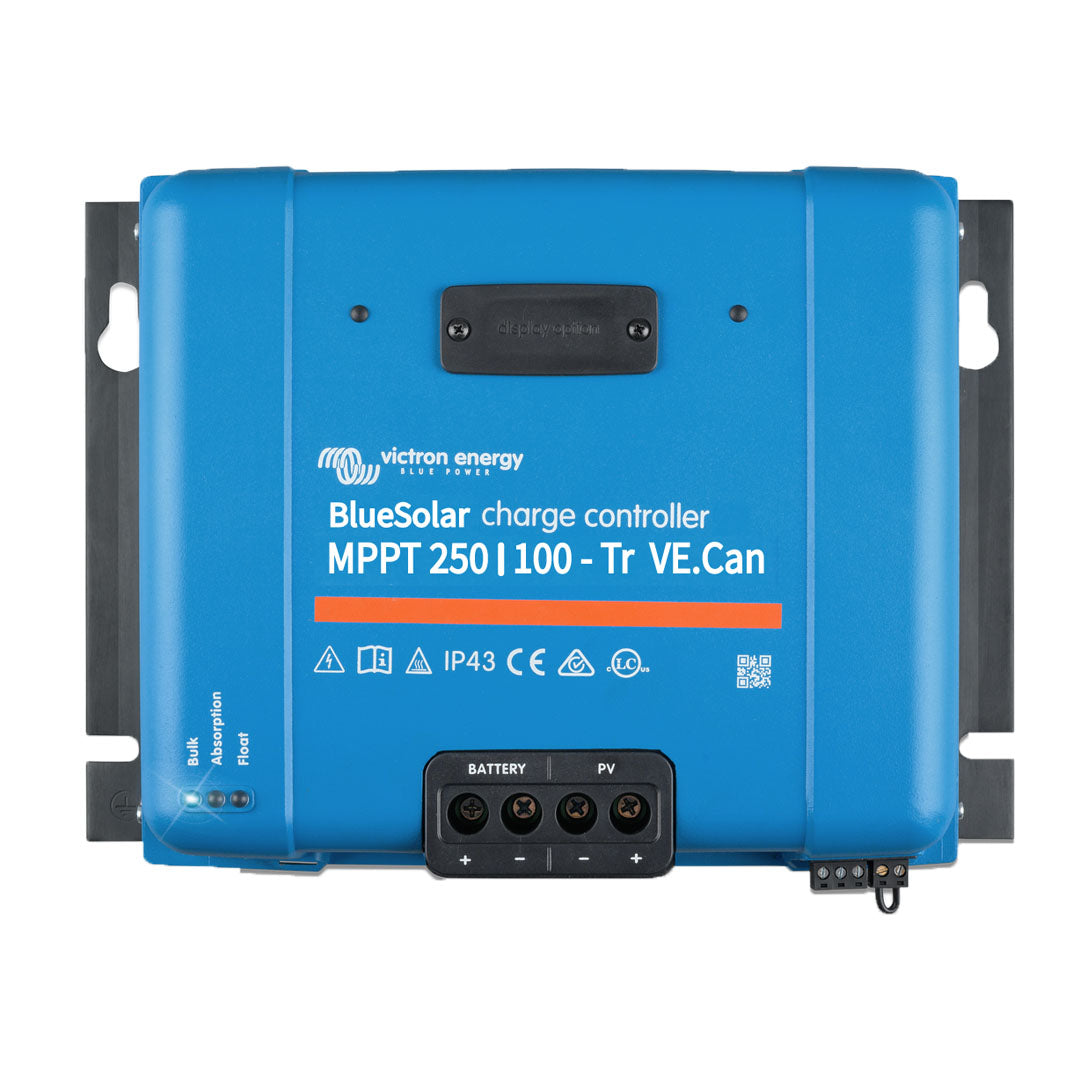

Victron BlueSolar MPPT 250/100-Tr VE.Can - SCC125110441

Victron BlueSolar MPPT 250/100-Tr VE.Can - SCC125110441

Please sign in to see pricing
  • Ultra-fast MPPT technology – up to 30% higher energy yield than PWM controllers
  • Advanced partial shading detection – always locks onto the true maximum power point
  • High-efficiency design – fanless operation with >98% peak efficiency
  • VE.Can networking – synchronise up to 25 charge controllers
  • Flexible system integration – VE.Direct & VE.Can communications supported
  • Victron reliability – proven performance for large off-grid solar systems
View full details
  • Description
  • Downloads

Description

Overview

The Victron BlueSolar MPPT 250/100-Tr VE.Can is a high-capacity solar charge controller designed to maximise energy harvest from large photovoltaic arrays. Using ultra-fast Maximum Power Point Tracking (MPPT) technology, it continuously monitors panel voltage and current to extract the maximum available power, even during rapidly changing light conditions.

With outstanding efficiency, advanced partial shading detection, and VE.Can networking for multi-controller systems, the BlueSolar 250/100-Tr VE.Can is ideal for advanced off-grid, commercial, and industrial solar installations where performance, reliability, and battery longevity are critical.

Key Features

Ultra-Fast & Advanced MPPT Performance

  • Up to 30% more energy harvest compared to PWM charge controllers
  • Up to 10% higher yield than slower MPPT controllers
  • Advanced algorithm optimises output during partial shading conditions
  • Continuously tracks and locks onto the optimum maximum power point

Outstanding Efficiency & Thermal Performance

  • Maximum efficiency exceeding 98%
  • Fanless, silent operation
  • Full rated output current up to 40°C ambient temperature
  • Automatic power derating at elevated temperatures

Flexible & Programmable Charging

  • Fully programmable battery charge algorithm
  • Eight pre-programmed charge profiles selectable via rotary switch
  • Internal temperature sensor for absorption and float voltage compensation
  • Optional external battery voltage, temperature, and current sensing via Bluetooth

Advanced Protection & Control

  • Over-temperature protection with intelligent power derating
  • PV short-circuit and reverse polarity protection
  • PV reverse current protection
  • Programmable relay for alarms or system events
  • Remote on/off input for integration with VE.Bus BMS

System Integration & Monitoring

  • VE.Can networking synchronises up to 25 controllers
  • VE.Direct or VE.Can wired communication to GX devices and PCs
  • Compatible with Color Control GX and other Victron GX products
  • Optional SmartSolar plug-in LCD display

Remote Monitoring & Control

  • Monitor and configure using VictronConnect (Bluetooth dongle required)
  • Full remote access via Victron Remote Management (VRM) Portal
  • GlobalLink 520 enables monitoring at sites without local internet access
