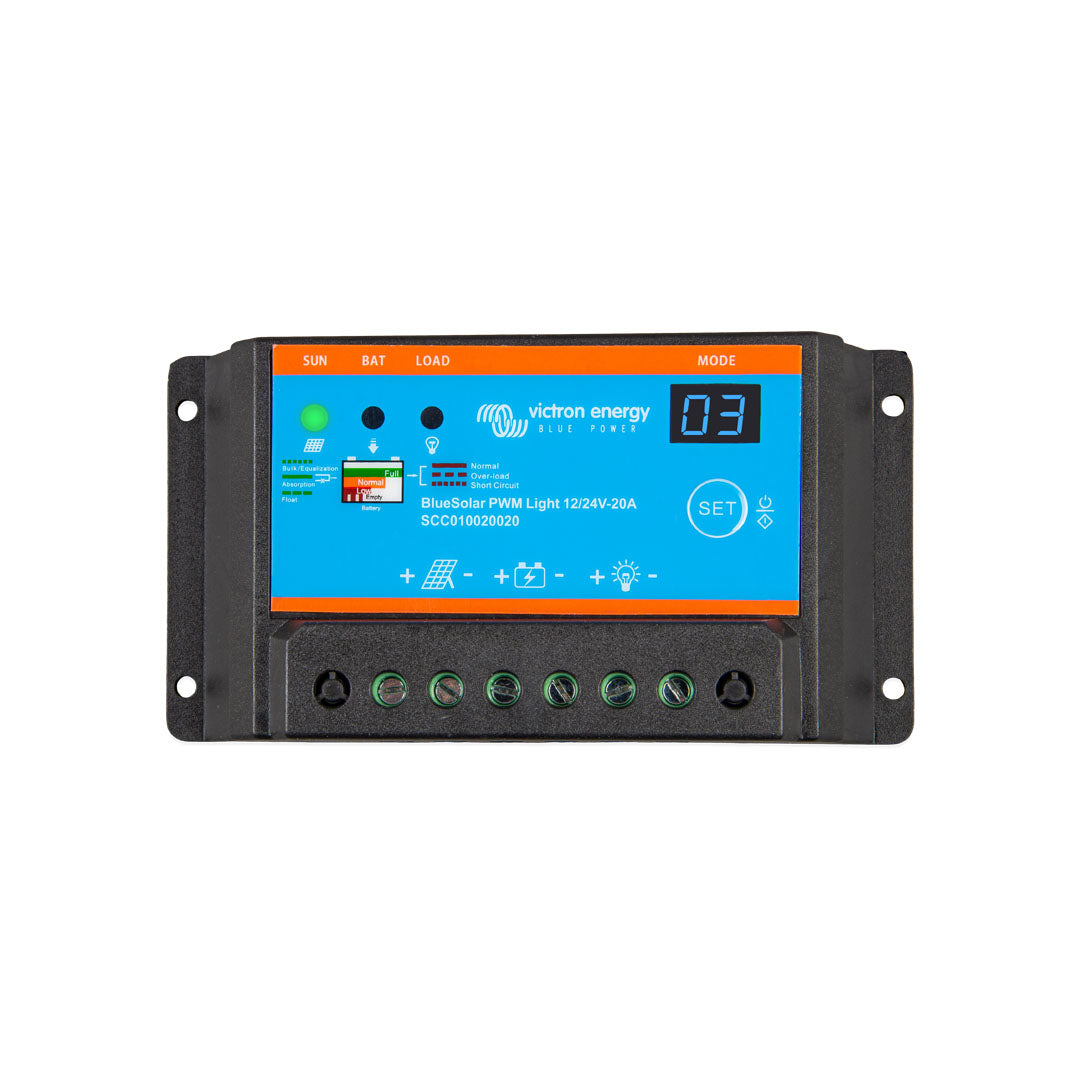

Victron BlueSolar PWM-Light Charge Controller 12/24V-20A - SCC010020020

Overview

The Victron BlueSolar PWM-Light is a compact and dependable PWM solar charge controller designed for solar lighting and small off-grid applications.

With built-in lighting control, low-voltage load disconnect, and a simple display interface, the PWM-Light range offers straightforward configuration and reliable battery protection across 12 V, 24 V, and 48 V systems.

Key Features

Battery Charging

• Three-stage PWM charging: bulk, absorption, and float
• Non-programmable charging profile for simple, reliable operation
• Optimised for long battery life in small systems

Lighting & Load Control

• Integrated lighting control with single timer function
• Day/night timing options available
• Load output with low battery voltage disconnect

User Interface

• Two-digit seven-segment display
• Quick and easy configuration of load and timer settings
• Clear visual feedback during setup and operation

Protection & Safety

• Load output protected against overload and short circuit
• Reverse polarity protection for solar array and battery
• Designed for safe, unattended operation

System Compatibility

• Available in 12 V, 24 V, and 48 V models
• Suitable for solar lighting, signage, and small off-grid systems
• Compact design for easy installation
