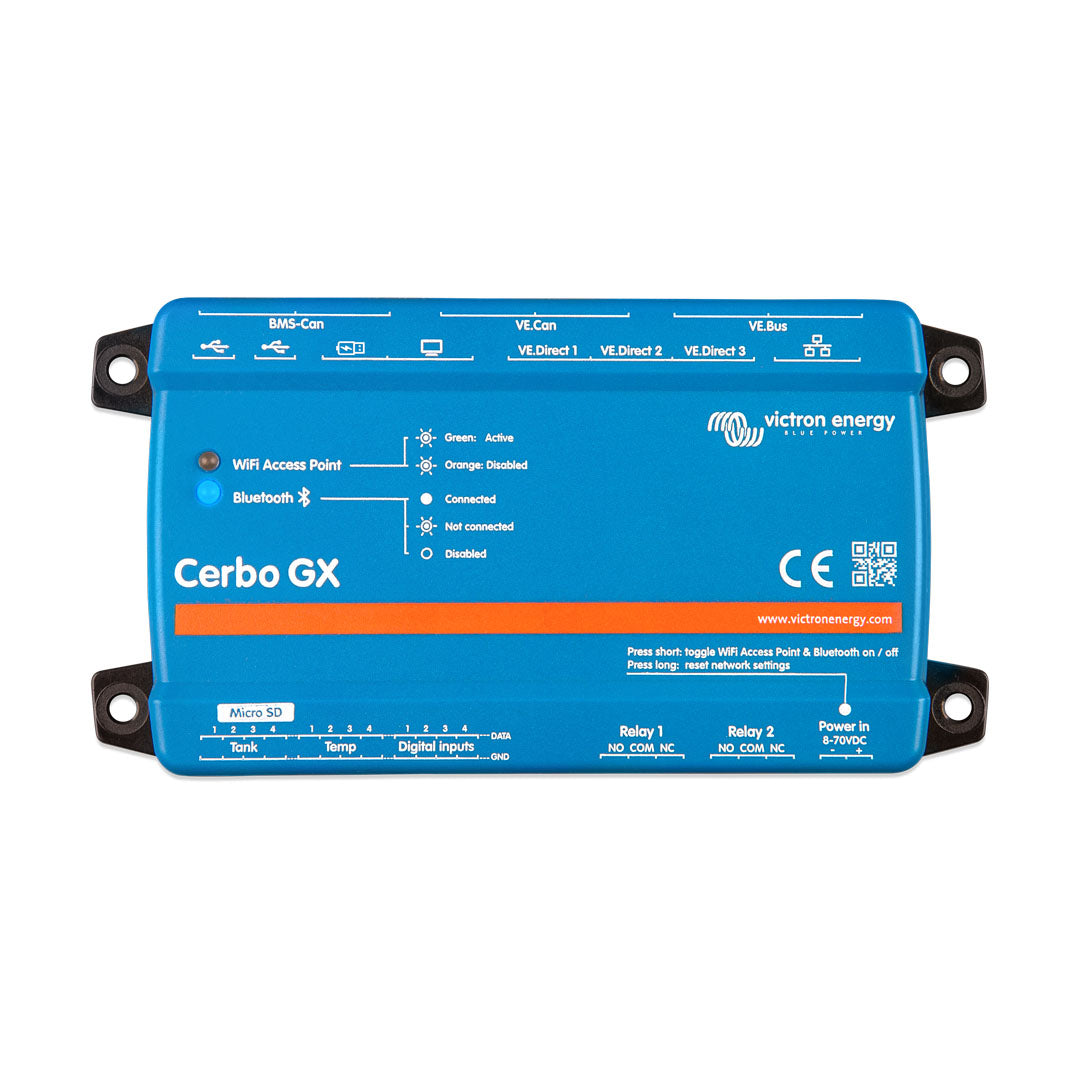

Victron Cerbo GX MK2 - BPP900450110

Victron Cerbo GX MK2 - BPP900450110

Please sign in to see pricing
  • Advanced system communication centre – complete monitoring and control hub
  • – dual CAN bus, rotated RJ45 ports, extra USB, pulse counting Improved MK2 hardware design
  • VRM & Remote Console access – manage your system from anywhere
  • Bluetooth & VictronConnect – fast local setup and configuration
  • GX Touch compatible – optional 5” or 7” touchscreen displays
  • Future-ready connectivity – designed for modern Victron energy systems
View full details
  • Description
  • Downloads

Description

Overview

The Victron Cerbo GX is the central communication and control platform for Victron Energy systems, providing complete visibility and intelligent management of your power installation. Designed to maximise system performance, the Cerbo GX allows you to monitor, control, and configure your system locally or remotely via the Victron Remote Management (VRM) portal.

This latest generation Cerbo GX (MK2) introduces significant hardware improvements, including two fully functional CAN bus ports, three fully functional USB ports, digital input pulse counting, and RJ45 Ethernet sockets rotated 180° for easier cable access and removal. Combined with built-in Bluetooth, it delivers a streamlined and future-ready system control solution.

Key Features

Cerbo GX Communication Centre

  • Central hub for monitoring and controlling Victron energy systems
  • Real-time visibility of battery state of charge, PV production, load consumption, generator and grid
  • Optimises overall system performance and reliability

Enhanced MK2 Hardware

  • Two fully functional CAN bus ports
  • Three fully functional USB ports
  • Digital input with pulse counting support
  • RJ45 Ethernet sockets rotated 180° for easier cable management

Remote Console & VRM

  • Remote monitoring, control, and configuration via the VRM portal
  • Remote Console access as if standing in front of the device
  • Local access via LAN or built-in WiFi Access Point

GX Touch Display Support

  • Compatible with GX Touch 50 (5”) and GX Touch 70 (7”) displays
  • Single-cable connection for quick installation
  • Waterproof, top-mountable touchscreen design

Monitoring & Control Capabilities

  • Monitor battery SoC, power consumption, solar generation, grid and generator input
  • View tank levels and temperature measurements
  • Control shore power current limits
  • Automatic or manual generator start/stop
  • Remote diagnostics, alerts, and troubleshooting

Installation & Configuration

  • Compact design with simple mounting options
  • DIN-rail mountable using optional DIN35 adapter
  • Separate touchscreen eliminates complex dashboard cut-outs
  • Bluetooth-enabled setup via VictronConnect app

Downloads

Datasheet User Manual Product Overview Video Cerbo GX MK2 – What’s New
