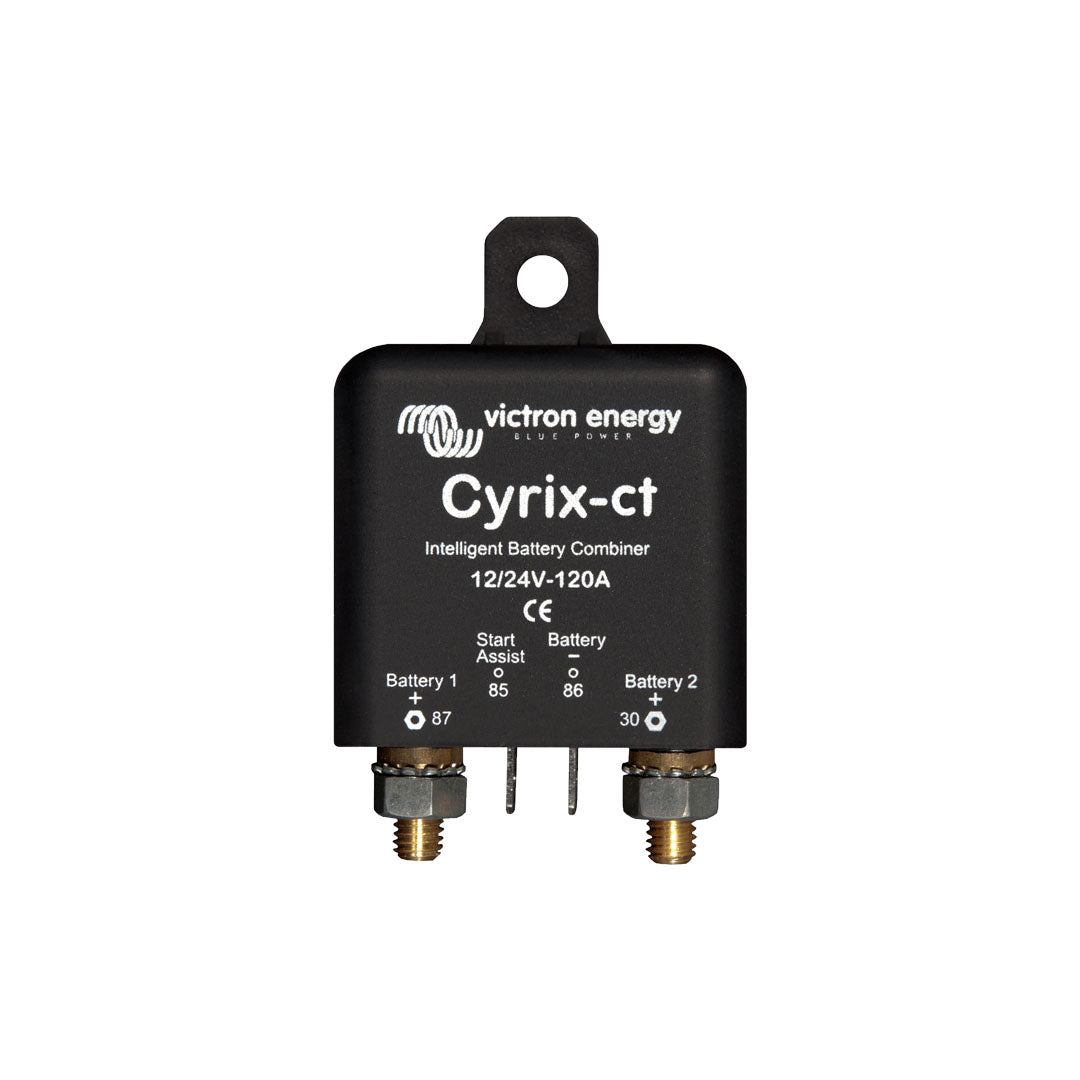

Victron Cyrix-ct 12/24V-120A intelligent battery combiner - CYR010120011R

Overview

The Victron Cyrix Battery Combiners are microprocessor-controlled heavy-duty relays designed to automatically connect multiple batteries in parallel when charging is detected. Once the voltage drops below float level, the batteries are automatically disconnected to prevent unwanted discharge.

Offering virtually zero voltage loss, Cyrix Battery Combiners are an ideal replacement for traditional diode isolators, ensuring full alternator or charger output voltage is delivered to connected battery banks without the need for voltage compensation.

Key Features

Intelligent Battery Management

• Automatically connects batteries when a preset charge voltage is reached
• Disconnects batteries when voltage falls below float level
• Ensures optimal charging and battery protection

Zero Voltage Loss Design

• Virtually no voltage drop across the relay
• Delivers full charging voltage to all connected batteries
• Eliminates the need to increase alternator or charger voltage

Heavy-Duty Construction

• Microprocessor-controlled relay operation
• Designed for continuous high-current applications
• Reliable performance in marine, automotive, and off-grid systems

Available Models

• 120A model
• 230A model
• 400A model
