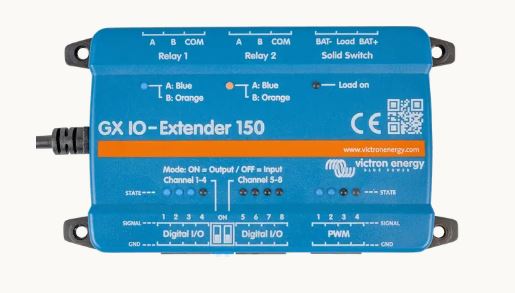

Victron GX IO-Extender 150 - BPP900800150

Overview

The Victron GX IO-Extender 150 expands the input and output capabilities of Victron GX devices, enabling seamless integration with additional sensors, controls and external equipment. It connects via USB, which also supplies power, providing a simple and efficient expansion solution without the need for additional power supplies.

Designed for advanced system control and automation, the GX IO-Extender 150 can be configured and controlled using Node-RED on the GX device, as well as via the Switch pane in the GX user interface. This makes it ideal for custom control logic, automation tasks and complex energy system integrations.

Key Features

Flexible Digital I/O Expansion

• 8 digital I/Os configurable as 8 inputs, 8 outputs, or 4 inputs + 4 outputs
• Supports a wide range of sensors and control signals
• Ideal for system monitoring and automation tasks

Advanced Control Outputs

• PWM output for precise control applications
• Two latching relays for low-power switching
• Solid-state switch for DC loads

DC Load Switching Capability

• Controls resistive, capacitive and inductive loads
• Suitable for driving contactor coils and similar devices
• Enhances system-level control flexibility

Automation & Configuration

• Configurable using Node-RED on the GX device
• Supports custom automation logic and workflows
• Accessible via the GX user interface switch pane

Installer-Friendly Design

• USB connection provides both data and power
• Pluggable spring terminals for fast, secure wiring
• Compact form factor for clean installations
