Victron GX Tank 140 -BPP920140100

Victron GX Tank 140 -BPP920140100

Please sign in to see pricing
  • Multi-tank monitoring module – reads up to four tank level sensors
  • GX system compatible – accessory for Cerbo GX and other Victron GX devices
  • Multiple sensor types supported – compatible with 4–20 mA and 0–10 V senders
  • USB powered connection – no additional power wiring required
  • Local & remote monitoring – view tank levels on GX devices and via the VRM Portal
  • Marine ready – supports NMEA 2000 tank level transmission
View full details
  • Description
  • Downloads

Description

Overview

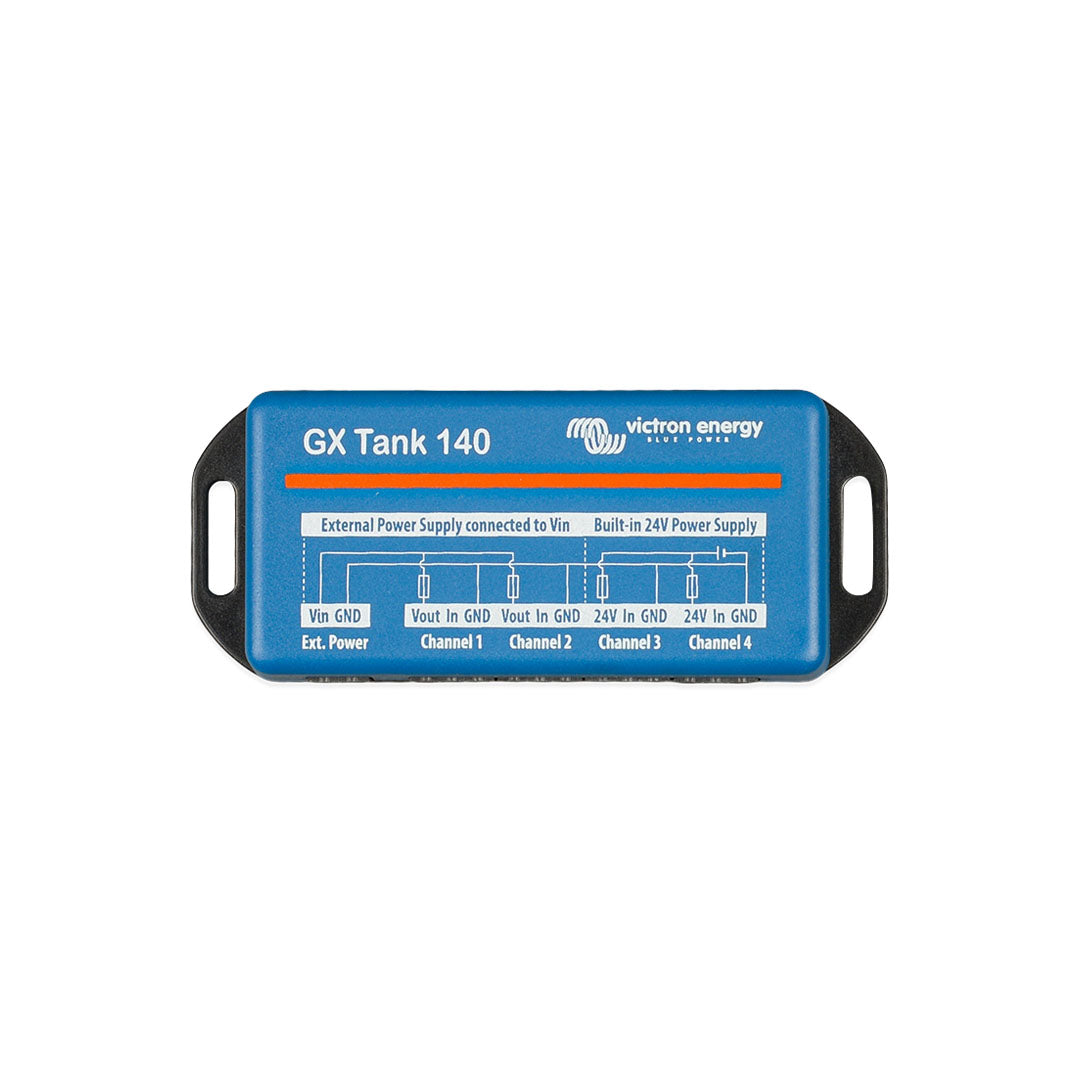

The Victron GX Tank 140 is a tank level monitoring accessory designed for Victron GX system monitoring products, including the Cerbo GX.

It allows accurate monitoring of up to four tanks, with readings available locally on the GX device and remotely through the Victron VRM Portal. Designed for simple installation and broad compatibility, the GX Tank 140 is ideal for marine, RV, and off-grid applications.

Key Features

Flexible Tank Sensor Support

  • Supports up to four tank level sensors
  • Compatible with current senders (4–20 mA) and voltage senders (0–10 V)
  • Upper and lower limits configurable for partial-scale sensors

Simple Power & Connectivity

  • USB connection to GX device for both data and power
  • No additional power wiring required for the GX Tank 140
  • Two inputs provide 24 V power for tank senders

External Power Support

  • Two channels support externally powered sensors
  • Dedicated power input terminal provided
  • Integrated fused outputs simplify wiring

Accurate & Stable Readings

  • Configurable signal damping from 1 to 60 seconds
  • Averaging ensures stable and reliable tank level readings
  • Detects faulty sensors and wiring issues

Alarms & Marine Integration

  • Out-of-range values trigger system alarms
  • Tank levels visible locally and via VRM Portal
  • Supports NMEA 2000 transmission for marine displays and MFDs

Downloads

User Manual
