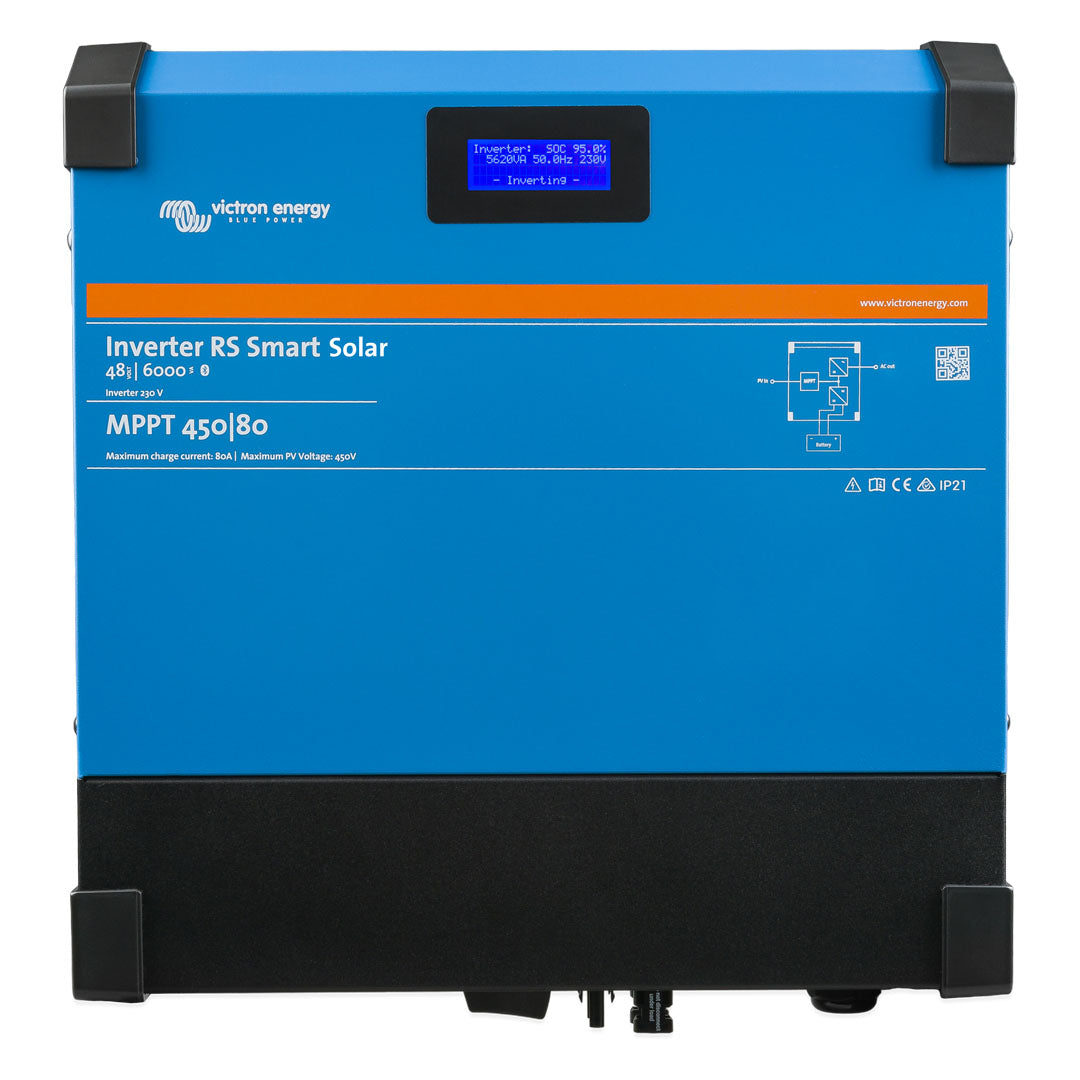

Victron Inverter RS 48/6000 230V Smart Solar - PIN482601000

Overview

The Victron Inverter RS Smart Solar 48/6000 (230V) is a powerful off-grid solar inverter that combines a 48 V, 6 kVA pure sine wave inverter with a high-voltage MPPT solar charger in a single, compact unit. Designed for off-grid applications where reliable AC power is required, it delivers excellent efficiency and quiet operation using advanced high-frequency technology.

With an integrated bi-directional DC-DC converter, the Inverter RS Smart Solar intelligently manages energy flow—charging batteries when excess solar power is available and supplying AC loads from the battery when required. Its modern design, smart connectivity, and robust feature set make it ideal for residential, rural, and remote solar installations.

Key Features

All-in-One Inverter & Solar Charger

• 48 VDC, 6 kVA (230 VAC) pure sine wave inverter
• Integrated bi-directional DC-DC converter
• 4 kWp high-voltage MPPT solar charger
• Automatically balances solar, battery, and load power

Wide MPPT Voltage Range

• MPPT operating range: 80 – 450 VDC
• PV start-up voltage: 120 VDC
• Supports modern high-voltage PV strings

Efficient, Lightweight & Quiet

• High-frequency design weighs only 11 kg
• Excellent conversion efficiency
• Low standby power consumption
• Very quiet operation

Integrated Safety & Isolation

• Built-in PV isolator for MC4-connected solar strings
• Safely isolates both parallel PV inputs via a large front-mounted switch

Smart Monitoring & Configuration

• Integrated display shows battery, inverter, and solar charger data
• Bluetooth connectivity for VictronConnect app
• Configure system settings and monitor performance wirelessly

System Integration & I/O

• VE.Can port for GX device connection, monitoring, and data logging
• VE.Direct port for GlobalLink 520 connectivity
• Programmable relay output
• Temperature and voltage sensor inputs
• Remote input configurable for Victron smallBMS
