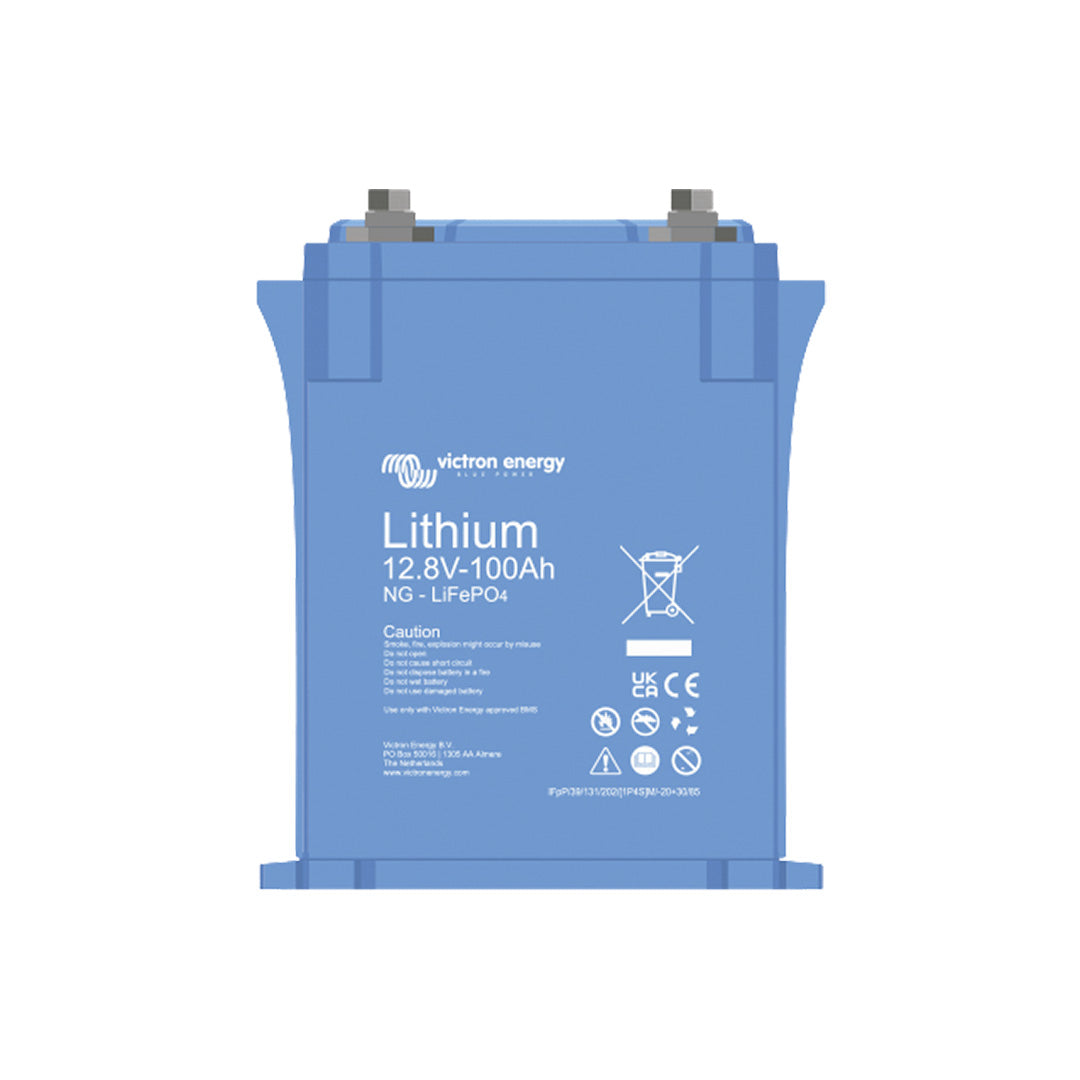

Victron LiFePO4 Battery 12,8V/100Ah NG - BAT512110620

Overview

The Victron Energy Lithium NG Batteries are next-generation Lithium Iron Phosphate (LiFePO₄ / LFP) batteries designed for advanced and reliable energy storage systems. Available in 12.8 V, 25.6 V, and 51.2 V variants across multiple capacities, the Lithium NG range builds on the proven Lithium Smart Series with major enhancements in monitoring, protection, and scalability.

Designed to integrate seamlessly within the Victron ecosystem, Lithium NG batteries support series, parallel, and series/parallel configurations, enabling system voltages of 12 V, 24 V, or 48 V. With support for up to 50 batteries per system, total storage capacity can reach 385 kWh, making the range ideal for demanding residential, commercial, and industrial energy applications.

Key Features

Advanced Battery Monitoring & Intelligence

• Integrated shunt transmits voltage, current, and temperature data to the BMS
• Real-time visibility of cell status, voltages, currents, and temperatures
• Automatic firmware updates managed by the BMS

Mandatory Victron BMS Integration

• Requires Lynx Smart BMS NG 500A or 1000A (sold separately)
• Automatic detection of system voltage and battery configuration
• Monitoring and control via VictronConnect app, GX devices, or VRM Portal

Inherently Safe Battery Chemistry

• LiFePO₄ (LFP) chemistry for superior safety and thermal stability
• Integrated cell balancing and monitoring
• BMS-controlled protection against over-voltage, under-voltage, and temperature extremes

High Performance & Reliability

• Low self-discharge rate of ≤ 2% per month
• Increased maximum single bank size up to 385 kWh
• Designed for long service life and daily cycling

Installation & Durability

• Bracket and strap mounting options for secure installation
• IP65-rated enclosure for dusty or damp environments
• Daisy-chainable cell balancing and monitoring cables
