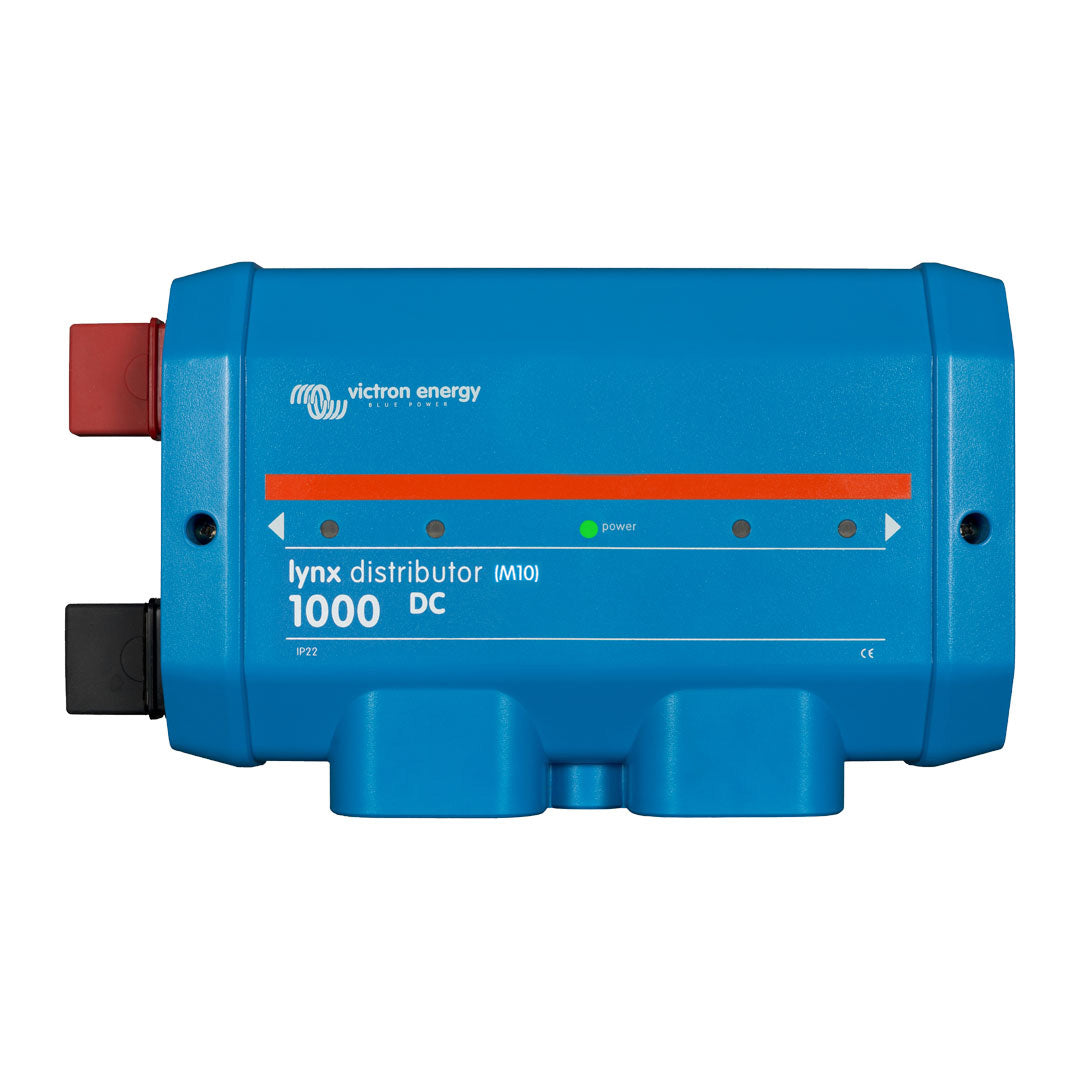

Victron Lynx Distributor (M10) - LYN060102010

Overview

The Victron Lynx Distributor is a modular DC distribution busbar designed to provide safe, organised, and expandable power distribution in high-current DC systems. It forms part of the Victron Lynx modular distribution system and provides four individually fused DC connections.

Each fuse position is monitored electronically, with a front-facing LED indicator showing the status of every fuse for quick fault identification. The Lynx Distributor is suitable for 12 V, 24 V, and 48 V battery systems and is commonly used in energy storage, marine, off-grid, and backup power applications.

Key Features

Modular DC Distribution

• Part of the Victron Lynx modular power distribution ecosystem
• Four fused DC outputs using MEGA / AMG fuses (sold separately)
• Expandable system design when combined with other Lynx modules

Monitoring & Safety

• Individual fuse monitoring with LED indication on the front panel
• Reverse polarity protection
• Clear visual status for fast troubleshooting

Electrical Specifications

• Voltage range: 9 – 60 V DC
• Supported system voltages: 12 V, 24 V, or 48 V
• Continuous current rating: 1000 A

Construction & Design

• Busbar material: Tinned copper
• Busbar dimensions: 8 × 30 mm
• Busbar connection size: M10
• Fuse connection size: M8
• ABS enclosure with IP22 protection rating

Environmental & Physical

• Operating temperature range: -40°C to +60°C
• Storage temperature range: -40°C to +60°C
• Enclosure dimensions (H × W × D): 290 × 170 × 80 mm
• Unit weight: 2.2 kg
