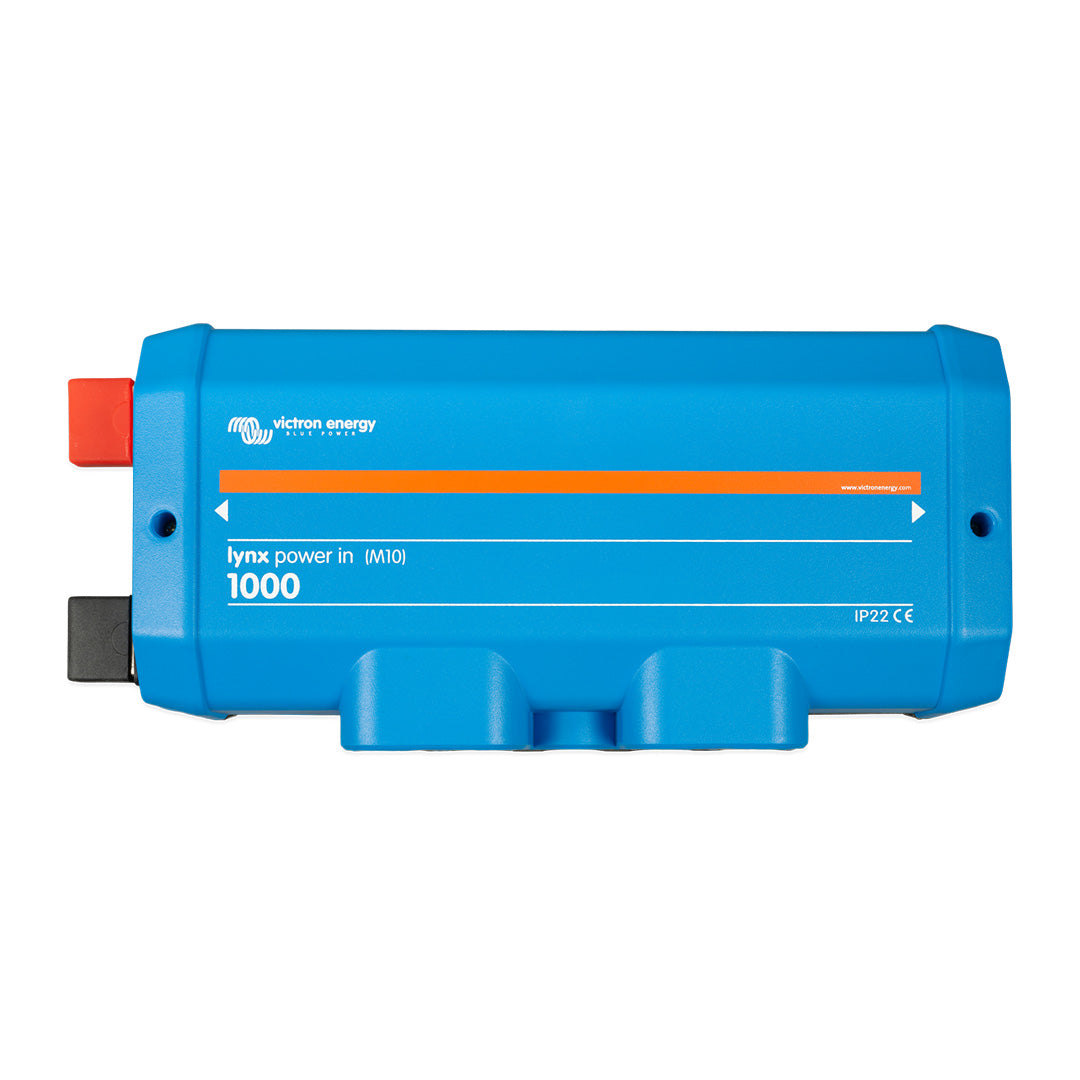

Victron Lynx Power In (M10) - LYN020102010

Overview

The Victron Lynx Power In is a modular DC busbar designed to serve as the primary connection hub for batteries, loads, and chargers within the Victron Lynx DC distribution system. It consolidates positive and negative DC connections into a single, organised unit, simplifying installation and improving system reliability.

Available in both M8 and M10 variants, the Lynx Power In is engineered for high current applications and is compatible with a broad range of battery voltages. It forms the core entry point for DC power into the Lynx distribution ecosystem.

Key Features

Modular DC Busbar

• Positive and negative busbars for centralised connection
• Four DC connection points for batteries, loads, or chargers
• Separate ground connection

Electrical Specifications

• Voltage range: 9 – 60 V DC
• Current rating: 1000 A

Construction & Design

• Busbar material: tinned copper
• Busbar dimensions: 8 × 30 mm
• Enclosure material: ABS
• Enclosure dimensions (H × W × D): 290 × 170 × 80 mm
• Unit weight: 2.1 kg

Environmental & Protection Rating

• Operating temperature range: -40 °C to +60 °C
• Storage temperature range: -40 °C to +60 °C
• Protection class: IP22 (indoor use)
