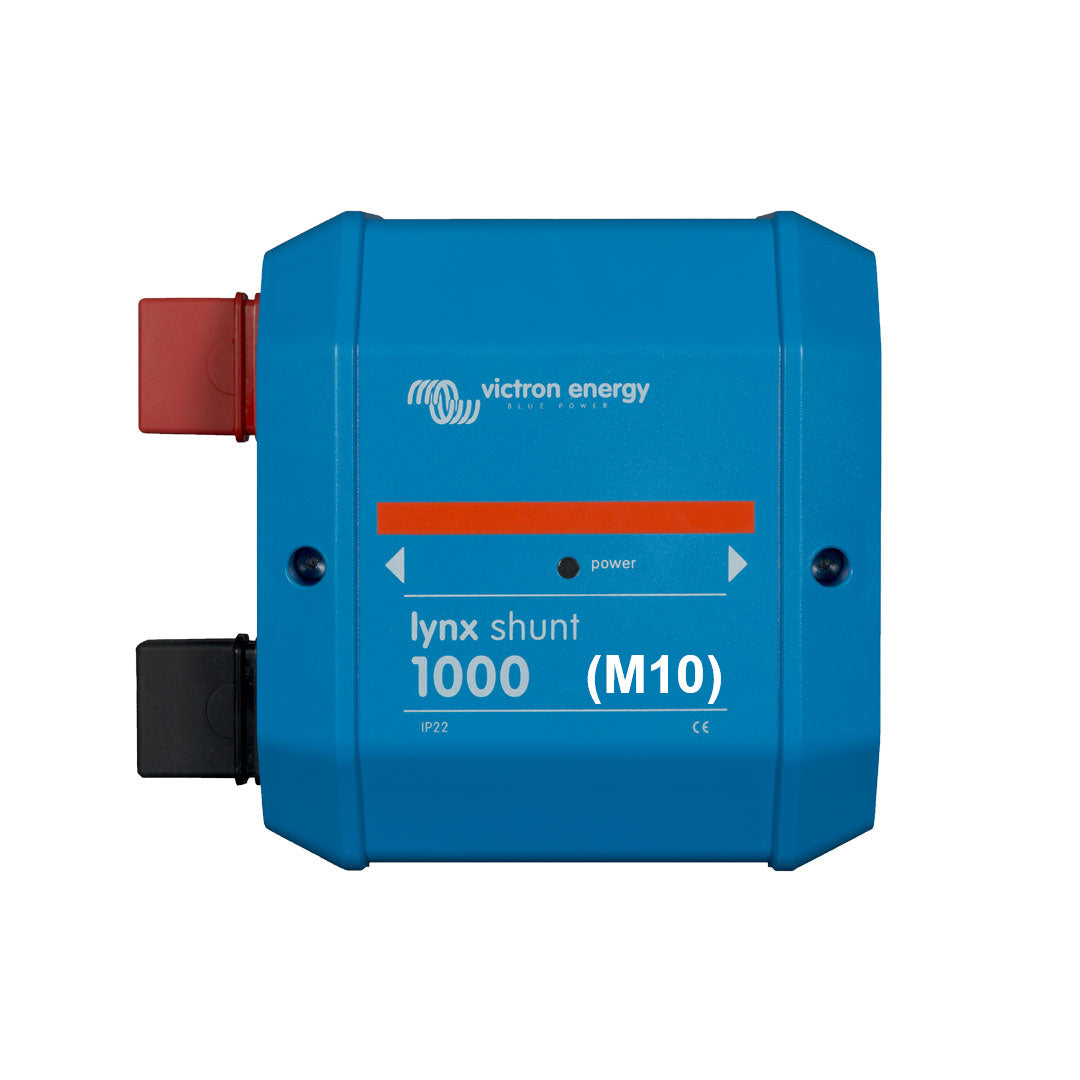

Victron Lynx Shunt VE.Can (M10) - LYN040102110

Overview

The Victron Lynx Shunt VE.Can is a high-current 1000A intelligent shunt with an integrated battery monitor and fuse holder, designed as a core component of the Victron Lynx modular DC distribution system. It provides accurate state of charge monitoring while serving as a central connection point for battery systems.

By communicating directly with Victron GX devices via VE.Can, the Lynx Shunt VE.Can enables centralised system monitoring without the need for a separate battery monitor. Its robust design and modular compatibility make it ideal for residential, commercial and off-grid energy storage systems.

Key Features

Integrated Battery Monitoring

• Built-in 1000A shunt with high-accuracy battery monitoring
• Tracks state of charge, current and energy usage
• Data displayed via GX devices such as Cerbo GX

Lynx Modular System Integration

• Positive and negative busbars integrated into one unit
• Designed to interconnect with other Lynx distribution modules
• Centralised and clean DC system layout

Fuse Flexibility

• Integrated holder for main system fuse (fuse sold separately)
• M8 model designed for CNN fuses
• M10 model supports CNN, ANL and Mega fuses
• M10 version includes a replaceable busbar to allow external fuse placement

VE.Can Communication

• Communicates with GX devices via VE.Can
• Includes two RJ45 VE.Can terminators
• Ensures reliable system-wide data communication

Status Indication

• Integrated power LED for operational status indication
• Quick visual confirmation of device activity
