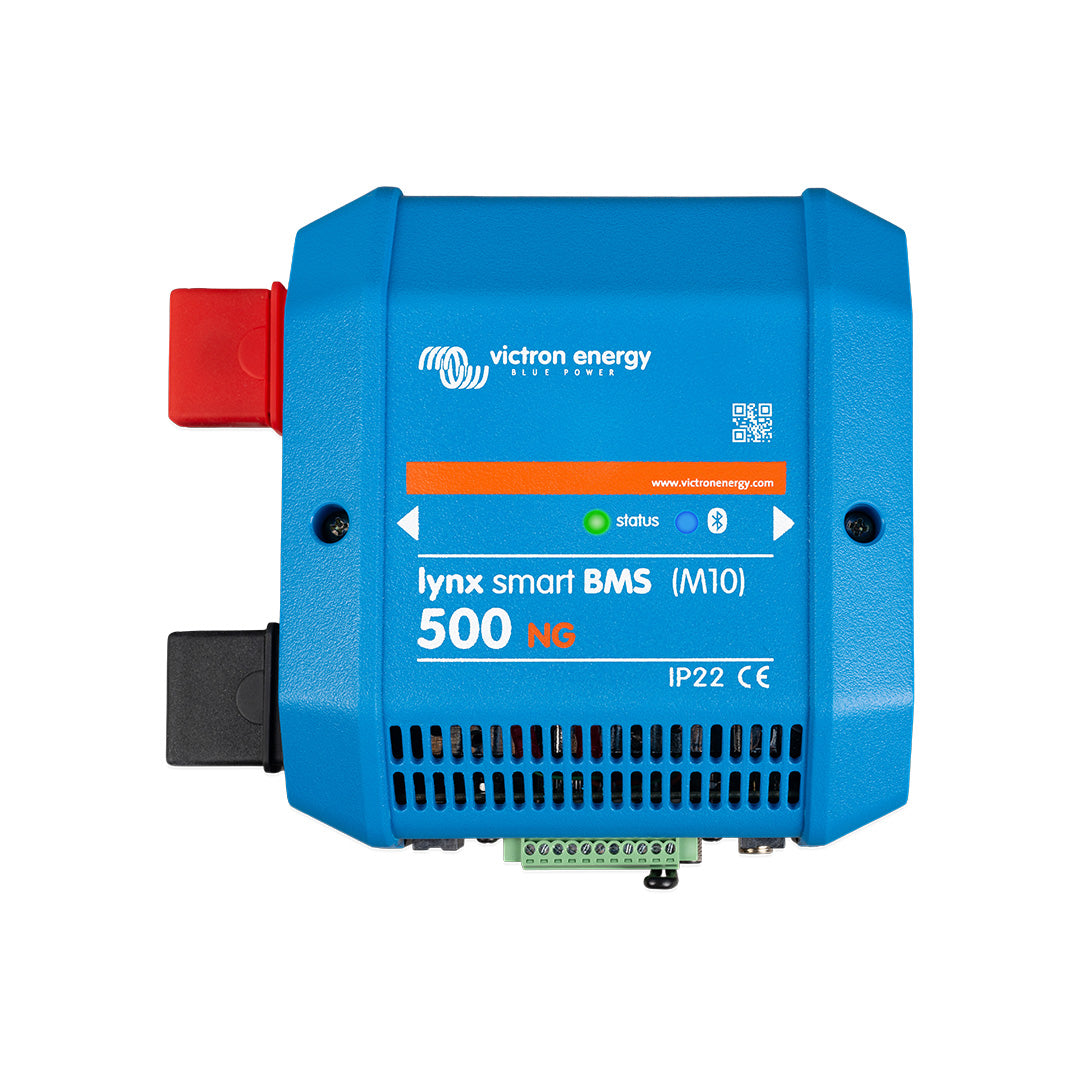

Victron Lynx Smart BMS 500 NG (M10) - LYN034160310

Victron Lynx Smart BMS 500 NG (M10) - LYN034160310

Please sign in to see pricing
  • Advanced BMS for Lithium NG – designed exclusively for Victron Lithium NG batteries
  • Integrated main contactor – available in 500A (M10) and 1000A (M10) versions
  • Built-in pre-charge circuit – protects inverters from high inrush currents
  • Comprehensive monitoring & control – Bluetooth, VE.Can, GX and VRM integration
  • Highly scalable & redundant – parallel up to 5 BMS units for large systems
  • Lynx M10 compatible – seamless integration with Lynx Distributor system
View full details
  • Description
  • Downloads

Description

Overview

The Victron Lynx Smart BMS NG is the most feature-rich and complete Battery Management System available for Victron Lithium NG (LiFePO₄) batteries. Designed as a core component of the Lynx M10 modular distribution system, it delivers advanced battery protection, system control and real-time monitoring for demanding energy storage applications.

Available in 500A (M10) and 1000A (M10) variants, the Lynx Smart BMS NG supports large-scale battery banks configured for 12V, 24V or 48V systems. With built-in redundancy, pre-charge circuitry and deep integration with GX devices, VictronConnect and the VRM portal, it is ideally suited for residential, commercial, marine and off-grid energy storage systems.

Key Features

Integrated Main Contactor & Pre-Charge

  • Built-in 500A or 1000A contactor for primary battery isolation
  • Acts as a secondary safety system if ATC, ATD or DVCC controls fail
  • Can be used as a remotely controlled main system switch
  • Integrated pre-charge circuit prevents inverter inrush currents
  • Eliminates the need for external pre-charge devices

Advanced Monitoring & Diagnostics

  • Built-in battery monitor with real-time SoC, voltage and current
  • Cell voltage and temperature monitoring
  • Historical data, system status and alarms
  • Instant Readout for diagnostics at a glance

Bluetooth, VE.Can & GX Integration

  • Bluetooth Smart monitoring via VictronConnect
  • VE.Can communication with GX devices such as Cerbo GX and Ekrano GX
  • Full system visibility through the VRM portal
  • NMEA 2000 integration for marine systems (optional cable required)

DVCC, ATC & ATD Control

  • Closed-loop DVCC control via a connected GX device
  • Automatic control of compatible inverter/chargers and solar chargers
  • ATC/ATD contacts for controlling third-party chargers and loads

Programmable Relay & AUX Power

  • Programmable relay for alarms or alternator control
  • Alternator ATC mode ensures safe alternator disconnection
  • Onboard AUX power output (1.1A @ system voltage)
  • Supports powering critical loads such as GX devices after shutdown

Lynx Distributor Fuse Monitoring

  • Monitors fuse status of up to four connected Lynx Distributors
  • Instant alarms for blown fuses via GX devices or VictronConnect

Scalable & Redundant Architecture

  • Supports up to 50 Lithium NG batteries per system
  • Maximum capacity: 192kWh (12V), 384kWh (24V & 48V)
  • Parallel up to 5 Lynx Smart BMS units for redundancy
  • Each BMS manages its own battery bank for fail-safe operation
