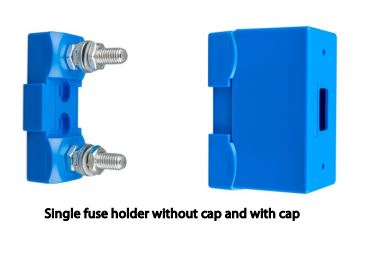

Victron Modular MEGA Fuse holder - CIP100200100

Overview

The Victron Modular MEGA Fuse Holder is a flexible and scalable DC protection and distribution solution designed for high-current battery and inverter systems. Its modular construction and dovetail interlocking feature allow multiple fuse holders to be securely connected, creating a clean and professional installation.

Available with integrated high-current busbar options, this system is well suited for parallel inverter/charger installations and demanding off-grid, marine, and commercial energy systems.

Key Features

Modular Interlocking Design

• Dovetail feature allows multiple fuse holders to interlock
• Scalable layout for expanding DC systems
• Neat and organised cable management

High-Current Busbar Options

• Five-position high-current busbar rated up to 500 A
• Single M10 input connection for 500 A applications
• Six-position high-current busbar rated up to 1500 A
• Dual M10 input connections for extreme high-current systems

Optimised for Victron Inverter Systems

• Recommended for paralleling multiple Multi or Quattro inverter/chargers
• Designed to handle high DC currents safely and efficiently
• Ideal for battery banks, inverter clusters, and DC distribution points

Robust & Professional Construction

• Built for demanding electrical environments
• Supports MEGA fuses for reliable DC circuit protection
• Suitable for marine, off-grid, and commercial installations
