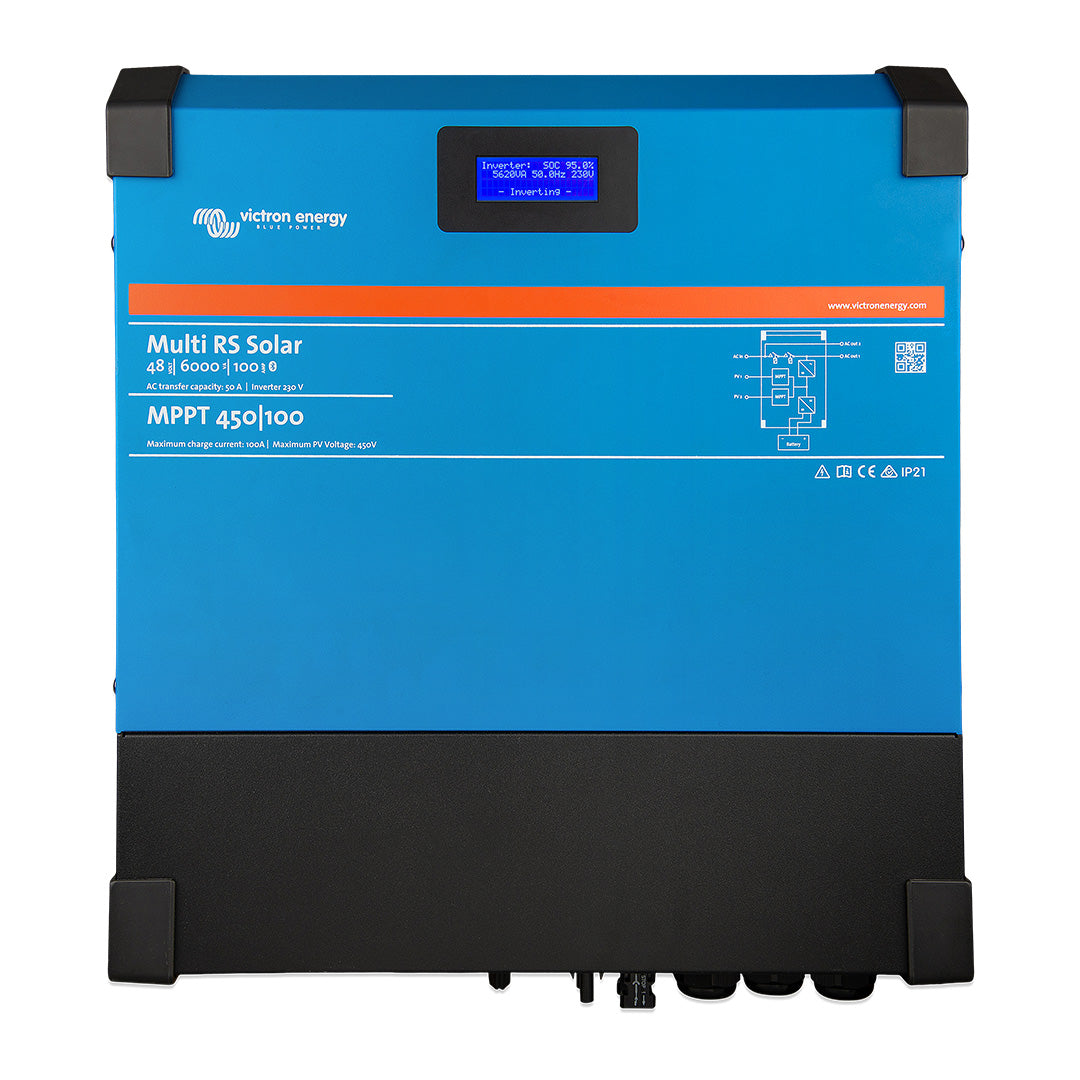

Victron Multi RS Solar 48/6000/100-450/100 2 Trackers - PMR482602020

Overview

The Victron Multi RS Solar 48/6000 is a next-generation solar hybrid inverter/charger designed for advanced residential, off-grid, and backup energy systems. It combines a powerful 6 kVA inverter, battery charger, and dual high-voltage MPPT solar charge controllers into a single compact unit.

Featuring two independent 450 V MPPT trackers (3 kWp each), the Multi RS Solar supports up to 6 kWp of DC-coupled solar directly, with the flexibility to expand further using AC-coupled PV inverters or additional solar chargers. Its high-frequency design delivers excellent efficiency, ultra-quiet operation, and very low standby consumption.

Key Features

Flexible Operating Modes

• Hybrid mode: stores excess solar in batteries for night-time or peak demand use
• Backup mode: automatic supply during grid outages
• Off-grid mode: full standalone operation without grid connection
• Generator mode: intelligent generator control to minimise run hours

PowerControl & PowerAssist

• Limits grid or generator current to prevent overload
• Uses excess capacity for battery charging (PowerControl)
• Supplements peak loads with battery power when required (PowerAssist)

Integrated Solar & Expandability

• 2 × independent MPPT inputs, up to 6 kWp total DC-coupled PV
• High-voltage PV input up to 450 V
• Expandable via additional DC solar chargers
• Supports AC-coupled PV inverters with frequency shift power control

Monitoring & Connectivity

• Integrated display showing battery, inverter, and solar data
• Bluetooth connectivity for VictronConnect app access
• VE.Can connection to GX devices for system monitoring and VRM
• VE.Direct connection for GlobalLink 520 remote monitoring

I/O & System Integration

• Programmable relay output
• Battery temperature sensor input
• Voltage sense input for improved charge accuracy
